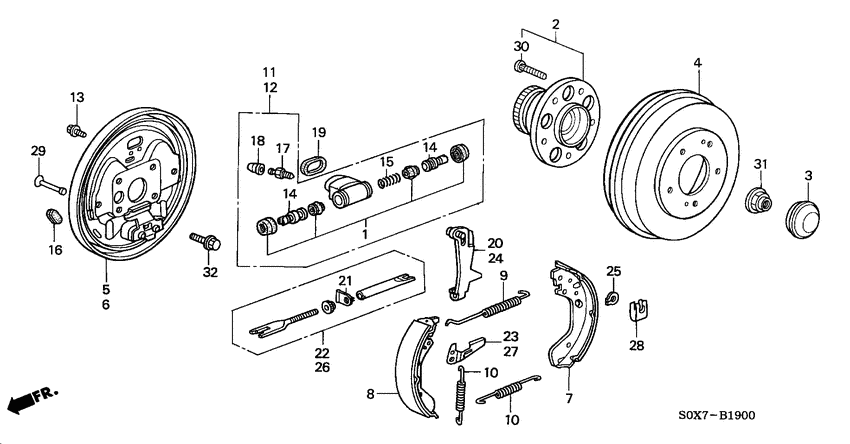

Rear brake (DRUM) Diagram Honda ODYSSEY
- Year
- 2000
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 4AT
- Number of doors
- 5
- grade
- EXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01433-S0X-000 Cylinder setRR. WHEEL |
01433-S0X-000 |
US $18.56 |
||
|
2
|
2
42200-S0X-A51 Bearing assyRR. HUB UNIT |
42200-S0X-A51 |
US $209.92 |
||
|
3
|
3
42326-ST7-Z00
Cap
|
42326-ST7-Z00 |
— | ||
| replacement | |||||
|
3
|
3
42326-SLJ-000 Cap, Hub unit |
42326-SLJ-000 |
from US $4.65 |
||
|
4
|
4
42610-S0X-010 DrumRR. BRAKE |
42610-S0X-010 |
US $207.36 |
||
|
5
|
5
43110-S0X-013
Plate comp
|
43110-S0X-013 |
— | ||
|
6
|
6
43120-S0X-013
Plate comp
|
43120-S0X-013 |
— | ||
|
7
|
7
43153-S0X-013
Shoe comp. a
|
43153-S0X-013 |
— | ||
|
8
|
8
43154-S0X-013
Shoe comp. b
|
43154-S0X-013 |
— | ||
|
9
|
9
43171-S0X-003
Spring a
|
43171-S0X-003 |
— | ||
|
10
|
10
43172-S0X-003
Spring b
|
43172-S0X-003 |
— | ||
|
11
|
11
43300-S0X-003
Cylinder assy.
|
43300-S0X-003 |
— | ||
|
12
|
12
43301-S0X-003 Cylinder assy.L. RR. WHEEL |
43301-S0X-003 |
US $80.64 |
||
|
13
|
13
43305-S0X-003 BoltFLANGE, 6MM |
43305-S0X-003 |
US $3.15 |
||
|
14
|
14
43321-S0X-003 PistonWHEEL CYLINDER |
43321-S0X-003 |
US $13.57 |
||
|
15
|
15
43323-S0X-003
Spring
|
43323-S0X-003 |
— | ||
|
16
|
16
43345-S0X-003
Plug
|
43345-S0X-003 |
— | ||
|
17
|
17
43352-S0X-A01
Screw
|
43352-S0X-A01 |
— | ||
|
18
|
18
43353-S0X-003
Cap
|
43353-S0X-003 |
— | ||
|
19
|
19
43354-S0X-003
Seal
|
43354-S0X-003 |
— | ||
|
20
|
20
43360-S0X-003 Lever compR. PARKING BRAKE |
43360-S0X-003 |
US $14.98 |
||
|
21
|
21
43365-S0X-003
Clip
|
43365-S0X-003 |
— | ||
|
22
|
22
43367-S0X-003
Adjuster assy
|
43367-S0X-003 |
— | ||
|
23
|
23
43368-S0X-003
Lever
|
43368-S0X-003 |
— | ||
|
24
|
24
43370-S0X-003 Lever compL. PARKING BRAKE |
43370-S0X-003 |
US $14.98 |
||
|
25
|
25
43375-S0X-003 RingRETAINING |
43375-S0X-003 |
US $2.24 |
||
|
26
|
26
43377-S0X-003
Adjuster assy
|
43377-S0X-003 |
— | ||
|
27
|
27
43378-S0X-003
Lever
|
43378-S0X-003 |
— | ||
|
28
|
28
45172-S0X-003
Spring
|
45172-S0X-003 |
— | ||
|
29
|
29
45175-S0X-013 PinTENSION |
45175-S0X-013 |
US $3.15 |
||
|
30
|
30
90113-SD4-902 BoltWHEEL (SAGA) |
90113-SD4-902 |
US $4.88 |
||
|
30
|
30
90113-S84-901 BoltWHEEL (ROCKNEL FASTENER) |
90113-S84-901 |
from US $3.08 |
||
|
31
|
31
90305-S0X-003 NutSPINDLE(24MM) |
90305-S0X-003 |
US $6.16 |
||
|
32
|
32
91770-S0X-000
Bolt
|
91770-S0X-000 |
— | ||
