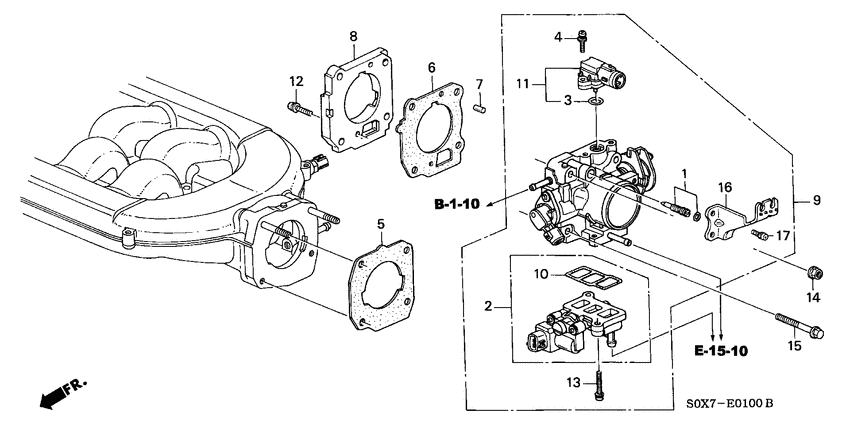

Throttle body (-'01) Diagram Honda ODYSSEY
- Year
- 2000
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 4AT
- Number of doors
- 5
- grade
- EXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-P2M-A01 Screw set |
16016-P2M-A01 |
US $6.58 |
||
|
2
|
2
16022-P8A-A02
Valve set
|
16022-P8A-A02 |
— | ||
|
3
|
3
16075-P07-000 O-ring |
16075-P07-000 |
from US $3.44 |
||
|
4
|
4
16080-P07-000 Screw-washer4X16 |
16080-P07-000 |
from US $2.37 |
||
|
5
|
5
16176-P8F-A01 GasketTHROTTLE BODY |
16176-P8F-A01 |
from US $5.18 |
||
|
6
|
6
16177-P8F-A01 Gasket bTHROTTLE BODY (NIPPON LEAKLESS) |
16177-P8F-A01 |
from US $5.18 |
||
|
7
|
7
16401-P8A-A00 Pin |
16401-P8A-A00 |
US $2.03 |
||
|
8
|
8
16402-P8F-A00
Spacer
|
16402-P8F-A00 |
— | ||
|
9
|
9
16410-P8F-A01 Body sub assy.THROTTLE (GY35A) |
16410-P8F-A01 |
US $1,067.52 |
||
|
10
|
10
16456-P8A-A01 GasketROTARY AIR CONTROL VALVE |
16456-P8A-A01 |
from US $4.74 |
||
|
11
|
11
37830-PAA-S00 Sensor setMAP |
37830-PAA-S00 |
US $376.72 |
||
|
12
|
12
93892-050-181-8 Screw-washer5X18 |
93892-050-181-8 |
US $0.44 |
||
|
13
|
13
93892-050-250-8 Screw-washer5X25 |
93892-050-250-8 |
from US $0.52 |
||
|
14
|
14
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
15
|
15
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
