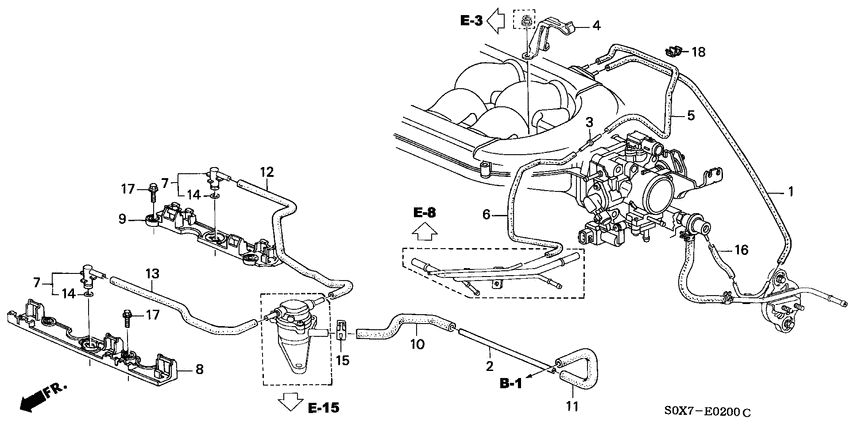

Tubing (-'01) Diagram Honda ODYSSEY
- Year
- 2000
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 4AT
- Number of doors
- 5
- grade
- EXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17114-P8F-A00
Tube
|
17114-P8F-A00 |
— | ||
|
2
|
2
17410-P8F-A00 PipeAIR ASSIST VALVE |
17410-P8F-A00 |
US $3.36 |
||
|
3
|
3
17414-PC6-660 JointTWO WAY (3.5) |
17414-PC6-660 |
from US $2.45 |
||
|
4
|
4
36182-P8F-A00
Stay
|
36182-P8F-A00 |
— | ||
|
5
|
5
36183-P8F-A00
Tube a
|
36183-P8F-A00 |
— | ||
|
6
|
6
36184-P8F-A00
Tube b
|
36184-P8F-A00 |
— | ||
|
7
|
7
36202-P8F-A00 Joint setAIR ASSIST |
36202-P8F-A00 |
US $10.36 |
||
|
8
|
8
36283-P8F-A00
Holder comp
|
36283-P8F-A00 |
— | ||
|
9
|
9
36284-P8F-A00
Holder comp
|
36284-P8F-A00 |
— | ||
|
10
|
10
36286-P8F-A00
Tube a
|
36286-P8F-A00 |
— | ||
|
11
|
11
36287-P8F-A00
Tube b
|
36287-P8F-A00 |
— | ||
|
12
|
12
36288-P8F-A00
Tube
|
36288-P8F-A00 |
— | ||
|
13
|
13
36289-P8F-A00
Tube
|
36289-P8F-A00 |
— | ||
|
14
|
14
91301-P0A-000 O-ring8.7X1.3 |
91301-P0A-000 |
US $1.33 |
||
|
15
|
15
91405-P8E-A01 ClampTUBE (D15) |
91405-P8E-A01 |
US $2.80 |
||
|
16
|
16
95005-350-901-0 Tube3.5X90(95005-35001-10M) |
95005-350-901-0 |
US $1.18 |
||
|
17
|
17
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
