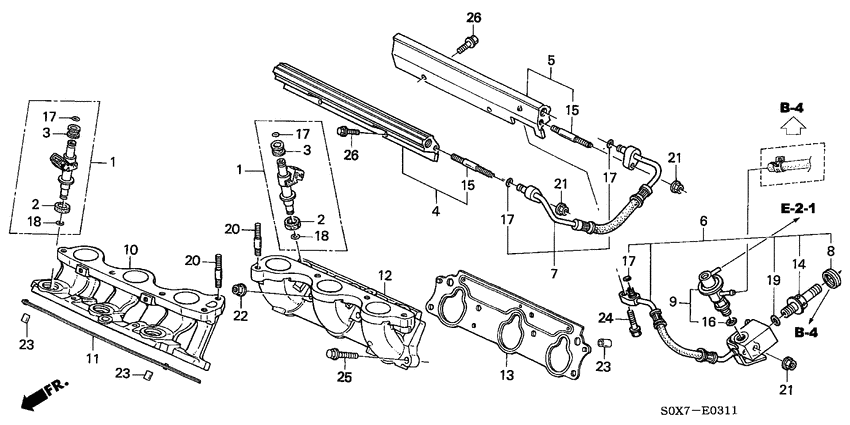

Fuel injector ('02-) Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P8E-A00 Packing setINJECTOR |
06164-P8E-A00 |
US $167.68 |
||
|
2
|
2
16472-P0H-A01 Seal ringINJECTOR (NOK) |
16472-P0H-A01 |
US $22.07 |
||
| replacement | |||||
|
2
|
2
16472-PH7-003 Seal ringINJECTOR (OTSUKA) |
16472-PH7-003 |
from US $4.45 |
||
|
2
|
2
16472-PH7-003 Seal ringINJECTOR (OTSUKA) |
16472-PH7-003 |
from US $4.45 |
||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $9.15 |
||
| replacement | |||||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $4.88 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $4.88 |
||
|
4
|
4
16610-P8E-A00 Pipe compFR. FUEL |
16610-P8E-A00 |
US $121.60 |
||
|
5
|
5
16620-P8E-A00
Pipe comp
|
16620-P8E-A00 |
— | ||
|
6
|
6
16722-P8E-A01 Hose comp. bFUEL FEED |
16722-P8E-A01 |
US $73.60 |
||
|
7
|
7
16728-P8E-A01
Hose comp. b
|
16728-P8E-A01 |
— | ||
|
8
|
8
16729-P8A-A01 RingFUEL BOLT |
16729-P8A-A01 |
US $3.29 |
||
|
9
|
9
16740-PGK-A01 Regulator assyPRESSURE |
16740-PGK-A01 |
US $138.24 |
||
|
10
|
10
17050-PGE-A01 BaseFR. INJECTOR |
17050-PGE-A01 |
US $174.08 |
||
|
11
|
11
17055-P8E-A01 GasketFR. INJECTOR BASE |
17055-P8E-A01 |
from US $25.56 |
||
|
12
|
12
17060-PGE-A01 BaseRR. INJECTOR |
17060-PGE-A01 |
US $174.08 |
||
|
13
|
13
17065-P8E-A01 GasketRR. INJECTOR BASE |
17065-P8E-A01 |
from US $25.56 |
||
|
14
|
14
90025-P8A-A02 BoltSEALING, 12MM |
90025-P8A-A02 |
US $10.22 |
||
|
15
|
15
90041-PCA-000 BoltSTUD, 6X32 |
90041-PCA-000 |
US $1.33 |
||
|
16
|
16
91301-PM5-A01 O-ring9.8X1.9 |
91301-PM5-A01 |
from US $1.40 |
||
|
17
|
17
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $4.39 |
||
| replacement | |||||
|
17
|
17
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
17
|
17
91301-PM7-003 O-ring7.3X2.2 (ARAI) |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
17
|
17
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $4.39 |
||
| replacement | |||||
|
17
|
17
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
17
|
17
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
18
|
18
91302-PCA-000 O-ring6.95X1.7 |
91302-PCA-000 |
from US $2.86 |
||
|
19
|
19
91303-P8A-A01 O-ring13.3X1.9 |
91303-P8A-A01 |
US $3.29 |
||
|
20
|
20
92900-08100-1B BoltSTUD, 8X100 |
92900-08100-1B |
US $1.48 |
||
|
21
|
21
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.50 |
||
|
22
|
22
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
23
|
23
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.14 |
||
|
24
|
24
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
25
|
25
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
|
26
|
26
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.62 |
||
