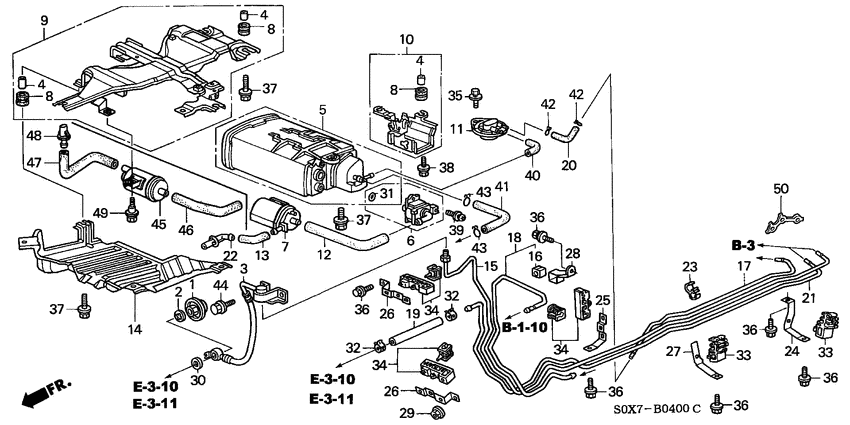

Fuel pipe Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16680-PE7-661
Damper assy.
|
16680-PE7-661 |
— | ||
| replacement | |||||
|
1
|
1
16680-PCX-003 Damper assy.PULSATION |
16680-PCX-003 |
US $49.37 |
||
|
2
|
2
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.37 |
||
|
3
|
3
16720-P8F-A02
Hose comp. a
|
16720-P8F-A02 |
— | ||
|
4
|
4
16923-S84-A00 CollarDISTANCE |
16923-S84-A00 |
US $2.10 |
||
|
5
|
5
17011-S0X-A00 Canister assy |
17011-S0X-A00 |
US $177.92 |
||
|
6
|
6
17310-S84-A02
Valve
|
17310-S84-A02 |
— | ||
|
6
|
6
17310-S0X-A02
Valve
|
17310-S0X-A02 |
— | ||
|
8
|
8
17322-S84-A00 RubberCANISTER MOUNTING |
17322-S84-A00 |
US $1.61 |
||
|
9
|
9
17358-S0X-A50 BracketCANISTER |
17358-S0X-A50 |
US $75.52 |
||
|
10
|
10
17360-S0X-J00
Stay
|
17360-S0X-J00 |
— | ||
|
11
|
11
17371-SR3-003
Valve
|
17371-SR3-003 |
— | ||
|
14
|
14
17578-S0X-A01 CoverCANISTER |
17578-S0X-A01 |
US $64 |
||
|
15
|
15
17700-S0X-A00
Pipe comp
|
17700-S0X-A00 |
— | ||
|
17
|
17
17720-S0X-A00 PipeFUEL VENT |
17720-S0X-A00 |
US $36.86 |
||
|
18
|
18
17721-S0X-A01
Pipe
|
17721-S0X-A01 |
— | ||
|
19
|
19
17723-S0X-A00
Hose
|
17723-S0X-A00 |
— | ||
|
20
|
20
17725-S0X-J01
Tube f
|
17725-S0X-J01 |
— | ||
|
21
|
21
17740-S0X-A01
Pipe
|
17740-S0X-A01 |
— | ||
|
23
|
23
17759-S0X-A00 ClampVENT PIPE |
17759-S0X-A00 |
US $2.24 |
||
|
24
|
24
17761-S0X-A00
Stay a
|
17761-S0X-A00 |
— | ||
|
25
|
25
17762-S0X-A00
Stay b
|
17762-S0X-A00 |
— | ||
|
26
|
26
17763-S0X-A00
Stay c
|
17763-S0X-A00 |
— | ||
|
27
|
27
17765-S0X-A00
Stay e
|
17765-S0X-A00 |
— | ||
|
29
|
29
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
from US $1.47 |
||
|
30
|
30
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2 |
||
|
31
|
31
91391-S84-A00 O-ring |
91391-S84-A00 |
US $3.29 |
||
|
32
|
32
91409-SZ3-003 ClampFUEL TUBE (D10.5) |
91409-SZ3-003 |
US $1.61 |
||
|
33
|
33
91595-S0X-A01 Clamp eFUEL PIPE |
91595-S0X-A01 |
US $6.16 |
||
|
34
|
34
91596-S0X-A01 Clamp fFUEL PIPE |
91596-S0X-A01 |
US $6.16 |
||
|
35
|
35
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
36
|
36
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
37
|
37
93405-060-250-4 Bolt-washer6X25 |
93405-060-250-4 |
US $0.74 |
||
|
38
|
38
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
39
|
39
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
40
|
40
95001-551-056-0 TubeFUEL, 5.5X105 (95001-55001-60M) |
95001-551-056-0 |
US $1.63 |
||
|
41
|
41
95001-752-006-0 TubeFUEL, 7.5X200 (95001-75001-60M) |
95001-752-006-0 |
US $2.81 |
||
|
42
|
42
91401-SDC-000 ClipTUBE(B10) |
91401-SDC-000 |
US $0.91 |
||
|
43
|
43
91402-SDC-000 ClipTUBE(B12) |
91402-SDC-000 |
US $0.91 |
||
|
44
|
44
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
||
|
45
|
45
17315-S0X-J51 FilterCANISTER |
17315-S0X-J51 |
US $59.01 |
||
|
46
|
46
17372-S0X-A50
Tube
|
17372-S0X-A50 |
— | ||
|
47
|
47
17374-S0X-A50
Tube
|
17374-S0X-A50 |
— | ||
|
48
|
48
17743-S0X-A51 JointCANISTER FILTER TUBE |
17743-S0X-A51 |
US $5.46 |
||
|
49
|
49
90671-S5A-003 BoltFR. FENDER |
90671-S5A-003 |
US $2.59 |
||
|
50
|
50
17758-S0X-J51 RubberFUEL PIPE |
17758-S0X-J51 |
US $5.60 |
||
