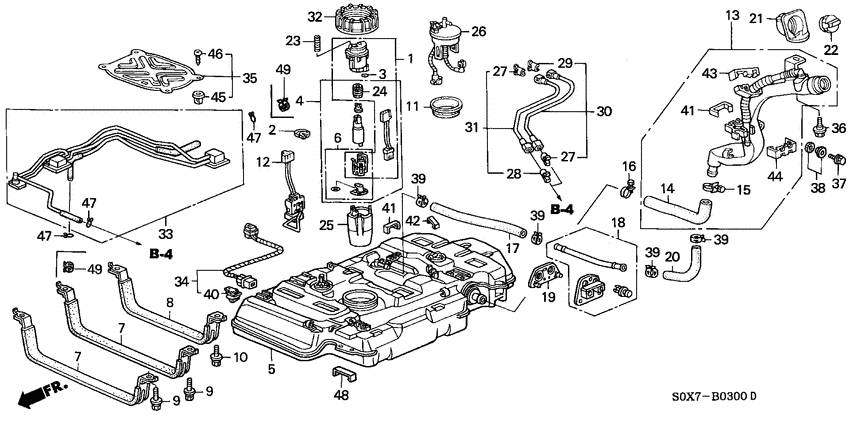

Fuel tank Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-S0X-A02
Strainer set
|
16010-S0X-A02 |
— | ||
|
2
|
2
16711-S84-A01 RubberFUEL PUMP INSULATOR |
16711-S84-A01 |
from US $2.87 |
||
|
3
|
3
16715-S0X-A01 O-ring |
16715-S0X-A01 |
from US $3.29 |
||
|
4
|
4
17040-S0X-A30 Pump setFUEL |
17040-S0X-A30 |
US $565.76 |
||
|
5
|
5
17500-S0X-J02
Tank comp.
|
17500-S0X-J02 |
— | ||
|
6
|
6
17516-S0X-A01 Filter setFUEL PUMP |
17516-S0X-A01 |
from US $38.27 |
||
|
7
|
7
17521-S0X-A01 BandFUEL TANK MOUNTING |
17521-S0X-A01 |
US $38.78 |
||
|
8
|
8
17522-S0X-A01 BandFUEL TANK MOUNTING |
17522-S0X-A01 |
US $38.78 |
||
|
9
|
9
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $2.15 |
||
|
10
|
10
17525-S0X-A00 Bolt-washer10X25 |
17525-S0X-A00 |
US $2.60 |
||
|
11
|
11
17574-S1A-E01
Packing
|
17574-S1A-E01 |
— | ||
| replacement | |||||
|
11
|
11
17574-S0X-A01 PackingBASE |
17574-S0X-A01 |
from US $8.26 |
||
|
12
|
12
17630-S0X-A03 Meter compFUEL |
17630-S0X-A03 |
US $52.74 |
||
|
13
|
13
17650-S0X-J02 Pipe assy.FUEL FILLER |
17650-S0X-J02 |
US $104.96 |
||
|
14
|
14
17651-S0X-A02
Tube
|
17651-S0X-A02 |
— | ||
|
15
|
15
17652-SDA-T01 ClipFILLER TUBE |
17652-SDA-T01 |
US $2.59 |
||
|
16
|
16
17652-SEB-003 ClipFILLER TUBE |
17652-SEB-003 |
US $3.71 |
||
|
17
|
17
17653-S0X-A01
Tube a
|
17653-S0X-A01 |
— | ||
|
18
|
18
17655-S0X-J01
Pipe comp
|
17655-S0X-J01 |
— | ||
|
19
|
19
17656-S0X-A01 PackingFUEL JOINT PIPE |
17656-S0X-A01 |
US $13.30 |
||
|
20
|
20
17658-S0X-A01
Tube
|
17658-S0X-A01 |
— | ||
|
21
|
21
17662-S50-013 PackingFUEL FILLER |
17662-S50-013 |
US $12.88 |
||
|
22
|
22
17670-S0X-J01 Cap comp.FUEL FILLER (TOYODA) |
17670-S0X-J01 |
US $27.14 |
||
|
23
|
23
17703-S0X-A51
Spring
|
17703-S0X-A51 |
— | ||
|
24
|
24
17705-S0X-A01 Grommet |
17705-S0X-A01 |
from US $7.56 |
||
|
25
|
25
17706-S0X-A01 Reservoir |
17706-S0X-A01 |
from US $57.73 |
||
|
26
|
26
17709-S0X-A51 Flange assy |
17709-S0X-A51 |
US $143.36 |
||
|
27
|
27
17711-S0X-931 RetainerBLUE GREEN) (TOKAI |
17711-S0X-931 |
from US $4.44 |
||
|
28
|
28
17711-S0X-A31 RetainerGREEN)(TOKAI |
17711-S0X-A31 |
from US $4.44 |
||
|
29
|
29
17711-S0X-003 RetainerORANGE) (TOKAI |
17711-S0X-003 |
from US $3.58 |
||
|
30
|
30
17714-S0X-023
Tube comp
|
17714-S0X-023 |
— | ||
|
31
|
31
17715-S0X-023
Tube comp
|
17715-S0X-023 |
— | ||
|
32
|
32
17719-S1A-E01 NutFUEL PUMP MODULE LOCK |
17719-S1A-E01 |
from US $14.72 |
||
|
33
|
33
17731-S0X-J04
Tube comp. c
|
17731-S0X-J04 |
— | ||
|
34
|
34
32170-S0X-A00 CordFUEL UNIT |
32170-S0X-A00 |
US $21.25 |
||
|
35
|
35
74660-S0X-A00ZZ
Cap assy.
|
74660-S0X-A00ZZ |
— | ||
|
36
|
36
90109-SE0-003 Bolt bBUMPER |
90109-SE0-003 |
US $2.37 |
||
|
37
|
37
90149-S50-003 BoltEARTH, 6X16 |
90149-S50-003 |
US $1.54 |
||
|
38
|
38
90540-SA7-000 WasherBUMPER |
90540-SA7-000 |
from US $1.47 |
||
|
39
|
39
91417-SZ3-003 ClampFUEL TUBE (D20) (CHUO HATSUJO) |
91417-SZ3-003 |
from US $3.28 |
||
|
40
|
40
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $2.74 |
||
|
41
|
41
91591-S1A-E01 CapFUEL PIPE CLAMP |
91591-S1A-E01 |
US $3.36 |
||
|
42
|
42
91592-S0X-A31 CapFUEL TUBE CLAMP |
91592-S0X-A31 |
US $3.36 |
||
|
43
|
43
91597-S0X-A31 CapFUEL FILLER PIPE CLAMP |
91597-S0X-A31 |
US $5.32 |
||
|
44
|
44
91598-S0X-A31 CapFUEL FILLER PIPE CLAMP |
91598-S0X-A31 |
US $3.36 |
||
|
45
|
45
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
US $1.55 |
||
|
46
|
46
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
47
|
47
91401-SDC-000 ClipTUBE(B10) |
91401-SDC-000 |
US $0.91 |
||
|
48
|
48
91591-S0X-A51 CapFUEL PIPE CLAMP |
91591-S0X-A51 |
US $3.92 |
||
|
49
|
49
91404-SDC-000 ClampTUBE (D10) |
91404-SDC-000 |
US $1.33 |
||
