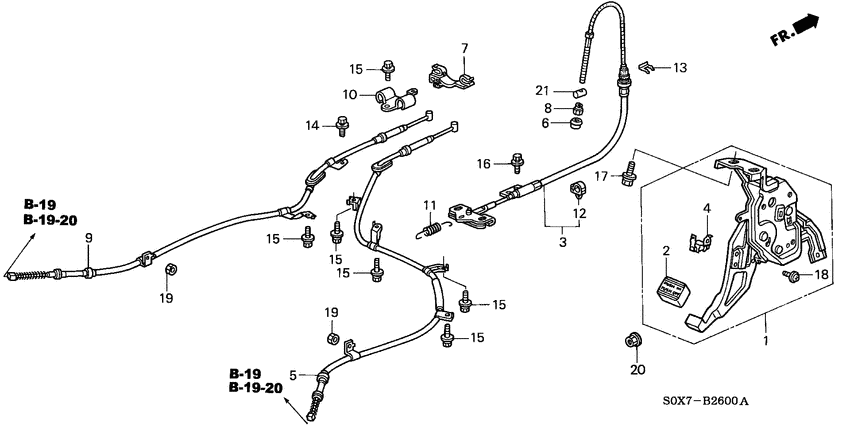

Parking brake Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47100-S0X-023
Pedal assy
|
47100-S0X-023 |
— | ||
|
2
|
2
47120-S0X-003 PadPEDAL |
47120-S0X-003 |
US $5.04 |
||
|
3
|
3
47210-S0X-023
Wire a
|
47210-S0X-023 |
— | ||
|
4
|
4
47342-SV4-003
Switch
|
47342-SV4-003 |
— | ||
|
5
|
5
47520-S0X-A01
Wire b
|
47520-S0X-A01 |
— | ||
|
6
|
6
47525-S47-003 CapADJUSTING NUT |
47525-S47-003 |
US $1.82 |
||
|
7
|
7
47534-S0X-003 ClipBRAKE WIRE |
47534-S0X-003 |
US $4.20 |
||
|
8
|
8
47538-SD4-980 NutADJUSTING |
47538-SD4-980 |
US $3.29 |
||
|
9
|
9
47560-S0X-A01
Wire b
|
47560-S0X-A01 |
— | ||
|
10
|
10
47572-S0X-010 Base comp.WIRE GUIDE |
47572-S0X-010 |
US $3.78 |
||
|
11
|
11
47574-S0X-000
Spring
|
47574-S0X-000 |
— | ||
|
12
|
12
90650-SD9-003 ClipWIRE HARNESS |
90650-SD9-003 |
from US $1.61 |
||
|
13
|
13
90651-SV1-A01 ClipBRAKE HOSE |
90651-SV1-A01 |
US $3.34 |
||
|
14
|
14
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
15
|
15
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
16
|
16
93403-080-250-8 Bolt-washer8X25 |
93403-080-250-8 |
from US $0.81 |
||
|
17
|
17
93406-080-160-8 Bolt-washer8X16 |
93406-080-160-8 |
from US $0.67 |
||
|
18
|
18
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
19
|
19
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
US $0.44 |
||
| replacement | |||||
|
19
|
19
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
20
|
20
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
21
|
21
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
