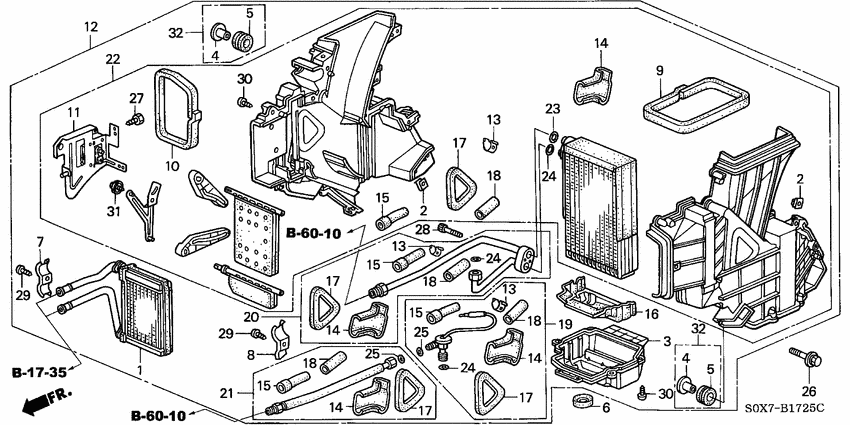

Rear heater unit Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79110-S0X-A51 Core compHEATER |
79110-S0X-A51 |
US $336.64 |
||
|
2
|
2
79191-SZ3-A01 NutHOLDER |
79191-SZ3-A01 |
US $1.82 |
||
|
3
|
3
79201-S0X-A51 CaseLOWER |
79201-S0X-A51 |
US $16.77 |
||
|
4
|
4
79202-S0X-A51 Collar |
79202-S0X-A51 |
US $3.85 |
||
|
5
|
5
79203-S0X-A51 Bush |
79203-S0X-A51 |
US $3.85 |
||
|
6
|
6
79205-S0X-A00 GrommetDRAIN |
79205-S0X-A00 |
US $3.78 |
||
|
7
|
7
79205-S0X-A51 Clamp a |
79205-S0X-A51 |
US $6.16 |
||
|
8
|
8
79206-S0X-A51 Clamp b |
79206-S0X-A51 |
US $6.16 |
||
|
9
|
9
79209-S0X-A51 PackingA |
79209-S0X-A51 |
US $9.10 |
||
|
10
|
10
79210-S0X-A51 PackingB |
79210-S0X-A51 |
US $6.72 |
||
|
11
|
11
79350-S0X-A51
Motor assy.
|
79350-S0X-A51 |
— | ||
|
12
|
12
79502-S0X-A51 Heater assyRR. |
79502-S0X-A51 |
US $1,272.32 |
||
|
13
|
13
80206-SX0-961 Holder |
80206-SX0-961 |
US $3.78 |
||
|
14
|
14
80215-S0X-A51 InsulatorPIPING |
80215-S0X-A51 |
US $7.14 |
||
|
15
|
15
80216-S0X-A51 Insulator aEXPANSION |
80216-S0X-A51 |
US $8.82 |
||
|
16
|
16
80217-S0X-A51 InsulatorLOWER |
80217-S0X-A51 |
US $8.12 |
||
|
17
|
17
80218-S0X-A51 InsulatorEXPANSION |
80218-S0X-A51 |
US $5.74 |
||
|
18
|
18
80219-S0X-A51 InsulatorPIPING |
80219-S0X-A51 |
US $7.14 |
||
|
19
|
19
80221-S0X-A51
Valve assy.
|
80221-S0X-A51 |
— | ||
|
20
|
20
80222-S0X-A51 Pipe assy. a |
80222-S0X-A51 |
US $53.12 |
||
|
21
|
21
80223-S0X-A51 Pipe assy. b |
80223-S0X-A51 |
US $44.67 |
||
|
22
|
22
80225-S0X-A51 Evaporator assy. |
80225-S0X-A51 |
US $718.08 |
||
|
23
|
23
80871-SN7-003 O-ring5/8" |
80871-SN7-003 |
from US $2.28 |
||
|
24
|
24
80872-SN7-003 O-ring1/2" |
80872-SN7-003 |
from US $2.28 |
||
|
25
|
25
80873-SN7-003 O-ring8MM |
80873-SN7-003 |
from US $1.96 |
||
|
26
|
26
90105-S0X-A00 Bolt-washer6X35 |
90105-S0X-A00 |
US $1.89 |
||
|
27
|
27
90121-SR3-003 ScrewTAPPING, 5X12 |
90121-SR3-003 |
US $1.26 |
||
|
28
|
28
90121-S0X-A01 BoltFLANGE, 5X30 |
90121-S0X-A01 |
US $1.19 |
||
|
29
|
29
90122-SR3-003 ScrewTAPPING, 5X12 |
90122-SR3-003 |
US $1.12 |
||
|
30
|
30
90127-SX0-003 ScrewTAPPING, 4X16 |
90127-SX0-003 |
US $1.05 |
||
|
31
|
31
90133-SR3-003 Screw-washer4X16 |
90133-SR3-003 |
from US $1.12 |
||
|
32
|
32
79204-S0X-A51 Bush assy |
79204-S0X-A51 |
US $7.42 |
