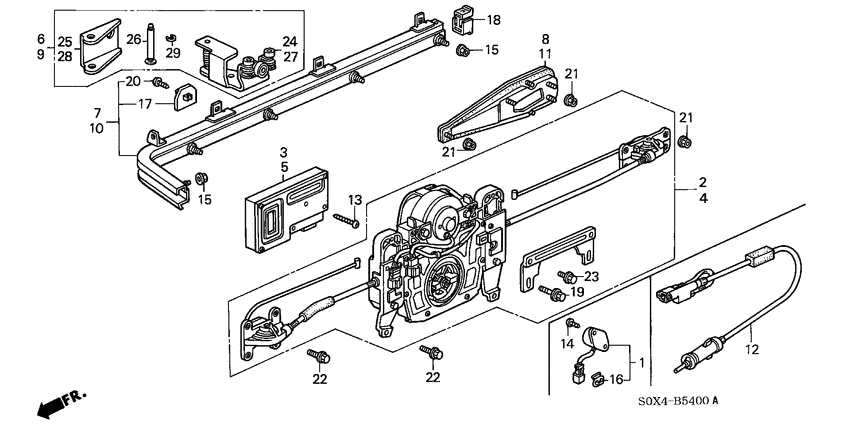

Slide door motors Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39775-S0X-A51
Buzzer
|
39775-S0X-A51 |
— | ||
|
2
|
2
72011-S0X-A02 Motor assy.R. POWER SLIDE DOOR |
72011-S0X-A02 |
US $769.28 |
||
|
3
|
3
72020-S0X-A61 Control unitR. POWER SLIDE DOOR |
72020-S0X-A61 |
US $368.64 |
||
|
4
|
4
72051-S0X-A02 Motor assy.L. POWER SLIDE DOOR |
72051-S0X-A02 |
US $698.88 |
||
|
5
|
5
72060-S0X-A61
Control unit
|
72060-S0X-A61 |
— | ||
|
7
|
7
72540-S0X-A51 Rail assyR. SLIDE DOOR CENTER |
72540-S0X-A51 |
US $112 |
||
|
8
|
8
72547-S0X-A50 Mount assyR. POWER SLIDE DOOR PULLEY |
72547-S0X-A50 |
US $31.36 |
||
|
10
|
10
72580-S0X-A51
Rail assy
|
72580-S0X-A51 |
— | ||
|
11
|
11
72587-S0X-A50 Mount assyL. POWER SLIDE DOOR PULLEY |
72587-S0X-A50 |
US $31.36 |
||
|
12
|
12
74380-S0X-A01 CableSLIDE DOOR STOPPER SENSOR |
74380-S0X-A01 |
US $48.51 |
||
|
13
|
13
90106-S0X-003 ScrewTAPPING, |
90106-S0X-003 |
US $1.54 |
||
|
14
|
14
90109-S0X-003
Screw
|
90109-S0X-003 |
— | ||
|
15
|
15
90222-S04-003 NutSPECIAL, 6MM |
90222-S04-003 |
US $1.19 |
||
|
16
|
16
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
17
|
17
91540-S0X-A01 ClipSLIDE DOOR CENTER RAIL |
91540-S0X-A01 |
US $4.62 |
||
|
18
|
18
91541-S0X-A51
Spacer
|
91541-S0X-A51 |
— | ||
|
19
|
19
90110-S0X-003
Bolt-washer
|
90110-S0X-003 |
— | ||
|
20
|
20
93901-253J0 ScrewTAPPING, 5X16 |
93901-253J0 |
from US $0.67 |
||
|
21
|
21
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.50 |
||
|
22
|
22
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
||
|
23
|
23
90111-S0X-003
Bolt
|
90111-S0X-003 |
— | ||
|
24
|
24
72521-S0X-A51 Male assy.R. SLIDE DOOR CENTER ROLLER |
72521-S0X-A51 |
US $57.09 |
||
|
25
|
25
72522-S0X-A11 FemaleR. SLIDE DOOR CENTER ROLLER |
72522-S0X-A11 |
US $26.11 |
||
|
26
|
26
72523-S0X-A01 PinSLIDE DOOR CENTER ROLLER |
72523-S0X-A01 |
US $2.31 |
||
|
27
|
27
72561-S0X-A51 Male assy.L. SLIDE DOOR CENTER ROLLER |
72561-S0X-A51 |
US $57.09 |
||
|
28
|
28
72562-S0X-A11 FemaleL. SLIDE DOOR CENTER ROLLER |
72562-S0X-A11 |
US $26.11 |
||
|
29
|
29
94540-06014 E-ring6MM |
94540-06014 |
US $1.33 |
