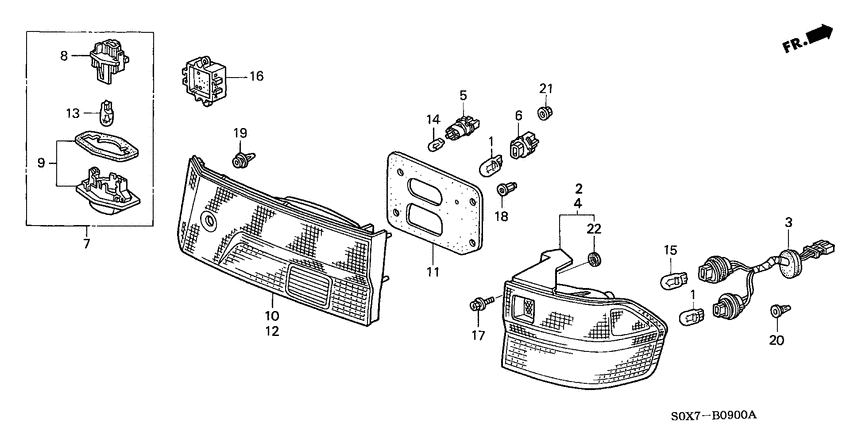

Taillight Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.52 |
||
|
2
|
2
33501-S0X-003 Lamp unitR. TAIL |
33501-S0X-003 |
US $291.84 |
||
|
3
|
3
33502-S0X-A01
Socket comp.
|
33502-S0X-A01 |
— | ||
|
4
|
4
33506-S0X-003 Lamp unitL. TAIL |
33506-S0X-003 |
US $291.84 |
||
|
5
|
5
33513-S84-A01
Socket
|
33513-S84-A01 |
— | ||
|
6
|
6
33514-S50-003
Socket
|
33514-S50-003 |
— | ||
|
7
|
7
34100-S84-A01 Light assyLICENSE |
34100-S84-A01 |
US $29.38 |
||
|
8
|
8
34102-S60-003 Housing comp |
34102-S60-003 |
US $12.88 |
||
|
9
|
9
34102-S84-A01 Lens comp |
34102-S84-A01 |
US $15.71 |
||
|
10
|
10
34151-S0X-003 Lamp unitR. LID |
34151-S0X-003 |
US $298.24 |
||
|
11
|
11
34152-S0X-A01 GasketBASE |
34152-S0X-A01 |
US $13.70 |
||
|
12
|
12
34156-S0X-003 Lamp unitL. LID |
34156-S0X-003 |
US $298.24 |
||
|
13
|
13
34901-SB0-671 Bulb12V 5W 3CP) (STANLEY |
34901-SB0-671 |
from US $1.82 |
||
|
14
|
14
34901-671-671 BulbWEDGE BASE (12V 5W) |
34901-671-671 |
from US $0.52 |
||
|
15
|
15
34906-ST5-003 Bulb12V 21W/5W) (STANLEY |
34906-ST5-003 |
US $2.24 |
||
|
16
|
16
37540-S84-A02 SensorSTOP LAMP FAILURE (2P) |
37540-S84-A02 |
US $48.38 |
||
|
17
|
17
90001-S10-A00 Bolt-washer5X16 |
90001-S10-A00 |
from US $3.08 |
||
|
18
|
18
90321-S06-000 NutHEX. CAP, 5MM |
90321-S06-000 |
US $1.89 |
||
|
19
|
19
90665-S47-003 Clip |
90665-S47-003 |
US $1.47 |
||
|
20
|
20
91626-S0X-A01 GrommetTAILLIGHT |
91626-S0X-A01 |
US $2.04 |
||
|
21
|
21
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
22
|
22
33502-S10-003 GasketBASE |
33502-S10-003 |
US $2.31 |
