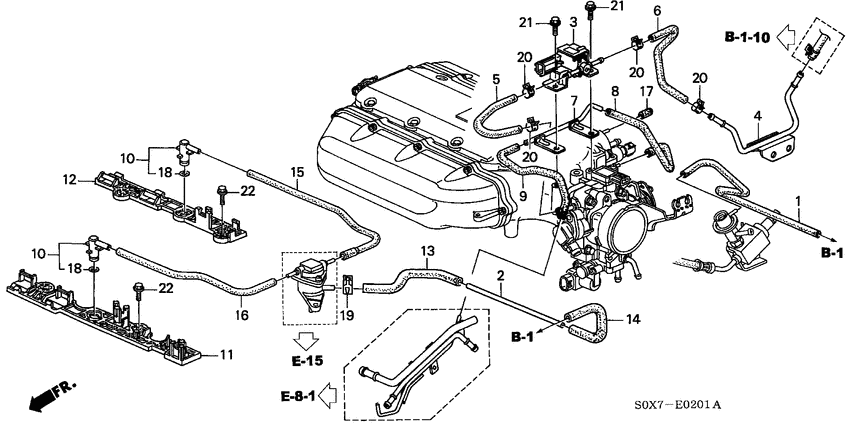

Tubing ('02-) Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17114-P8F-A30
Tube
|
17114-P8F-A30 |
— | ||
|
2
|
2
17410-P8F-A00 PipeAIR ASSIST VALVE |
17410-P8F-A00 |
US $3.36 |
||
|
3
|
3
36162-PGK-A02
Valve
|
36162-PGK-A02 |
— | ||
|
4
|
4
36166-PGK-A00
Pipe comp
|
36166-PGK-A00 |
— | ||
|
5
|
5
36167-PGK-A00
Tube b
|
36167-PGK-A00 |
— | ||
|
6
|
6
36176-PGK-A00
Tube c
|
36176-PGK-A00 |
— | ||
|
7
|
7
36182-P8F-A30
Stay
|
36182-P8F-A30 |
— | ||
|
8
|
8
36183-P8F-A30
Tube a
|
36183-P8F-A30 |
— | ||
|
9
|
9
36184-P8F-A30
Tube b
|
36184-P8F-A30 |
— | ||
|
10
|
10
36202-P8E-A01 Joint setAIR ASSIST |
36202-P8E-A01 |
US $10.64 |
||
|
11
|
11
36283-P8E-A01 Holder compFR. AIR PASSAGE |
36283-P8E-A01 |
US $13.82 |
||
|
12
|
12
36284-P8E-A01 Holder compRR. AIR PASSAGE |
36284-P8E-A01 |
US $13.30 |
||
|
13
|
13
36286-P8F-A00
Tube a
|
36286-P8F-A00 |
— | ||
|
14
|
14
36287-P8F-A00
Tube b
|
36287-P8F-A00 |
— | ||
|
15
|
15
36288-P8E-A00
Tube
|
36288-P8E-A00 |
— | ||
|
16
|
16
36289-P8E-A00
Tube
|
36289-P8E-A00 |
— | ||
|
17
|
17
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
18
|
18
91301-P8E-A00 O-ring8.7X2.2 |
91301-P8E-A00 |
US $2.10 |
||
|
19
|
19
91405-P8E-A01 ClampTUBE (D15) |
91405-P8E-A01 |
US $2.80 |
||
|
20
|
20
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
||
|
22
|
22
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
