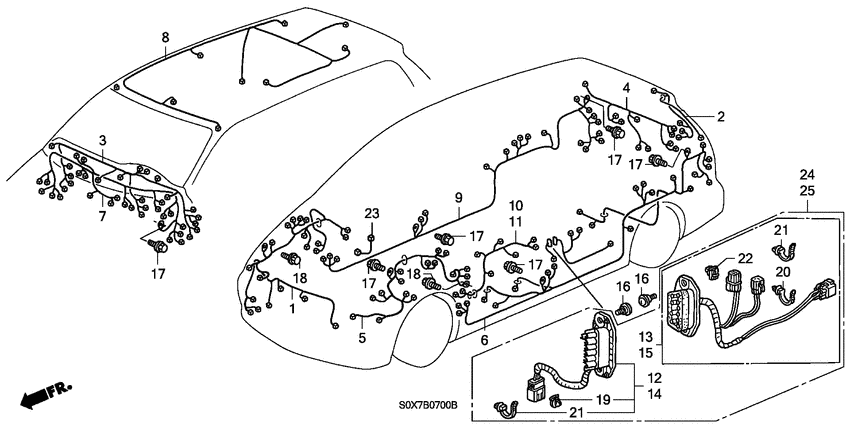

Wire harness Diagram Honda ODYSSEY
- Year
- 2004
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXL
- area code
- KY
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-S0X-Y05
Harness
|
32100-S0X-Y05 |
— | ||
|
2
|
2
32109-S0X-A12
Cord
|
32109-S0X-A12 |
— | ||
|
3
|
3
32117-S0X-Y06
Harness
|
32117-S0X-Y06 |
— | ||
|
4
|
4
32119-S0X-A12
Sub cord
|
32119-S0X-A12 |
— | ||
|
5
|
5
32120-S0X-Y05
Harness
|
32120-S0X-Y05 |
— | ||
|
6
|
6
32140-S0X-Y04
Harness
|
32140-S0X-Y04 |
— | ||
|
7
|
7
32150-S0X-Y04
Harness
|
32150-S0X-Y04 |
— | ||
|
8
|
8
32155-S0X-A13 CordINTERIOR |
32155-S0X-A13 |
US $181.76 |
||
|
9
|
9
32160-S0X-A25
Harness
|
32160-S0X-A25 |
— | ||
|
10
|
10
32751-S0X-Y02
Harness
|
32751-S0X-Y02 |
— | ||
|
11
|
11
32752-S0X-A14
Harness
|
32752-S0X-A14 |
— | ||
|
12
|
12
35430-S0X-A03
Switch assy
|
35430-S0X-A03 |
— | ||
|
14
|
14
35435-S0X-A03
Switch assy
|
35435-S0X-A03 |
— | ||
|
15
|
15
35436-S0X-A04
Switch assy
|
35436-S0X-A04 |
— | ||
|
16
|
16
90102-S0X-A00 Bolt-washer6X9 |
90102-S0X-A00 |
US $2.31 |
||
|
17
|
17
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
18
|
18
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.60 |
||
|
19
|
19
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
20
|
20
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.15 |
||
|
21
|
21
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
22
|
22
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
23
|
23
32116-S0X-A11
Sub harness
|
32116-S0X-A11 |
— | ||
|
24
|
24
35432-S0X-A01
Switch set
|
35432-S0X-A01 |
— | ||
|
25
|
25
35437-S0X-A01
Switch set
|
35437-S0X-A01 |
— |
