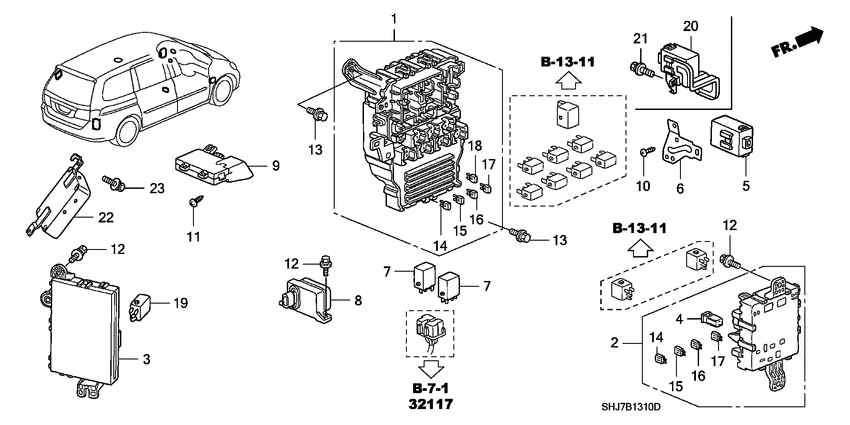

Control unit (CABIN; 1) Diagram Honda ODYSSEY
- Year
- 2005
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38200-SHJ-Y01
Box assy
|
38200-SHJ-Y01 |
— | ||
|
2
|
2
38210-SHJ-A21
Box assy
|
38210-SHJ-A21 |
— | ||
|
3
|
3
38220-SHJ-A01
Box assy
|
38220-SHJ-A01 |
— | ||
|
4
|
4
38231-S04-003 FuseBLOCK (30A) |
38231-S04-003 |
US $2.31 |
||
|
5
|
5
39720-SEA-E01 Imoes unit |
39720-SEA-E01 |
US $79.36 |
||
|
6
|
6
39721-SHJ-Y00
Bracket
|
39721-SHJ-Y00 |
— | ||
|
8
|
8
39960-SHJ-A01 Sensor assyCLUSTER |
39960-SHJ-A01 |
US $602.88 |
||
|
9
|
9
78300-S3V-Q01
Compass unit
|
78300-S3V-Q01 |
— | ||
|
10
|
10
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
11
|
11
90131-S47-003 ScrewET, 5X16 |
90131-S47-003 |
US $1.19 |
||
|
12
|
12
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
13
|
13
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
14
|
14
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
15
|
15
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
16
|
16
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
17
|
17
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
18
|
18
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
||
|
19
|
19
39792-SDA-A01 Relay assyMICRO ISO |
39792-SDA-A01 |
US $16.86 |
