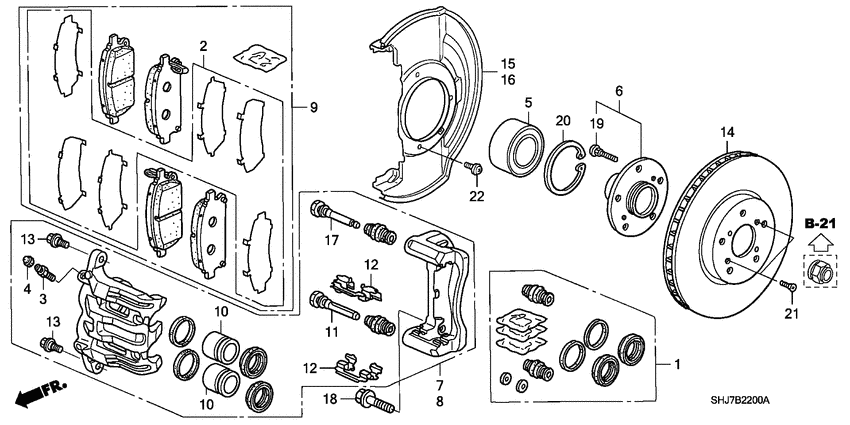

Front brake Diagram Honda ODYSSEY
- Year
- 2005
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-SHJ-A00
Caliper set, FR.
|
01463-SHJ-A00 |
— | ||
| replacement | |||||
|
1
|
1
01463-SHJ-A01 CALIPER SET, FR. |
01463-SHJ-A01 |
US $63.73 |
||
|
2
|
2
06455-SHJ-A00
Shim set
|
06455-SHJ-A00 |
— | ||
|
3
|
3
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
4
|
4
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
5
|
5
44300-SHJ-A51 Bearing assyFR. HUB |
44300-SHJ-A51 |
US $116.75 |
||
|
6
|
6
44600-SHJ-A00
Hub assy
|
44600-SHJ-A00 |
— | ||
|
7
|
7
45018-SHJ-A01 Caliper sub assy.R. |
45018-SHJ-A01 |
US $387.84 |
||
|
8
|
8
45019-SHJ-A01 Caliper sub assy.L. |
45019-SHJ-A01 |
US $387.84 |
||
|
9
|
9
45022-SHJ-A00
Pad set
|
45022-SHJ-A00 |
— | ||
|
10
|
10
45216-SHJ-A01 Piston |
45216-SHJ-A01 |
US $32.31 |
||
|
11
|
11
45235-S0K-A01 Pin a |
45235-S0K-A01 |
from US $8.68 |
||
|
12
|
12
45237-SHJ-A01 Retainer |
45237-SHJ-A01 |
from US $4.76 |
||
|
13
|
13
45240-SM4-003 BoltFLANGE, 10X24 |
45240-SM4-003 |
from US $2.17 |
||
|
14
|
14
45251-SHJ-A00
Disk
|
45251-SHJ-A00 |
— | ||
|
15
|
15
45255-SHJ-A10
Guard
|
45255-SHJ-A10 |
— | ||
|
16
|
16
45256-SHJ-A10
Guard
|
45256-SHJ-A10 |
— | ||
|
17
|
17
45262-SHJ-A01 Pin b |
45262-SHJ-A01 |
US $12.18 |
||
|
18
|
18
90107-S3V-A00 BoltCALIPER MOUNT |
90107-S3V-A00 |
US $2.66 |
||
|
19
|
19
90113-SHJ-A02 BoltWHEEL (ROCKNEL FASTENER) |
90113-SHJ-A02 |
from US $4.20 |
||
|
19
|
19
90113-SHJ-A01 BoltWHEEL (MEIRA) |
90113-SHJ-A01 |
from US $5.86 |
||
|
20
|
20
90681-SJK-000 CirclipINTERNAL, 91MM |
90681-SJK-000 |
from US $6.86 |
||
|
21
|
21
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
22
|
22
93892-060-140-8 Screw-washer6X14 |
93892-060-140-8 |
from US $0.52 |
||
