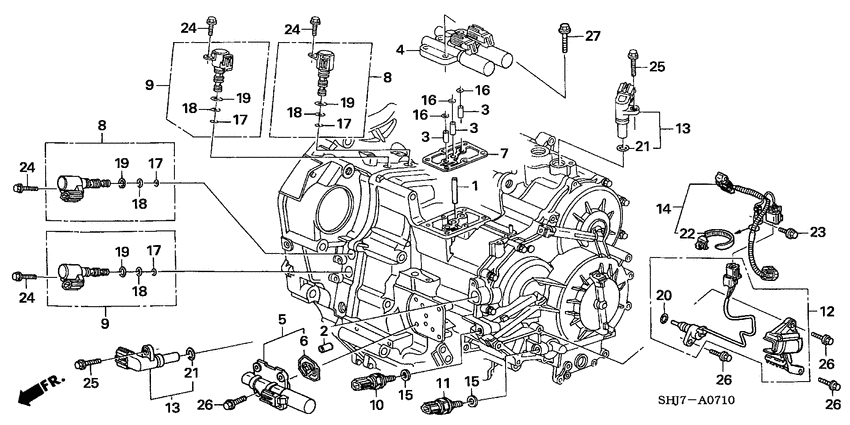

Sensor/solenoid (-'06) Diagram Honda ODYSSEY
- Year
- 2005
- Model code
- ODYSSEY
- Sales region
- General
- Engine
- J35A
- transmission
- 5AT
- Number of doors
- 5
- grade
- EXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22743-PW4-000 Pipe8X40 |
22743-PW4-000 |
US $2.03 |
||
|
2
|
2
22750-P7W-000 Pipe comp8X12 |
22750-P7W-000 |
US $5.32 |
||
|
3
|
3
22750-P7Z-000 Pipe comp8X18 |
22750-P7Z-000 |
US $6.44 |
||
|
4
|
4
28250-P6H-024 Solenoid assy.LINEAR |
28250-P6H-024 |
US $359.04 |
||
|
5
|
5
28250-P7W-003 Solenoid assy.LINEAR |
28250-P7W-003 |
US $350.37 |
||
|
6
|
6
28251-P7W-003 Packing comp.BASE |
28251-P7W-003 |
from US $12.74 |
||
|
7
|
7
28252-PAX-000 PackingLINEAR SOLENOID |
28252-PAX-000 |
from US $3.78 |
||
|
8
|
8
28400-P6H-013 Solenoid assyA) (KEIHIN |
28400-P6H-013 |
US $130.75 |
||
|
9
|
9
28500-P6H-013
Solenoid assy
|
28500-P6H-013 |
— | ||
|
10
|
10
28600-RKE-004 AT OIL PRESSURE SWITCH |
28600-RKE-004 |
US $48.55 |
||
|
11
|
11
28610-RGR-004
Switch assy
|
28610-RGR-004 |
— | ||
|
12
|
12
28650-RDG-004 Sensor assyATF TEMPERATURE |
28650-RDG-004 |
US $75.52 |
||
|
13
|
13
28810-PPW-013 Pick up assy.TOYO |
28810-PPW-013 |
US $45.49 |
||
|
14
|
14
28960-RGR-000
Harness
|
28960-RGR-000 |
— | ||
|
15
|
15
90471-PW7-A00 PACKING, 10MM10MM |
90471-PW7-A00 |
from US $1.68 |
||
|
16
|
16
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
17
|
17
91301-P6H-003 O-ring7.6X1.9 (KEIHIN) |
91301-P6H-003 |
from US $1.48 |
||
|
18
|
18
91302-P6H-003 O-ring9.6X1.9 (KEIHIN) |
91302-P6H-003 |
US $2.58 |
||
| replacement | |||||
|
18
|
18
91302-P7W-A00 O-ring9.6X1.9 |
91302-P7W-A00 |
from US $1.19 |
||
|
19
|
19
91303-P6H-003 O-ring11.7X1.9 (KEIHIN) |
91303-P6H-003 |
from US $1.48 |
||
|
20
|
20
91303-RAY-003 O-ring12X2.4 (NOK) |
91303-RAY-003 |
from US $1.75 |
||
|
21
|
21
91309-PX4-003 O-ring16X2.1 (NOK) |
91309-PX4-003 |
from US $1.57 |
||
|
22
|
22
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
23
|
23
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
24
|
24
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
25
|
25
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
26
|
26
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
27
|
27
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
