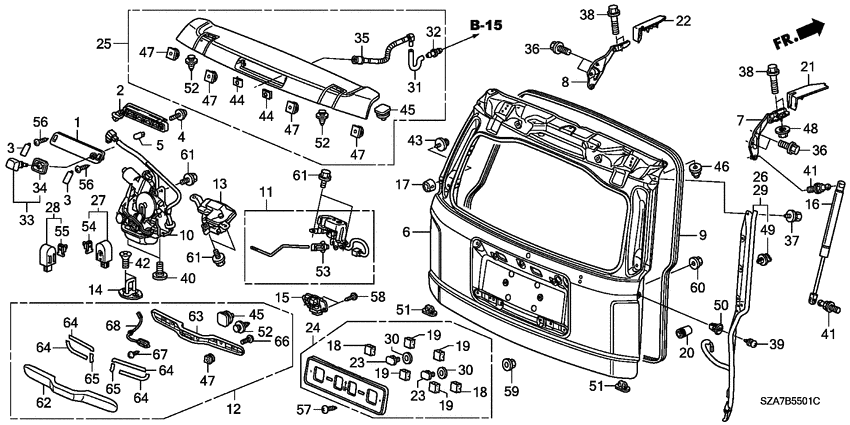

Tailgate (POWER) Diagram Honda PILOT
- Year
- 2009
- Model code
- PILOT
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 5
- grade
- TOURING
- area code
- KR
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34271-SZA-A01
Lamp comp
|
34271-SZA-A01 |
— | ||
|
2
|
2
34272-SZA-A01
Cover comp.
|
34272-SZA-A01 |
— | ||
|
3
|
3
34274-SZA-A01
Cap
|
34274-SZA-A01 |
— | ||
|
4
|
4
34276-SJC-A01
Tapping
|
34276-SJC-A01 |
— | ||
|
5
|
5
34908-SB6-741
Bulb
|
34908-SB6-741 |
— | ||
| replacement | |||||
|
5
|
5
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
6
|
6
68100-SZA-A31ZZ
Tailgate comp.
|
68100-SZA-A31ZZ |
— | ||
|
7
|
7
68210-SZA-A10ZZ
Hinge comp
|
68210-SZA-A10ZZ |
— | ||
|
8
|
8
68260-SZA-A10ZZ
Hinge comp
|
68260-SZA-A10ZZ |
— | ||
|
9
|
9
74440-SZA-A01
Weatherstrip
|
74440-SZA-A01 |
— | ||
|
10
|
10
74800-SHJ-A61 Lock & closer assy.TAILGATE |
74800-SHJ-A61 |
US $276.48 |
||
|
11
|
11
74805-SZA-A01
Lock assy
|
74805-SZA-A01 |
— | ||
|
12
|
12
74810-SZA-R01ZD
Handle assy
|
74810-SZA-R01ZD |
— | ||
|
12
|
12
74810-SZA-R01ZF
Handle assy
|
74810-SZA-R01ZF |
— | ||
|
12
|
12
74810-SZA-R01ZA
Handle assy
|
74810-SZA-R01ZA |
— | ||
|
12
|
12
74810-SZA-R01ZC
Handle assy
|
74810-SZA-R01ZC |
— | ||
|
12
|
12
74810-SZA-R01ZE
Handle assy
|
74810-SZA-R01ZE |
— | ||
|
12
|
12
74810-SZA-R01ZG
Handle assy
|
74810-SZA-R01ZG |
— | ||
|
12
|
12
74810-SZA-R01ZB
Handle assy
|
74810-SZA-R01ZB |
— | ||
|
13
|
13
74811-SZA-A01
Actuator assy
|
74811-SZA-A01 |
— | ||
|
14
|
14
74813-SHJ-A01
Striker assy
|
74813-SHJ-A01 |
— | ||
|
15
|
15
74815-SZA-A01 Switch assyTAILGATE OPENER |
74815-SZA-A01 |
US $92.39 |
||
|
16
|
16
74820-SZA-A21
Stay assy
|
74820-SZA-A21 |
— | ||
|
17
|
17
74826-SZA-A00
Stopper
|
74826-SZA-A00 |
— | ||
|
18
|
18
74827-S2G-010 ProtectorLICENSE PLATE |
74827-S2G-010 |
US $1.33 |
||
|
19
|
19
74828-SZA-R00
Protector
|
74828-SZA-R00 |
— | ||
|
20
|
20
74829-S9A-000
Stopper
|
74829-S9A-000 |
— | ||
|
21
|
21
74835-SZA-A10ZA
Cover
|
74835-SZA-A10ZA |
— | ||
|
22
|
22
74885-SZA-A10ZA
Cover
|
74885-SZA-A10ZA |
— | ||
|
23
|
23
74895-S5A-000 BoltSPECIAL, 5MM |
74895-S5A-000 |
US $2.31 |
||
|
24
|
24
74899-SZA-R00
Base
|
74899-SZA-R00 |
— | ||
|
25
|
25
74900-SZA-A01ZD
Garnish assy
|
74900-SZA-A01ZD |
— | ||
|
25
|
25
74900-SZA-A01ZF
Garnish assy
|
74900-SZA-A01ZF |
— | ||
|
25
|
25
74900-SZA-A01ZA
Garnish assy
|
74900-SZA-A01ZA |
— | ||
|
25
|
25
74900-SZA-A01ZH
Garnish assy
|
74900-SZA-A01ZH |
— | ||
|
25
|
25
74900-SZA-A01ZC
Garnish assy
|
74900-SZA-A01ZC |
— | ||
|
25
|
25
74900-SZA-A01ZE
Garnish assy
|
74900-SZA-A01ZE |
— | ||
|
25
|
25
74900-SZA-A01ZG
Garnish assy
|
74900-SZA-A01ZG |
— | ||
|
26
|
26
74934-SZA-A01
Sensor assy
|
74934-SZA-A01 |
— | ||
|
27
|
27
74940-SAA-902 Buzzer assy.SMART |
74940-SAA-902 |
US $38.02 |
||
|
28
|
28
74940-SED-901 Buzzer assy. |
74940-SED-901 |
US $38.02 |
||
|
29
|
29
74954-SZA-A01
Sensor assy
|
74954-SZA-A01 |
— | ||
|
30
|
30
75523-SS0-000 PackingSEAL |
75523-SS0-000 |
US $0.98 |
||
|
31
|
31
76829-SZA-A01
Tube
|
76829-SZA-A01 |
— | ||
|
32
|
32
76830-SZA-A11
Connecter
|
76830-SZA-A11 |
— | ||
|
33
|
33
76850-SZA-A01
Nozzle
|
76850-SZA-A01 |
— | ||
|
34
|
34
76851-SZA-A00
Packing
|
76851-SZA-A00 |
— | ||
|
35
|
35
76864-SZA-A21 Tube compRR. |
76864-SZA-A21 |
US $31.90 |
||
|
36
|
36
90101-SLJ-003 BoltFLANGE, 8X18 |
90101-SLJ-003 |
from US $1.61 |
||
|
37
|
37
90102-STK-A00 Bolt-washer5X12 |
90102-STK-A00 |
US $1.33 |
||
|
38
|
38
90105-S10-000 BoltFLANGE, 8X30 |
90105-S10-000 |
US $1.61 |
||
|
39
|
39
90106-SDN-A00 ScrewTAPPING, 4X10(PO) |
90106-SDN-A00 |
US $1.19 |
||
|
40
|
40
90107-SEY-003 BoltTAILGATE LOCK |
90107-SEY-003 |
US $1.33 |
||
|
41
|
41
90109-S9V-A01 StudBALL |
90109-S9V-A01 |
US $8.59 |
||
|
42
|
42
90120-SV4-000 BoltLOCK STRIKER |
90120-SV4-000 |
US $1.79 |
||
|
43
|
43
90143-SZA-A00
Screw
|
90143-SZA-A00 |
— | ||
|
44
|
44
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
45
|
45
90303-SHJ-A00
Bolt
|
90303-SHJ-A00 |
— | ||
|
46
|
46
90307-SHJ-A01 NutCAP, 6MM |
90307-SHJ-A01 |
US $2.10 |
||
|
47
|
47
90308-SMG-E01 NutGARNISH (M5) |
90308-SMG-E01 |
from US $2.45 |
||
|
48
|
48
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
US $1.47 |
||
|
49
|
49
90651-SED-901 ClipPOWER TAILGATE SENSOR |
90651-SED-901 |
US $2.31 |
||
|
50
|
50
90662-693-003 GrommetSCREW, 4MM (BLUE) |
90662-693-003 |
US $1.68 |
||
|
51
|
51
90856-S9V-A00 PlugTAILGATE HOLE |
90856-S9V-A00 |
US $1.75 |
||
|
52
|
52
91513-SJK-003 ClipTAILGATE GARNISH |
91513-SJK-003 |
from US $1.61 |
||
|
53
|
53
91513-SR3-003
Snap
|
91513-SR3-003 |
— | ||
|
54
|
54
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $2.07 |
||
|
55
|
55
91534-S03-003 ClipCOUPLER (NATURAL) (SEAL) |
91534-S03-003 |
US $1.33 |
||
|
56
|
56
93903-245J0 ScrewTAPPING, 4X20 |
93903-245J0 |
US $0.67 |
||
|
57
|
57
93904-36120 ScrewTAPPING, 6X12 |
93904-36120 |
US $0.44 |
||
|
58
|
58
93913-242J0 ScrewTAPPING, 4X12 (PO) |
93913-242J0 |
from US $1.11 |
||
|
59
|
59
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
60
|
60
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
61
|
61
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
62
|
62
74816-SZA-R01ZC
Outer *nh705m*
|
74816-SZA-R01ZC |
— | ||
|
62
|
62
74816-SZA-R01ZE
Outer *nh741m*
|
74816-SZA-R01ZE |
— | ||
|
62
|
62
74816-SZA-R01ZG
Outer *yr573m*
|
74816-SZA-R01ZG |
— | ||
|
62
|
62
74816-SZA-R01ZB
Outer *nh689m*
|
74816-SZA-R01ZB |
— | ||
|
62
|
62
74816-SZA-R01ZD
Outer *nh707*
|
74816-SZA-R01ZD |
— | ||
|
62
|
62
74816-SZA-R01ZF
Outer *r529p*
|
74816-SZA-R01ZF |
— | ||
|
62
|
62
74816-SZA-R01ZA
Outer *b552p*
|
74816-SZA-R01ZA |
— | ||
|
63
|
63
74817-SZA-R01
Inner
|
74817-SZA-R01 |
— | ||
|
64
|
64
74818-SZA-A01
Seal a
|
74818-SZA-A01 |
— | ||
|
65
|
65
74819-SZA-A01
Seal b
|
74819-SZA-A01 |
— | ||
|
66
|
66
93891-050-120-7 Screw-washer5X12 |
93891-050-120-7 |
from US $0.44 |
||
|
67
|
67
93903-34120 ScrewTAPPING, 4X8 |
93903-34120 |
from US $0.37 |
||
|
68
|
68
74812-SZA-A00
Switch assy
|
74812-SZA-A00 |
— | ||
