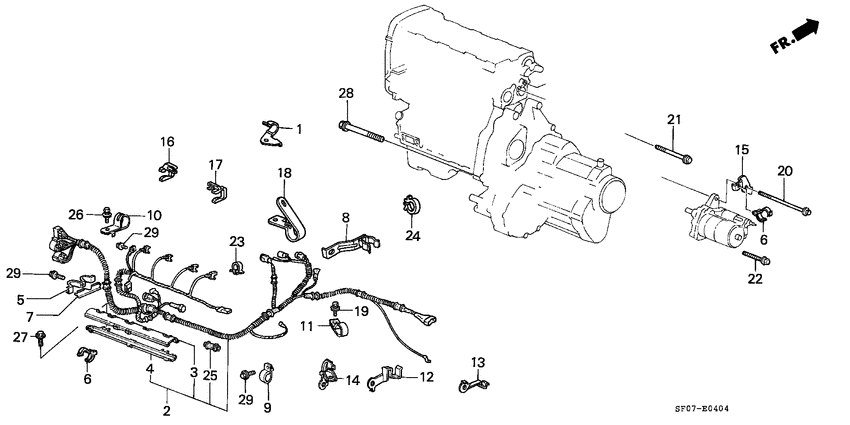

Engine sub cord (PGM-FI) Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET
- transmission
- 5MT
- Number of doors
- 2
- grade
- EX
- abs
- +
- power steering
- +
- area code
- KW
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
32110-PJ5-751
Sub cord
|
32110-PJ5-751 |
— | ||
|
2
|
2
32110-PJ5-601
Sub cord
|
32110-PJ5-601 |
— | ||
|
8
|
8
32744-PD6-660
Clamp
|
32744-PD6-660 |
— | ||
|
11
|
11
32745-PA6-660 Clamp eENGINE WIRE HARNESS |
32745-PA6-660 |
US $4.76 |
||
|
13
|
13
32745-PH3-000
Clamp
|
32745-PH3-000 |
— | ||
|
14
|
14
32746-PJ5-000
Stay comp
2300001 - |
32746-PJ5-000 |
— | ||
|
18
|
18
32751-PJ0-660
Clamp
|
32751-PJ0-660 |
— | ||
|
19
|
19
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
20
|
20
90025-PH3-900
Bolt
|
90025-PH3-900 |
— | ||
|
21
|
21
90050-PE0-000
Bolt
|
90050-PE0-000 |
— | ||
|
25
|
25
90855-SA5-300 ProtectorCORD 2300001 - |
90855-SA5-300 |
US $3.08 |
||
|
28
|
28
95701-120-950-8 BoltFLANGE, 12X95 |
95701-120-950-8 |
from US $1.63 |
||
|
28
|
28
95700-100-600-8 BoltFLANGE, 10X60 |
95700-100-600-8 |
US $0.89 |
