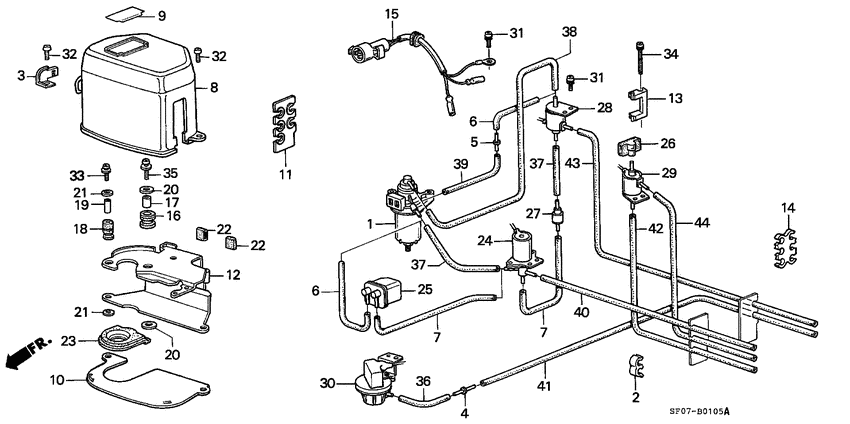

Control box (-0C400000) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET
- transmission
- 5MT
- Number of doors
- 2
- grade
- EX
- abs
- +
- power steering
- +
- area code
- KX
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16300-PC7-753
Valve
|
16300-PC7-753 |
— | ||
|
2
|
2
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
3
|
3
32745-PC7-730
Stay
|
32745-PC7-730 |
— | ||
|
4
|
4
36010-PE0-901
Joint
|
36010-PE0-901 |
— | ||
|
5
|
5
36012-PE0-901 JointTWO WAY 0C213952 - 0C400000 |
36012-PE0-901 |
US $4.48 |
||
|
6
|
6
36013-PE0-004
Holder
0C213952 - 0C400000 |
36013-PE0-004 |
— | ||
|
7
|
7
36014-PD6-004
Holder
0C213952 - 0C4OOOOO |
36014-PD6-004 |
— | ||
|
8
|
8
36020-PA0-004
Cover
|
36020-PA0-004 |
— | ||
|
9
|
9
36022-PC7-755
Label
00000000 - 0C300000 |
36022-PC7-755 |
— | ||
|
10
|
10
36023-PA0-661
Plate
|
36023-PA0-661 |
— | ||
|
11
|
11
36024-PC7-751 HolderTUBE |
36024-PC7-751 |
US $8.26 |
||
|
12
|
12
36030-PA6-911
Base
|
36030-PA6-911 |
— | ||
|
13
|
13
36031-PB2-004
Spacer
00000000 - 0C213951 |
36031-PB2-004 |
— | ||
|
13
|
13
36031-PA5-911
Spacer
0C213952 - 0C400000 |
36031-PA5-911 |
— | ||
|
14
|
14
36032-PC7-731
Clamp
0C204283 - 0C400000 |
36032-PC7-731 |
— | ||
|
15
|
15
36041-PC7-751
Cord assy
00000000 - 0C300000 |
36041-PC7-751 |
— | ||
|
16
|
16
36051-657-300
Rubber
|
36051-657-300 |
— | ||
|
17
|
17
36052-657-300 CollarCONTROL VALVE |
36052-657-300 |
US $6 |
||
|
18
|
18
36053-657-003
Rubber b
|
36053-657-003 |
— | ||
|
19
|
19
36054-657-003
Collar b
|
36054-657-003 |
— | ||
|
20
|
20
36055-657-003
Washer a
|
36055-657-003 |
— | ||
|
21
|
21
36056-657-003
Washer b
|
36056-657-003 |
— | ||
|
22
|
22
36058-PA0-004
Rubber
|
36058-PA0-004 |
— | ||
|
23
|
23
36067-PA0-661
Cap
|
36067-PA0-661 |
— | ||
|
24
|
24
36130-PC7-732
Valve assy.
|
36130-PC7-732 |
— | ||
|
25
|
25
36134-PC7-751
Chamber comp
0C213952 - 0C400000 |
36134-PC7-751 |
— | ||
|
26
|
26
36138-PE0-000 Filter assySOLENOID VALVE |
36138-PE0-000 |
US $12.88 |
||
|
27
|
27
36145-PA6-661
Valve
|
36145-PA6-661 |
— | ||
| replacement | |||||
|
27
|
27
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
28
|
28
36162-PC7-750
Valve assy.
00000000 - 0C300000 |
36162-PC7-750 |
— | ||
|
29
|
29
36164-PC7-751
Valve assy.
|
36164-PC7-751 |
— | ||
|
30
|
30
36183-PC7-751
Switch assy
|
36183-PC7-751 |
— | ||
|
31
|
31
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
32
|
32
93500-050-121-H ScrewPAN, 5X12 |
93500-050-121-H |
from US $0.37 |
||
| replacement | |||||
|
32
|
32
93500-050-120-H ScrewPAN, 5X12 |
93500-050-120-H |
from US $0.37 |
||
|
33
|
33
93892-040-221-8 Screw-washer4X22 |
93892-040-221-8 |
US $0.44 |
||
|
34
|
34
93892-050-381-8 Screw-washer5X38 00000000 - 0C300000 |
93892-050-381-8 |
US $0.52 |
||
|
35
|
35
93892-060-281-8 Screw-washer6X28 |
93892-060-281-8 |
US $0.59 |
||
|
36
|
36
95005-350-401-0
Tube
|
95005-350-401-0 |
— | ||
|
37
|
37
95005-350-551-0 Tube3.5X55(95005-35001-10M) 0C213952 - 0C400000 |
95005-350-551-0 |
US $1.18 |
||
|
38
|
38
95005-351-201-0 Tube3.5X120(95005-35001-10M) 00000000 - 0C213951 |
95005-351-201-0 |
US $1.55 |
||
|
40
|
40
95005-354-201-L Tube3.5X420 (95005-35001-10M) 0C213952 - 0C400000 |
95005-354-201-L |
US $4.74 |
||
|
40
|
40
95005-354-301-L Tube3.5X430 (95005-35001-10M) 0C204283 - 0C213951 |
95005-354-301-L |
US $4.74 |
||
|
40
|
40
95005-354-501-L Tube3.5X450 (95005-35001-10M) 00000000 - 0C204282 |
95005-354-501-L |
US $4.74 |
||
|
41
|
41
95005-354-701-A Tube3.5X470 (95005-35001-10M) 00000000 - 0C204282 |
95005-354-701-A |
from US $5.03 |
||
|
41
|
41
95005-354-301-A Tube3.5X430 (95005-35001-10M) 0C213952 - 0C400000 |
95005-354-301-A |
US $4.74 |
||
|
41
|
41
95005-354-401-A Tube3.5X440 (95005-35001-10M) 0C204283 - 0C213951 |
95005-354-401-A |
US $4.74 |
||
|
42
|
42
95005-355-201-3 Tube3.5X520 (95005-35001-10M) 00000000 - 0C204282 |
95005-355-201-3 |
US $5.33 |
||
|
42
|
42
95005-355-001-3 Tube3.5X500 (95005-35001-10M) 0C204283 - 0C400000 |
95005-355-001-3 |
US $5.03 |
||
|
43
|
43
95005-354-901-6 Tube3.5X490 (95005-35001-10M) 00000000 - 0C204282 |
95005-354-901-6 |
US $5.03 |
||
|
43
|
43
95005-354-701-6 Tube3.5X470 (95005-35001-10M) 0C204283 - 0C400000 |
95005-354-701-6 |
US $5.03 |
||
|
44
|
44
95005-357-701-2 Tube3.5X770 (95005-35001-10M) |
95005-357-701-2 |
US $8.29 |
||
