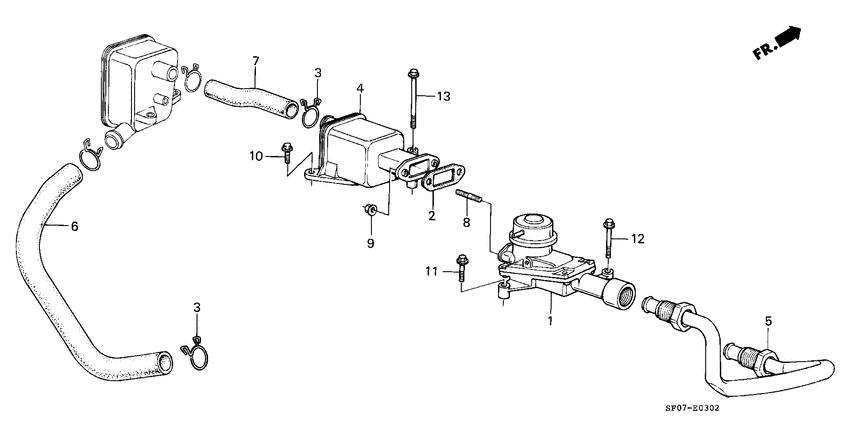

Air suction valve Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- EX
- power steering
- +
- area code
- KG
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18760-PC6-663
Valve assy.
|
18760-PC6-663 |
— | ||
|
2
|
2
18765-PB1-000 Gasket aAIR SUCTION VALVE |
18765-PB1-000 |
US $5.04 |
||
|
3
|
3
18782-PB1-000
Clip
|
18782-PB1-000 |
— | ||
|
4
|
4
18787-PC6-003
Silencer a
|
18787-PC6-003 |
— | ||
|
5
|
5
18790-PC6-003
Pipe comp
|
18790-PC6-003 |
— | ||
|
6
|
6
18795-PC6-660
Tube a
|
18795-PC6-660 |
— | ||
|
7
|
7
18796-PC6-660
Tube b
|
18796-PC6-660 |
— | ||
|
8
|
8
92900-06020-1B BoltSTUD, 6X20 00000000 - 3700000 |
92900-06020-1B |
US $0.59 |
||
|
9
|
9
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
10
|
10
95700-060-200-8
Bolt
|
95700-060-200-8 |
— | ||
| replacement | |||||
|
10
|
10
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
11
|
11
95700-060-220-8 BoltFLANGE, 6X22 |
95700-060-220-8 |
US $15.60 |
||
| replacement | |||||
|
11
|
11
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
12
|
12
95700-060-400-8 BoltFLANGE, 6X40 |
95700-060-400-8 |
US $2.01 |
||
| replacement | |||||
|
12
|
12
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
13
|
13
95700-060-600-8
Bolt
|
95700-060-600-8 |
— | ||
| replacement | |||||
|
13
|
13
95701-060-600-8 BoltFLANGE, 6X60 |
95701-060-600-8 |
from US $0.74 |
||
