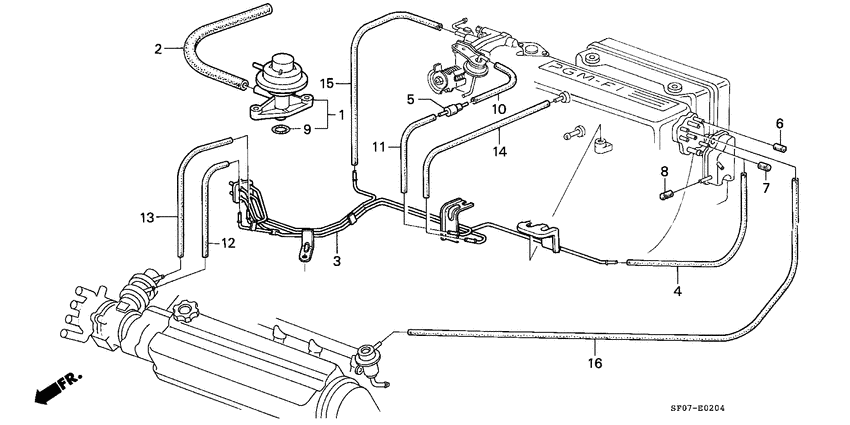

Carburetor tubing (PGM-FI) Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- EX
- power steering
- +
- area code
- KW
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17332-PH3-003
Valve assy.
|
17332-PH3-003 |
— | ||
|
2
|
2
17393-PH3-000
Tube
|
17393-PH3-000 |
— | ||
|
3
|
3
17430-PJ5-780
Pipe assy.
|
17430-PJ5-780 |
— | ||
|
5
|
5
36135-PH3-004 ValveDASHPOT CHECK |
36135-PH3-004 |
US $63.46 |
||
|
7
|
7
90634-PA5-910 CapSEALING, 5.5MM |
90634-PA5-910 |
US $1.68 |
||
|
9
|
9
91307-PH3-003
O-ring
|
91307-PH3-003 |
— | ||
|
11
|
11
95005-350-401-6 Tube3.5X40 (95005-35001-10M) |
95005-350-401-6 |
US $0.89 |
||
| replacements | |||||
|
11
|
11
95005-350-702-0
Tube
|
95005-350-702-0 |
— | ||
|
11
|
11
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
12
|
12
95005-350-701-6 Tube3.5X70 (95005-35001-10M) |
95005-350-701-6 |
US $1.18 |
||
|
13
|
13
95005-351-001-C Tube3.5X100 (95005-35001-10M) |
95005-351-001-C |
US $1.18 |
||
|
14
|
14
95005-351-001-F Tube3.5X100 (95005-35001-10M) |
95005-351-001-F |
US $1.18 |
||
