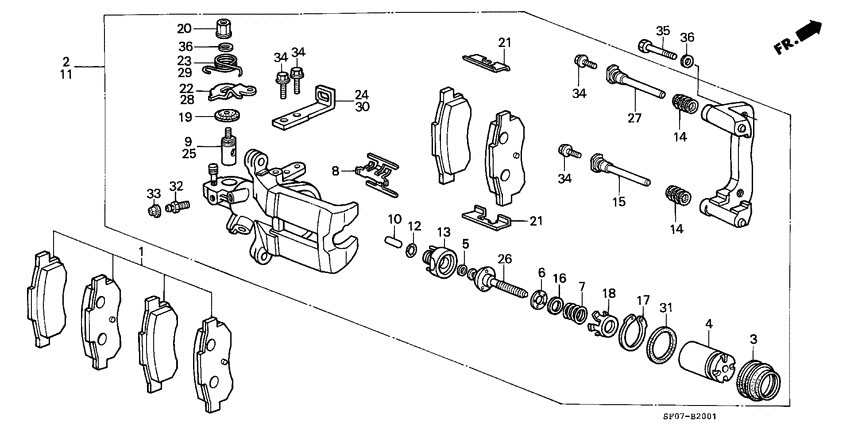

Rear brake caliper (PGM-FI) Diagram Honda PRELUDE
- Year
- 1987
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- EX
- power steering
- +
- area code
- KW
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43022-SE0-931
Pad set
0C100001 - |
43022-SE0-931 |
— | ||
|
2
|
2
43210-SF0-013
Caliper assy
0C005583 - |
43210-SF0-013 |
— | ||
|
11
|
11
43230-SF0-013
Caliper assy
0C005583 - |
43230-SF0-013 |
— | ||
|
26
|
26
43249-SE0-931
Bolt
0C004256 - |
43249-SE0-931 |
— |
