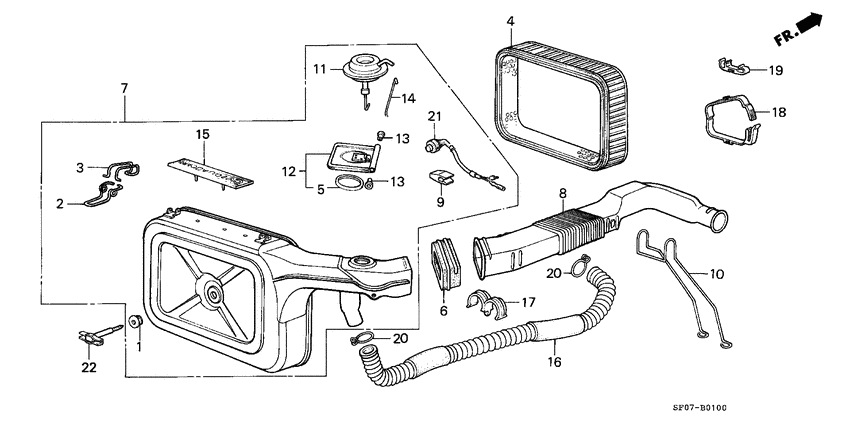

Air cleaner Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17214-PC6-000
Washer
|
17214-PC6-000 |
— | ||
|
2
|
2
17216-PC6-000
Clip A
|
17216-PC6-000 |
— | ||
|
3
|
3
17217-PC6-000
Clip b
|
17217-PC6-000 |
— | ||
|
4
|
4
17220-PC6-660 Element compAIR CLEANER 00000000 - 0C400000 |
17220-PC6-660 |
US $39.04 |
||
|
5
|
5
17222-PC6-300
Seal
|
17222-PC6-300 |
— | ||
|
6
|
6
17231-PC6-660
Cover
|
17231-PC6-660 |
— | ||
|
7
|
7
17240-PC7-790 Case assy.AIR CLEANER 00000000 - 0C400000 |
17240-PC7-790 |
US $272.64 |
||
|
8
|
8
17242-PC6-000
Tube
|
17242-PC6-000 |
— | ||
|
9
|
9
17242-PC7-660
Clamp
|
17242-PC7-660 |
— | ||
|
10
|
10
17244-PC6-000
Stay
|
17244-PC6-000 |
— | ||
|
11
|
11
17245-PC6-003
Diaphragm
|
17245-PC6-003 |
— | ||
|
12
|
12
17251-PC6-000
Valve comp.
|
17251-PC6-000 |
— | ||
|
13
|
13
17253-PC6-300
Plug
|
17253-PC6-300 |
— | ||
|
14
|
14
17257-689-310
Pin
|
17257-689-310 |
— | ||
|
15
|
15
17278-PC6-000 EmblemCV DUAL CARB 00000000 - 0C300000 |
17278-PC6-000 |
US $18.05 |
||
|
16
|
16
17302-PC6-003 PipeHOT AIR |
17302-PC6-003 |
US $77.44 |
||
|
17
|
17
17304-PC6-000
Clamp b
|
17304-PC6-000 |
— | ||
|
20
|
20
18782-PB1-000
Clip
00000000 - 0C400000 |
18782-PB1-000 |
— | ||
|
22
|
22
90010-PC6-000
Bolt
|
90010-PC6-000 |
— |
