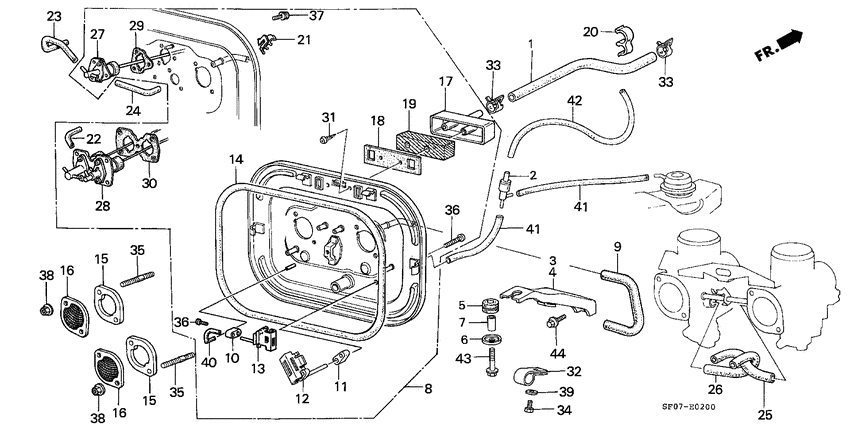

Air cleaner base Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17135-PC6-000
Tube
|
17135-PC6-000 |
— | ||
|
2
|
2
17150-PA6-004
Valve
|
17150-PA6-004 |
— | ||
|
3
|
3
17202-PC6-010
Stay comp
|
17202-PC6-010 |
— | ||
|
4
|
4
17203-PC6-010
Stay comp
|
17203-PC6-010 |
— | ||
|
5
|
5
17207-PC6-000 RubberAIR CLEANER CASE MOUNTING |
17207-PC6-000 |
US $3.36 |
||
|
6
|
6
17208-PC6-000
Washer
|
17208-PC6-000 |
— | ||
|
7
|
7
17209-PC6-000
Collar
|
17209-PC6-000 |
— | ||
|
8
|
8
17210-PC7-660
Base comp.
00000000 - 3700000 |
17210-PC7-660 |
— | ||
|
9
|
9
17229-PC6-000
Tube
|
17229-PC6-000 |
— | ||
|
11
|
11
17247-689-000
Insulator
|
17247-689-000 |
— | ||
|
12
|
12
17250-PA0-003 Sensor compAIR IN. |
17250-PA0-003 |
US $53.25 |
||
|
14
|
14
17258-PC6-300
Gasket
|
17258-PC6-300 |
— | ||
|
15
|
15
17265-PC6-000
Flange
|
17265-PC6-000 |
— | ||
|
16
|
16
17267-PC6-660
Funnel comp.
|
17267-PC6-660 |
— | ||
|
17
|
17
17271-PC6-000
Case
|
17271-PC6-000 |
— | ||
|
18
|
18
17272-PC6-000
Packing
|
17272-PC6-000 |
— | ||
|
19
|
19
17274-PC6-003
Element
|
17274-PC6-003 |
— | ||
|
21
|
21
17362-PC7-660
Clamp
|
17362-PC7-660 |
— | ||
|
22
|
22
17733-PC6-660
Tube
|
17733-PC6-660 |
— | ||
|
23
|
23
17734-PC6-660
Tube
|
17734-PC6-660 |
— | ||
|
24
|
24
17735-PC6-660
Tube
|
17735-PC6-660 |
— | ||
|
28
|
28
36140-PC7-661
Valve assy.
|
36140-PC7-661 |
— | ||
|
30
|
30
36141-PC6-660
Gasket
|
36141-PC6-660 |
— | ||
|
31
|
31
90070-PA5-660
Screw
|
90070-PA5-660 |
— | ||
|
32
|
32
90626-SB0-003 ClipWIRE HARNESS 00000000 - 5000000 |
90626-SB0-003 |
US $2.38 |
||
|
33
|
33
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
from US $3.92 |
||
| replacement | |||||
|
33
|
33
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
34
|
34
92000-05012-0H BoltHEX., 5X12 00000000 - 5000000 |
92000-05012-0H |
from US $0.37 |
||
| replacement | |||||
|
34
|
34
92101-05012-0H Bolt, hex., 5x1200000000 - 5000000 |
92101-05012-0H |
from US $0.37 |
||
|
35
|
35
92900-06020-0B BoltSTUD, 6X20 |
92900-06020-0B |
from US $0.59 |
||
|
36
|
36
93500-040-200-H ScrewPAN, 4X20 00000000 - 3700000 |
93500-040-200-H |
from US $0.37 |
||
|
37
|
37
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
38
|
38
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
39
|
39
94101-05200 WasherPLAIN, 5MM 00000000 - 5000000 |
94101-05200 |
from US $0.44 |
||
|
41
|
41
95005-352-251-8 Tube3.5X225 (95005-35001-10M) |
95005-352-251-8 |
US $2.81 |
||
|
42
|
42
95005-451-901-8 Tube4.5X190 (95005-45001-10M) |
95005-451-901-8 |
US $3.26 |
||
|
43
|
43
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
43
|
43
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
44
|
44
95700-080-140-8 BoltFLANGE, 8X14 |
95700-080-140-8 |
US $1.56 |
||
| replacement | |||||
|
44
|
44
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
