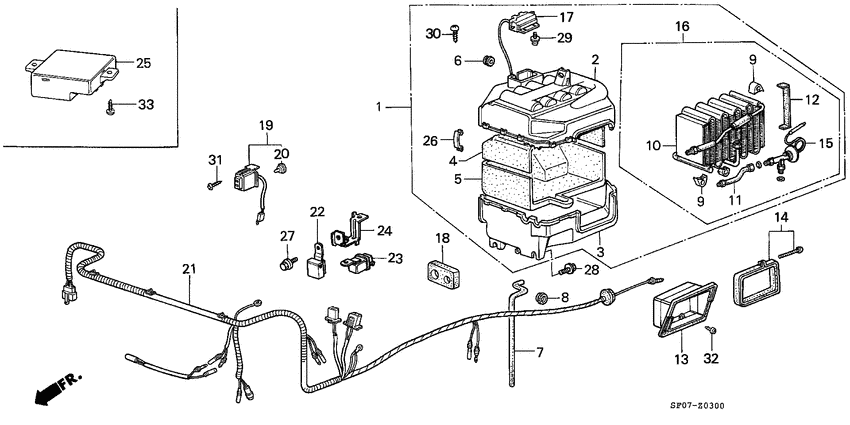

Air conditioner (UNIT) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38620-SB0-661
Cooling unit
00000000 - 0C207475 |
38620-SB0-661 |
— | ||
|
1
|
1
38620-SB0-662 Cooling unit0C207476 - 0C300644 |
38620-SB0-662 |
US $718.08 |
||
|
6
|
6
38625-692-000
Grommet
|
38625-692-000 |
— | ||
|
7
|
7
38626-SB0-671
Hose
|
38626-SB0-671 |
— | ||
|
8
|
8
38627-SB0-000
Grommet
|
38627-SB0-000 |
— | ||
|
10
|
10
38631-SA5-671
Evaporator comp.
|
38631-SA5-671 |
— | ||
|
11
|
11
38632-SA5-941
Pipe
|
38632-SA5-941 |
— | ||
|
13
|
13
38638-SB0-000
Joint comp
|
38638-SB0-000 |
— | ||
|
14
|
14
38639-SA5-000
Band b
|
38639-SA5-000 |
— | ||
|
15
|
15
38650-SA7-003
Valve
|
38650-SA7-003 |
— | ||
|
16
|
16
38655-SA5-673
Sub evaporator assy.
|
38655-SA5-673 |
— | ||
|
17
|
17
38660-SA5-661
Thermostat
00000000 - 0C300644 |
38660-SA5-661 |
— | ||
|
18
|
18
38679-SA5-000
Packing
|
38679-SA5-000 |
— | ||
|
19
|
19
38680-SB0-003
Switch assy
|
38680-SB0-003 |
— | ||
|
20
|
20
38686-SB0-003
Bulb
|
38686-SB0-003 |
— | ||
|
21
|
21
38710-SB0-671
Harness
00000000 - 0C300000 |
38710-SB0-671 |
— | ||
|
22
|
22
38725-SA5-003
Diode assy.
|
38725-SA5-003 |
— | ||
|
23
|
23
39400-SA5-661 Relay assyPOWER (4P) (MITSUBA) 00000000 - 0C300000 |
39400-SA5-661 |
US $56.19 |
||
|
26
|
26
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
27
|
27
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
27
|
27
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
28
|
28
93495-060-160-7 Bolt-washer6X16 |
93495-060-160-7 |
from US $0.59 |
||
| replacement | |||||
|
28
|
28
93405-060-160-7 Bolt-washer6X16 |
93405-060-160-7 |
from US $0.59 |
||
|
29
|
29
93894-040-081-8 Screw-washer4X8 |
93894-040-081-8 |
US $0.44 |
||
|
30
|
30
93901-34420 ScrewTAPPING, 4X16 |
93901-34420 |
from US $0.37 |
||
|
31
|
31
93903-32120 ScrewTAPPING, 3X8 |
93903-32120 |
US $0.37 |
||
|
32
|
32
93903-44220 ScrewTAPPING, 4X10 |
93903-44220 |
from US $0.37 |
||
