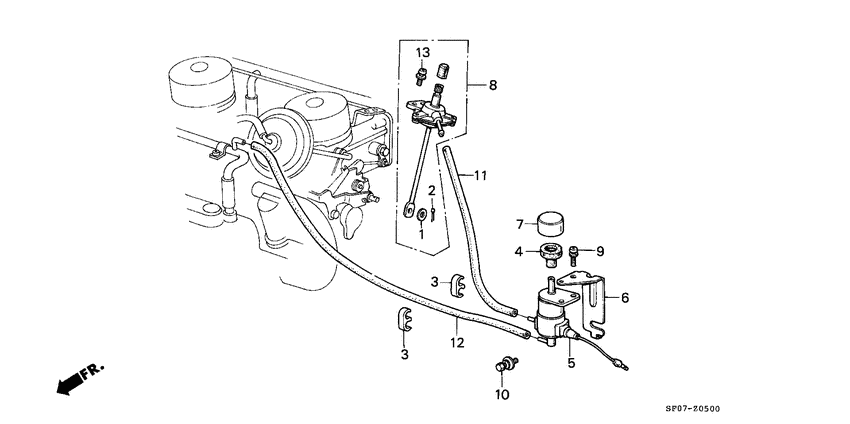

Air conditioner (TUBE/VALVE) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16203-657-300
Washer
|
16203-657-300 |
— | ||
|
2
|
2
16204-657-300 PinSPLIT |
16204-657-300 |
US $2.45 |
||
|
3
|
3
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
4
|
4
36138-PA0-004 Filter assySOLENOID VALVE |
36138-PA0-004 |
US $29.56 |
||
|
5
|
5
38771-PA6-014
Valve assy.
|
38771-PA6-014 |
— | ||
|
6
|
6
38775-PC6-000
Stay
|
38775-PC6-000 |
— | ||
|
7
|
7
38776-671-000 CapAIR FILTER |
38776-671-000 |
from US $3.29 |
||
|
8
|
8
38780-PC6-005
Control set
|
38780-PC6-005 |
— | ||
|
9
|
9
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
10
|
10
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
11
|
11
95005-352-801-0 Tube3.5X280(95005-35001-10M) |
95005-352-801-0 |
US $3.26 |
||
|
12
|
12
95005-353-301-0 Tube3.5X330 (95005-35001-10M) |
95005-353-301-0 |
US $3.85 |
||
|
13
|
13
95800-060-100-8 BoltFLANGE, 6X10 |
95800-060-100-8 |
US $1.39 |
||
| replacement | |||||
|
13
|
13
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
