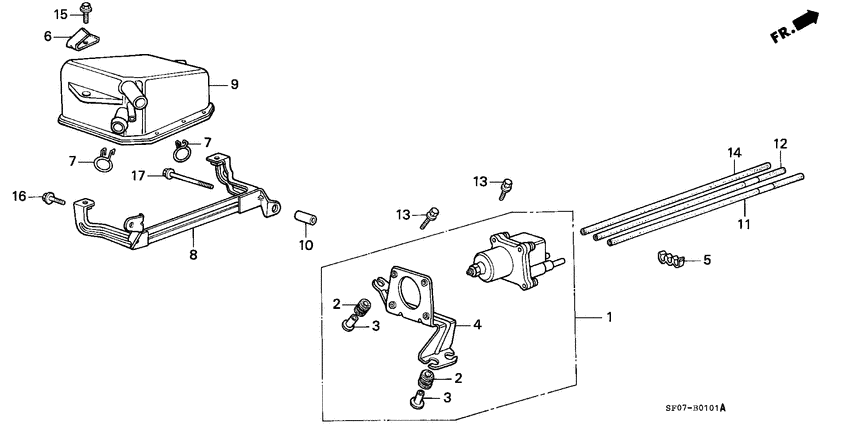

Air jet control Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16800-PC7-662
Control assy.
|
16800-PC7-662 |
— | ||
|
2
|
2
16807-PA6-000
Rubber
|
16807-PA6-000 |
— | ||
|
3
|
3
16808-PC6-680
Collar
|
16808-PC6-680 |
— | ||
|
4
|
4
16810-PC6-681
Stay
|
16810-PC6-681 |
— | ||
|
5
|
5
17361-PC6-000 ClampTUBE, 7.5X3 |
17361-PC6-000 |
US $1.68 |
||
|
6
|
6
18724-PC6-660
Stay
|
18724-PC6-660 |
— | ||
|
7
|
7
18782-PB1-000
Clip
|
18782-PB1-000 |
— | ||
|
8
|
8
18784-PC6-661
Stay comp
|
18784-PC6-661 |
— | ||
|
9
|
9
18788-PC6-661
Silencer b
|
18788-PC6-661 |
— | ||
|
10
|
10
90530-PC6-000
Collar
|
90530-PC6-000 |
— | ||
|
11
|
11
91431-PC7-660
Tube comp. a
|
91431-PC7-660 |
— | ||
|
12
|
12
91432-PC7-660
Tube comp. b
|
91432-PC7-660 |
— | ||
|
13
|
13
93495-060-280-8 Bolt-washer6X28 |
93495-060-280-8 |
US $0.74 |
||
|
14
|
14
95005-452-404-0
Tube
|
95005-452-404-0 |
— | ||
|
15
|
15
95700-060-200-8
Bolt
|
95700-060-200-8 |
— | ||
| replacement | |||||
|
15
|
15
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
16
|
16
95700-080-140-8 BoltFLANGE, 8X14 |
95700-080-140-8 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
|
17
|
17
95700-100-550-8 BoltFLANGE, 10X55 |
95700-100-550-8 |
US $0.89 |
||
