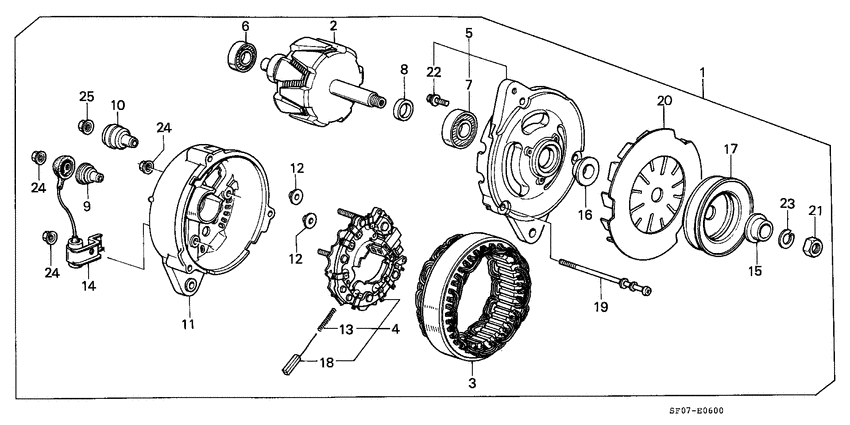

Alternator components Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-PC6-004
Alternator assy
|
31100-PC6-004 |
— | ||
|
2
|
2
31101-PC1-004 Rotor assy.ALTERNATOR 00000000 - 3700000 |
31101-PC1-004 |
US $317.44 |
||
|
3
|
3
31102-PC1-004
Stator assy.
|
31102-PC1-004 |
— | ||
|
4
|
4
31108-PC6-004
Sub rectifier assy.
|
31108-PC6-004 |
— | ||
|
5
|
5
31109-PC6-004
Frame assy
|
31109-PC6-004 |
— | ||
|
6
|
6
31111-671-004
Bearing
|
31111-671-004 |
— | ||
|
7
|
7
31114-671-004
Bearing
|
31114-671-004 |
— | ||
|
8
|
8
31116-671-004 RingSPACE 00000000 - 3700000 |
31116-671-004 |
US $11.76 |
||
|
9
|
9
31118-PA0-662
Bush
|
31118-PA0-662 |
— | ||
|
10
|
10
31119-PC6-004
Bush
|
31119-PC6-004 |
— | ||
|
11
|
11
31121-PC1-004
Frame
|
31121-PC1-004 |
— | ||
|
12
|
12
31125-671-004
Washer
|
31125-671-004 |
— | ||
|
13
|
13
31129-671-004
Spring
|
31129-671-004 |
— | ||
|
14
|
14
31130-PC6-004
Condenser
|
31130-PC6-004 |
— | ||
|
15
|
15
31133-PA0-662
Collar
|
31133-PA0-662 |
— | ||
|
16
|
16
31134-671-004
Collar
|
31134-671-004 |
— | ||
|
17
|
17
31141-PA0-662
Pulley
|
31141-PA0-662 |
— | ||
|
18
|
18
31144-671-004
Brush
|
31144-671-004 |
— | ||
|
19
|
19
31145-634-671
Bolt
|
31145-634-671 |
— | ||
|
20
|
20
31151-PC1-004 FanALTERNATOR |
31151-PC1-004 |
US $22.91 |
||
|
21
|
21
38755-590-004
Nut
00000000 - 3700000 |
38755-590-004 |
— | ||
|
22
|
22
90093-PB1-004 Screw-washer5X15 |
90093-PB1-004 |
US $3.29 |
||
|
23
|
23
90094-PB1-004
Washer
|
90094-PB1-004 |
— | ||
|
24
|
24
94071-05080 Nut-washer5MM |
94071-05080 |
from US $0.47 |
||
|
25
|
25
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
