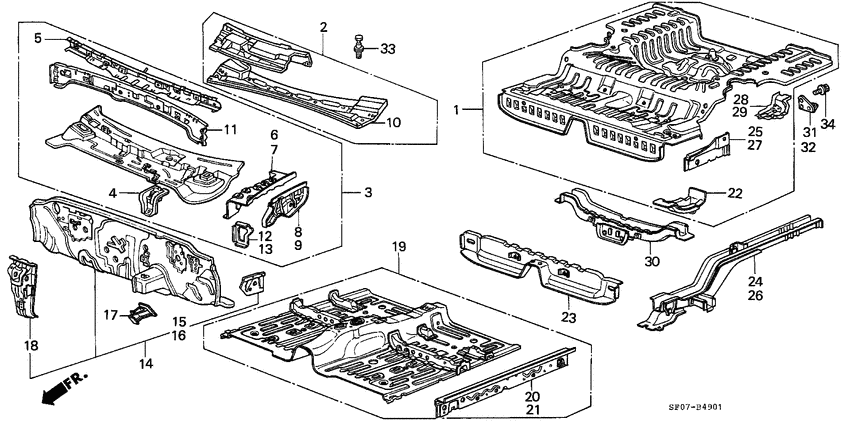

Body structure components (2) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04761-SB0-672ZZ Floor compRR. |
04761-SB0-672ZZ |
US $1,588.48 |
||
|
3
|
3
60610-SB0-672ZZ
Dashboard comp.
|
60610-SB0-672ZZ |
— | ||
|
4
|
4
60613-SB0-670ZZ
Gusset
|
60613-SB0-670ZZ |
— | ||
|
5
|
5
60620-SB0-670ZZ
Crossmember comp.
|
60620-SB0-670ZZ |
— | ||
|
6
|
6
60624-SB0-310ZZ
Member
|
60624-SB0-310ZZ |
— | ||
|
7
|
7
60625-SB0-310ZZ
Member
|
60625-SB0-310ZZ |
— | ||
|
8
|
8
60626-SB0-670ZZ
Panel
|
60626-SB0-670ZZ |
— | ||
|
9
|
9
60627-SB0-670ZZ
Panel
|
60627-SB0-670ZZ |
— | ||
|
10
|
10
60651-SB0-010ZZ
Panel
|
60651-SB0-010ZZ |
— | ||
|
11
|
11
60652-SB0-670ZZ
Separator
|
60652-SB0-670ZZ |
— | ||
|
12
|
12
60655-SB0-300ZZ
Shelter
|
60655-SB0-300ZZ |
— | ||
|
13
|
13
60656-SB0-300ZZ
Shelter
|
60656-SB0-300ZZ |
— | ||
|
14
|
14
60660-SB0-671ZZ Dashboard comp.LOWER |
60660-SB0-671ZZ |
US $674.56 |
||
|
15
|
15
60671-SB0-300ZZ
End
|
60671-SB0-300ZZ |
— | ||
|
16
|
16
60672-SB0-300ZZ
End
|
60672-SB0-300ZZ |
— | ||
|
18
|
18
60690-SB0-310ZZ Frame compTORQUE ROD 00000000 - 0C300000 |
60690-SB0-310ZZ |
US $62.08 |
||
|
19
|
19
70210-SB0-672ZZ Floor compFR. |
70210-SB0-672ZZ |
US $1,158.40 |
||
|
20
|
20
70220-SB0-672ZZ
Sill comp.
|
70220-SB0-672ZZ |
— | ||
|
21
|
21
70225-SB0-672ZZ
Sill comp.
|
70225-SB0-672ZZ |
— | ||
|
22
|
22
70241-SB0-310ZZ
Stiffener
|
70241-SB0-310ZZ |
— | ||
|
23
|
23
70245-SB0-330ZZ Crossmember comp.MIDDLE FLOOR 00000000 - 0C213675 |
70245-SB0-330ZZ |
US $154.88 |
||
|
23
|
23
70245-SB0-340ZZ
Crossmember comp.
0C213676 - 0C300000 |
70245-SB0-340ZZ |
— | ||
|
24
|
24
70250-SB0-661ZZ
Frame comp
|
70250-SB0-661ZZ |
— | ||
|
25
|
25
70256-SB0-671ZZ
Extension
|
70256-SB0-671ZZ |
— | ||
|
26
|
26
70260-SB0-662ZZ Frame compL. RR. |
70260-SB0-662ZZ |
US $442.88 |
||
|
27
|
27
70266-SB0-310ZZ
Extension
|
70266-SB0-310ZZ |
— | ||
|
30
|
30
70280-SB0-660ZZ
Crossmember comp.
|
70280-SB0-660ZZ |
— | ||
|
33
|
33
90112-SB0-671
Bolt
|
90112-SB0-671 |
— |
