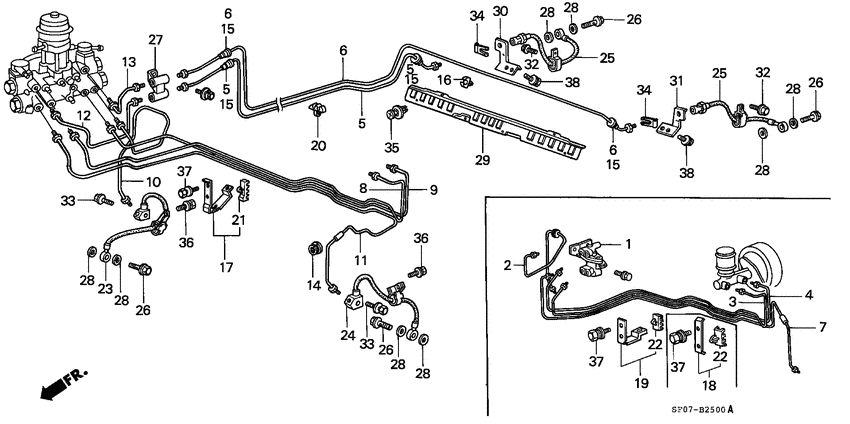

Brake line Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46210-SB0-013
Valve assy.
|
46210-SB0-013 |
— | ||
|
2
|
2
46310-SB0-000
Pipe comp. a
|
46310-SB0-000 |
— | ||
|
3
|
3
46320-SB0-670
Pipe comp. b
|
46320-SB0-670 |
— | ||
|
4
|
4
46321-SB0-670
Pipe comp. h
|
46321-SB0-670 |
— | ||
|
5
|
5
46330-SB0-010
Pipe comp. c
|
46330-SB0-010 |
— | ||
|
6
|
6
46340-SB0-000
Pipe comp. d
|
46340-SB0-000 |
— | ||
|
7
|
7
46360-SB0-670
Pipe comp. f
|
46360-SB0-670 |
— | ||
|
14
|
14
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $2.03 |
||
|
15
|
15
46381-692-300
Grommet b
|
46381-692-300 |
— | ||
|
16
|
16
46391-692-003
Clip s
|
46391-692-003 |
— | ||
|
18
|
18
46392-SB0-681
Clip
00000000 - 0C300000 |
46392-SB0-681 |
— | ||
|
20
|
20
46392-SB0-000 Clip dBRAKE PIPE (BLACK) |
46392-SB0-000 |
US $8.26 |
||
|
22
|
22
46394-SB0-681
Clip b
00000000 - 0C306196 |
46394-SB0-681 |
— | ||
|
23
|
23
46410-SB0-044
Hose
|
46410-SB0-044 |
— | ||
|
23
|
23
46410-SB0-023
Hose
|
46410-SB0-023 |
— | ||
|
24
|
24
46411-SB0-023
Hose
|
46411-SB0-023 |
— | ||
|
24
|
24
46411-SB0-044
Hose
|
46411-SB0-044 |
— | ||
|
25
|
25
46430-SA5-986 HoseRR. BRAKE (NICHIRIN) |
46430-SA5-986 |
US $38.78 |
||
|
25
|
25
46430-SA5-988 HoseRR. BRAKE (TOYODA) |
46430-SA5-988 |
US $38.78 |
||
|
25
|
25
46430-SA5-987
Hose
|
46430-SA5-987 |
— | ||
|
26
|
26
46462-663-670 BoltOIL |
46462-663-670 |
US $4.76 |
||
|
28
|
28
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
29
|
29
70237-SB0-000
Protector
|
70237-SB0-000 |
— | ||
|
30
|
30
70253-SB0-010
Bracket
00000000 - 0C300000 |
70253-SB0-010 |
— | ||
|
31
|
31
70263-SB0-010
Bracket
00000000 - 0C300000 |
70263-SB0-010 |
— | ||
|
32
|
32
90105-SB0-003 Bolt-washer8X16 |
90105-SB0-003 |
US $0.67 |
||
|
33
|
33
90650-SB0-003
Bolt-washer
|
90650-SB0-003 |
— | ||
|
34
|
34
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
35
|
35
90677-SB0-003
Clip
|
90677-SB0-003 |
— | ||
|
36
|
36
93492-060-100-8 Bolt-washer6X10 |
93492-060-100-8 |
from US $0.52 |
||
| replacement | |||||
|
36
|
36
93402-060-100-8 Bolt-washer6X10 |
93402-060-100-8 |
from US $0.52 |
||
|
37
|
37
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
37
|
37
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
38
|
38
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
38
|
38
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
