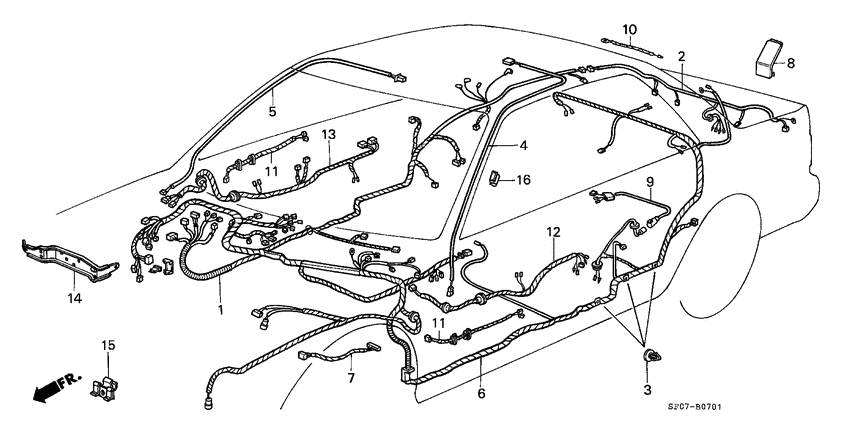

Cabin wire harness Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32107-SB0-677
Harness
00000000 - 0C300000 |
32107-SB0-677 |
— | ||
|
2
|
2
32108-SB0-673
Harness
00000000 - 0C300000 |
32108-SB0-673 |
— | ||
|
3
|
3
32124-SB0-000 ClipWIRE HARNESS (BLACK) |
32124-SB0-000 |
from US $2.17 |
||
|
4
|
4
32155-SB0-010
Cord
00000000 - 0C300000 |
32155-SB0-010 |
— | ||
|
5
|
5
32156-SB0-020
Cord
00000000 - 0C300000 |
32156-SB0-020 |
— | ||
|
6
|
6
32157-SB0-776
Harness
00000000 - 0C300000 |
32157-SB0-776 |
— | ||
|
7
|
7
32159-SB0-020
Sub cord
00000000 - 0C300000 |
32159-SB0-020 |
— | ||
|
8
|
8
32161-SB0-010 ProtectorRR. WIRE HARNESS 00000000 - 0C400000 |
32161-SB0-010 |
US $4.34 |
||
|
9
|
9
32170-SB0-020
Cord
0C126113 - |
32170-SB0-020 |
— | ||
|
10
|
10
32202-SB0-000
Cord
|
32202-SB0-000 |
— | ||
|
11
|
11
32750-SB0-010
Harness
00000000 - 0C300000 |
32750-SB0-010 |
— | ||
|
14
|
14
32758-SB0-672
Bracket
|
32758-SB0-672 |
— | ||
|
15
|
15
90605-SB0-000
Clip b
|
90605-SB0-000 |
— | ||
|
16
|
16
90613-SB0-020
Clip
00000000 - 0C400000 |
90613-SB0-020 |
— |
