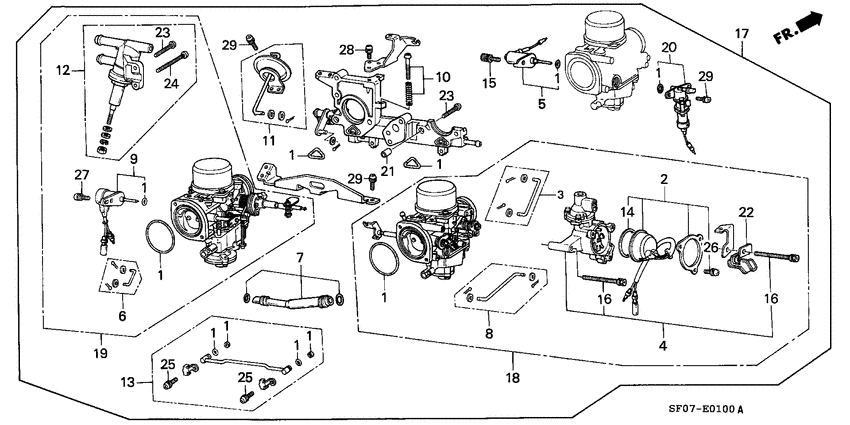

Carburetor Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-PC7-661 Gasket set00000000 - 3700000 |
16010-PC7-661 |
US $61.70 |
||
|
2
|
2
16014-PC7-661 Cap setCHOKE 00000000 - 3700000 |
16014-PC7-661 |
US $130.56 |
||
|
3
|
3
16017-PC6-015
Rod set
|
16017-PC6-015 |
— | ||
|
4
|
4
16020-PC6-671 Case setBIMETAL 00000000 - 3700000 |
16020-PC6-671 |
US $185.60 |
||
|
5
|
5
16024-PC7-661
Solenoid
00000000 - 3700000 |
16024-PC7-661 |
— | ||
|
6
|
6
16025-PC6-005
Rod set
|
16025-PC6-005 |
— | ||
|
7
|
7
16026-PC7-661
Joint set
|
16026-PC7-661 |
— | ||
|
8
|
8
16032-PC6-005
Rod set
|
16032-PC6-005 |
— | ||
|
9
|
9
16036-PC6-901
Solenoid
00000000 - 3700000 |
16036-PC6-901 |
— | ||
|
10
|
10
16038-PC6-661
Screw set
|
16038-PC6-661 |
— | ||
|
11
|
11
16043-PC7-661
Opener set
|
16043-PC7-661 |
— | ||
|
12
|
12
16044-PC6-005
Wax assy.
|
16044-PC6-005 |
— | ||
|
13
|
13
16047-PC6-005
Joint set
|
16047-PC6-005 |
— | ||
|
15
|
15
16080-PC7-661
Screw
|
16080-PC7-661 |
— | ||
|
16
|
16
16083-PC2-005
Bolt-washer
|
16083-PC2-005 |
— | ||
|
17
|
17
16100-PC7-665
Carburetor assy
00000000 - 4700000 |
16100-PC7-665 |
— | ||
|
18
|
18
16101-PC7-664 Carburetor assy.R. (VF05A D) 00000000 - 3700000 |
16101-PC7-664 |
US $686.08 |
||
|
19
|
19
16102-PC7-664 Carburetor assy.L. (VF05A D) 00000000 - 3700000 |
16102-PC7-664 |
US $686.08 |
||
|
20
|
20
16120-PC6-661
Valve assy.
|
16120-PC6-661 |
— | ||
|
21
|
21
16178-463-004
Pin
|
16178-463-004 |
— | ||
|
23
|
23
93500-060-250-H ScrewPAN, 6X25 |
93500-060-250-H |
from US $0.52 |
||
|
24
|
24
93500-060-350-H ScrewPAN, 6X35 |
93500-060-350-H |
US $0.52 |
||
|
25
|
25
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
26
|
26
16158-PB2-691
Rivet
|
16158-PB2-691 |
— | ||
|
27
|
27
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
28
|
28
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
29
|
29
93892-050-140-8 Screw-washer5X14 |
93892-050-140-8 |
from US $0.47 |
