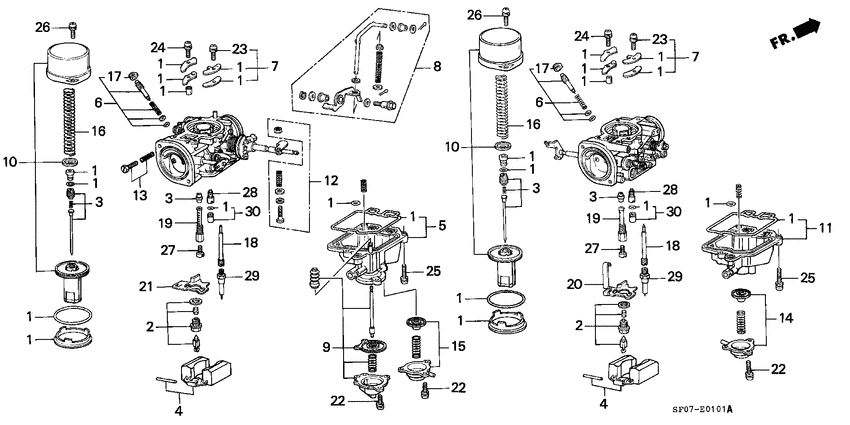

Carburetor components Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-PC7-661 Gasket set00000000 - 3700000 |
16010-PC7-661 |
US $61.70 |
||
|
2
|
2
16011-PC6-005
Valve set
|
16011-PC6-005 |
— | ||
|
3
|
3
16012-PC6-661
Needle Set
|
16012-PC6-661 |
— | ||
|
4
|
4
16013-PB9-005 Float set |
16013-PB9-005 |
US $48.42 |
||
|
5
|
5
16015-PC6-005
Chamber set a
|
16015-PC6-005 |
— | ||
|
6
|
6
16016-PC7-661
Screw set
|
16016-PC7-661 |
— | ||
|
7
|
7
16018-PC6-005
Plate set
|
16018-PC6-005 |
— | ||
|
8
|
8
16019-PC6-005
Rod set
|
16019-PC6-005 |
— | ||
|
9
|
9
16021-PC6-005
Diaphragm set
|
16021-PC6-005 |
— | ||
|
10
|
10
16022-PC6-005
Piston set
|
16022-PC6-005 |
— | ||
|
11
|
11
16023-PC7-671
Chamber set b
|
16023-PC7-671 |
— | ||
|
12
|
12
16029-PC6-005
Screw set
|
16029-PC6-005 |
— | ||
|
13
|
13
16031-PC6-005
Screw set
|
16031-PC6-005 |
— | ||
|
14
|
14
16041-PC6-005
Economizer set a
|
16041-PC6-005 |
— | ||
|
15
|
15
16042-PC6-005
Economizer set b
|
16042-PC6-005 |
— | ||
|
16
|
16
16050-PC6-661
Spring
|
16050-PC6-661 |
— | ||
|
17
|
17
16109-PC6-661
Cap
|
16109-PC6-661 |
— | ||
|
18
|
18
16164-PC7-601
Nozzle
|
16164-PC7-601 |
— | ||
|
19
|
19
16165-PC7-661
Holder
|
16165-PC7-661 |
— | ||
|
20
|
20
16184-PC6-005
Plate
|
16184-PC6-005 |
— | ||
|
21
|
21
16185-PC6-005
Plate
|
16185-PC6-005 |
— | ||
|
22
|
22
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
23
|
23
93892-040-140-8 Screw-washer4X14 |
93892-040-140-8 |
from US $0.44 |
||
|
24
|
24
16028-PC7-661
Screw set
|
16028-PC7-661 |
— | ||
|
25
|
25
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
26
|
26
93892-050-160-8 Screw-washer5X16 |
93892-050-160-8 |
from US $0.44 |
||
|
27
|
27
99101-393-1600
Jet
|
99101-393-1600 |
— | ||
|
28
|
28
99104-PC7-0420 JetSLOW, #42 |
99104-PC7-0420 |
US $6.51 |
||
|
29
|
29
99112-PC6-0500 JetECONOMIZER, #50 |
99112-PC6-0500 |
US $10.95 |
||
|
30
|
30
99201-PC7-075-0 Jet setMAIN, #75 |
99201-PC7-075-0 |
US $6.51 |
