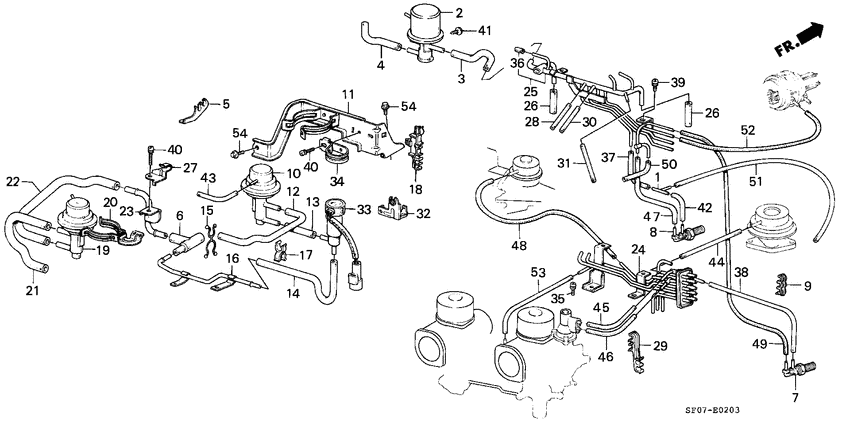

Carburetor tubing (3) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17321-PC7-661 JointTHREE WAY (#50) |
17321-PC7-661 |
US $10.22 |
||
|
2
|
2
17340-PC7-661
Valve
|
17340-PC7-661 |
— | ||
|
3
|
3
17347-PC6-000
Tube b
|
17347-PC6-000 |
— | ||
|
4
|
4
17349-PC6-660
Tube c
|
17349-PC6-660 |
— | ||
|
5
|
5
17351-PC7-660
Clamp
|
17351-PC7-660 |
— | ||
|
6
|
6
17352-PC7-661
Joint
|
17352-PC7-661 |
— | ||
|
7
|
7
17360-PA0-661
Thermovalve
|
17360-PA0-661 |
— | ||
|
8
|
8
17360-PA6-661
Thermovalve
|
17360-PA6-661 |
— | ||
|
9
|
9
17361-PC6-000 ClampTUBE, 7.5X3 |
17361-PC6-000 |
US $1.68 |
||
|
10
|
10
17380-PC7-661
Valve assy. a
|
17380-PC7-661 |
— | ||
|
11
|
11
17381-PC7-660
Base comp. a
|
17381-PC7-660 |
— | ||
|
12
|
12
17382-PC7-661
Tube a
|
17382-PC7-661 |
— | ||
|
13
|
13
17383-PC7-660
Tube
|
17383-PC7-660 |
— | ||
|
14
|
14
17384-PC7-660
Tube a
|
17384-PC7-660 |
— | ||
|
15
|
15
17386-PC7-661 ClampAIR TUBE |
17386-PC7-661 |
from US $2.66 |
||
|
16
|
16
17387-PC7-660
Pipe
|
17387-PC7-660 |
— | ||
|
17
|
17
17388-PC7-660
Clamp a
|
17388-PC7-660 |
— | ||
|
18
|
18
17389-PC7-662
Clamp
|
17389-PC7-662 |
— | ||
|
19
|
19
17390-PC7-662
Valve assy. b
|
17390-PC7-662 |
— | ||
|
20
|
20
17391-PC7-660
Stay
|
17391-PC7-660 |
— | ||
|
21
|
21
17392-PC7-660
Tube b
|
17392-PC7-660 |
— | ||
|
22
|
22
17393-PC7-661
Tube
|
17393-PC7-661 |
— | ||
|
23
|
23
17394-PC7-660
Pipe
|
17394-PC7-660 |
— | ||
|
24
|
24
17400-PC7-661
Pipe a
|
17400-PC7-661 |
— | ||
|
25
|
25
17413-PC7-661
Pipe
|
17413-PC7-661 |
— | ||
|
26
|
26
17415-PC6-660
Tube
|
17415-PC6-660 |
— | ||
|
27
|
27
17416-PC6-000
Clamp
|
17416-PC6-000 |
— | ||
|
28
|
28
17416-PC6-660
Tube
|
17416-PC6-660 |
— | ||
|
29
|
29
17417-PC6-000
Clamp
|
17417-PC6-000 |
— | ||
|
30
|
30
17418-PC6-660
Tube
|
17418-PC6-660 |
— | ||
|
31
|
31
17421-PC7-661
Tube
|
17421-PC7-661 |
— | ||
|
32
|
32
36179-PC7-661
Clamp a
|
36179-PC7-661 |
— | ||
|
33
|
33
36180-PC7-661
Valve assy. a
00000000 - 4700000 |
36180-PC7-661 |
— | ||
|
34
|
34
36181-PC7-660
Clamp
|
36181-PC7-660 |
— | ||
|
35
|
35
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
36
|
36
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
37
|
37
91431-PC6-660
Tube comp
|
91431-PC6-660 |
— | ||
|
38
|
38
91432-PC6-660
Tube comp
|
91432-PC6-660 |
— | ||
|
39
|
39
93500-050-081-H ScrewPAN, 5X8 |
93500-050-081-H |
from US $0.37 |
||
| replacement | |||||
|
39
|
39
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
40
|
40
93892-050-160-8 Screw-washer5X16 |
93892-050-160-8 |
from US $0.44 |
||
|
41
|
41
93903-25280 ScrewTAPPING, 5X12 |
93903-25280 |
from US $0.22 |
||
|
42
|
42
95005-350-351-K Tube3.5X35 (95005-35001-10M) |
95005-350-351-K |
US $0.89 |
||
|
43
|
43
95005-350-851-F Tube3.5X85 (95005-35001-10M) |
95005-350-851-F |
US $1.18 |
||
|
44
|
44
95005-350-851-G Tube3.5X85 (95005-35001-10M) |
95005-350-851-G |
US $1.18 |
||
|
45
|
45
95005-350-851-J Tube3.5X85 (95005-35001-10M) |
95005-350-851-J |
US $1.18 |
||
|
46
|
46
95005-350-851-L Tube3.5X85 (95005-35001-10M) |
95005-350-851-L |
US $1.18 |
||
|
47
|
47
95005-351-101-H Tube3.5X110 (95005-35001-10M) |
95005-351-101-H |
US $1.55 |
||
|
48
|
48
95005-351-101-5 Tube3.5X110 (95005-35001-10M) |
95005-351-101-5 |
US $1.55 |
||
|
49
|
49
95005-352-201-H Tube3.5X220 (95005-35001-10M) |
95005-352-201-H |
US $2.81 |
||
|
50
|
50
95005-352-401-H Tube3.5X240 (95005-35001-10M) |
95005-352-401-H |
US $2.81 |
||
|
51
|
51
95005-353-701-K Tube3.5X370 (95005-35001-10M) |
95005-353-701-K |
US $4.14 |
||
|
52
|
52
95005-354-601-2 Tube3.5X460 (95005-35001-10M) |
95005-354-601-2 |
US $5.03 |
||
|
53
|
53
95005-450-851-B Tube4.5X85 (95005-45001-10M) |
95005-450-851-B |
US $1.55 |
||
|
54
|
54
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
54
|
54
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
