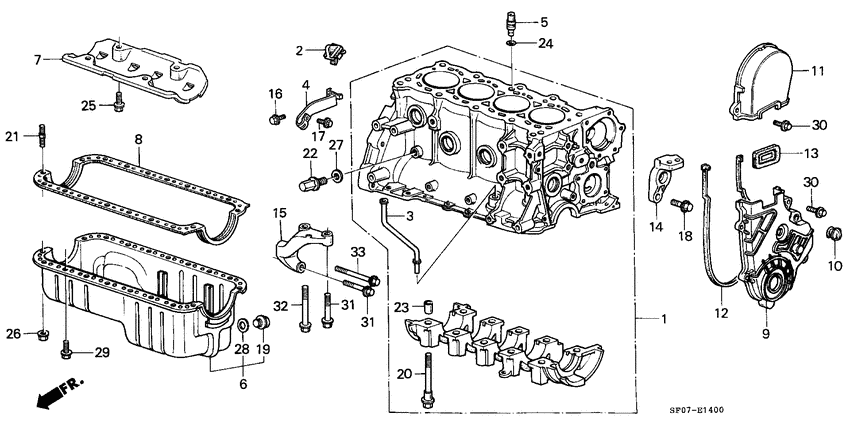

Cylinder block/oil pan Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-PD6-000
Block assy
00000000 - 3700000 |
11000-PD6-000 |
— | ||
|
2
|
2
11109-PC6-000
Seal
|
11109-PC6-000 |
— | ||
|
3
|
3
11111-PC6-300
Pipe
|
11111-PC6-300 |
— | ||
|
4
|
4
11113-PD2-000
Stay
00000000 - 3700000 |
11113-PD2-000 |
— | ||
|
5
|
5
11116-PC6-000 OrificeOIL CONTROL 00000000 - 3700000 |
11116-PC6-000 |
US $6.02 |
||
|
6
|
6
11200-PC6-020 Pan compOIL 00000000 - 3700000 |
11200-PC6-020 |
US $244.48 |
||
|
8
|
8
11251-PC6-000 GasketOIL PAN |
11251-PC6-000 |
US $34.43 |
||
|
9
|
9
11810-PD2-000
Cover comp.
|
11810-PD2-000 |
— | ||
|
10
|
10
11812-PC6-000
Seal
|
11812-PC6-000 |
— | ||
|
11
|
11
11820-PD2-010
Cover comp.
|
11820-PD2-010 |
— | ||
|
12
|
12
11831-PC6-010
Rubber
|
11831-PC6-010 |
— | ||
|
13
|
13
11840-PD2-010
Rubber c
|
11840-PD2-010 |
— | ||
|
14
|
14
11910-PD2-000
Bracket
|
11910-PD2-000 |
— | ||
|
15
|
15
11951-PD2-000
Stiffener
|
11951-PD2-000 |
— | ||
|
16
|
16
90002-PD2-000 BoltFLANGE, 8X16 |
90002-PD2-000 |
US $2.03 |
||
|
17
|
17
90003-PD2-000
Bolt-washer
|
90003-PD2-000 |
— | ||
|
18
|
18
90006-642-000
Bolt
|
90006-642-000 |
— | ||
|
19
|
19
90009-PC6-000
Bolt
00000000 - 3700000 |
90009-PC6-000 |
— | ||
| replacement | |||||
|
19
|
19
90009-PH1-000 BoltDRAIN PLUG, 14MM 00000000 - 3700000 |
90009-PH1-000 |
from US $4.44 |
||
|
20
|
20
90018-PC6-003
Bolt
|
90018-PC6-003 |
— | ||
|
21
|
21
90041-PC6-000 BoltSTUD, 6X28 |
90041-PC6-000 |
from US $2.87 |
||
|
22
|
22
90061-PC6-003 BoltDRAIN PLUG, 12MM 00000000 - 3700000 |
90061-PC6-003 |
US $7 |
||
|
23
|
23
90715-PC6-000 Dowel pin13X20 |
90715-PC6-000 |
from US $2.25 |
||
|
24
|
24
91305-371-003 O-ring6.5X1.5 |
91305-371-003 |
from US $3.25 |
||
|
26
|
26
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
27
|
27
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
28
|
28
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
29
|
29
95700-060-160-8 BoltFLANGE, 6X16 |
95700-060-160-8 |
US $1.70 |
||
| replacement | |||||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
30
|
30
95700-060-200-8
Bolt
|
95700-060-200-8 |
— | ||
| replacement | |||||
|
30
|
30
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
31
|
31
95700-100-350-8 BoltFLANGE, 10X35 |
95700-100-350-8 |
US $0.81 |
||
|
32
|
32
95700-100-500-8 BoltFLANGE, 10X50 |
95700-100-500-8 |
from US $0.89 |
||
| replacement | |||||
|
32
|
32
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
|
33
|
33
95700-100-550-8 BoltFLANGE, 10X55 |
95700-100-550-8 |
US $0.89 |
||
