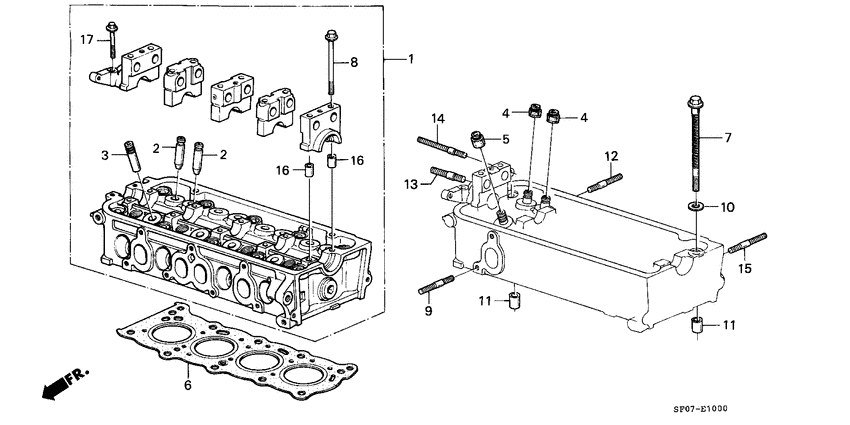

Cylinder head Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-PC7-030
Head assy
00000000 - 3700000 |
12100-PC7-030 |
— | ||
|
2
|
2
12204-PC6-305
Guide
|
12204-PC6-305 |
— | ||
|
3
|
3
12205-689-305
Guide
|
12205-689-305 |
— | ||
|
4
|
4
12210-PD2-004
Seal a
|
12210-PD2-004 |
— | ||
|
4
|
4
12210-PD2-003 Seal aVALVE STEM (ARAI) |
12210-PD2-003 |
from US $4.56 |
||
|
5
|
5
12211-PD2-004
Seal b
|
12211-PD2-004 |
— | ||
|
5
|
5
12211-689-013 Seal bVALVE STEM (ARAI) 00000000 - 3700000 |
12211-689-013 |
US $7.42 |
||
|
6
|
6
12251-PC7-662
Gasket
00000000 - 3700000 |
12251-PC7-662 |
— | ||
|
6
|
6
12251-PD6-003
Gasket
00000000 - 3700000 |
12251-PD6-003 |
— | ||
|
7
|
7
90005-PC6-003
Bolt
|
90005-PC6-003 |
— | ||
|
8
|
8
90005-634-003
Bolt
|
90005-634-003 |
— | ||
|
9
|
9
90062-657-310
Bolt
00000000 - 4700000 |
90062-657-310 |
— | ||
|
10
|
10
90438-PC6-000
Washer
|
90438-PC6-000 |
— | ||
|
11
|
11
90719-657-000 Dowel pin14X20 |
90719-657-000 |
US $2.11 |
||
| replacement | |||||
|
11
|
11
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
12
|
12
92900-08025-1B BoltSTUD, 8X25 |
92900-08025-1B |
from US $0.74 |
||
|
13
|
13
92900-08025-0B BoltSTUD, 8X25 00000000 - 3700000 |
92900-08025-0B |
from US $0.90 |
||
|
16
|
16
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
17
|
17
95700-060-400-8 BoltFLANGE, 6X40 |
95700-060-400-8 |
US $2.01 |
||
| replacement | |||||
|
17
|
17
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
