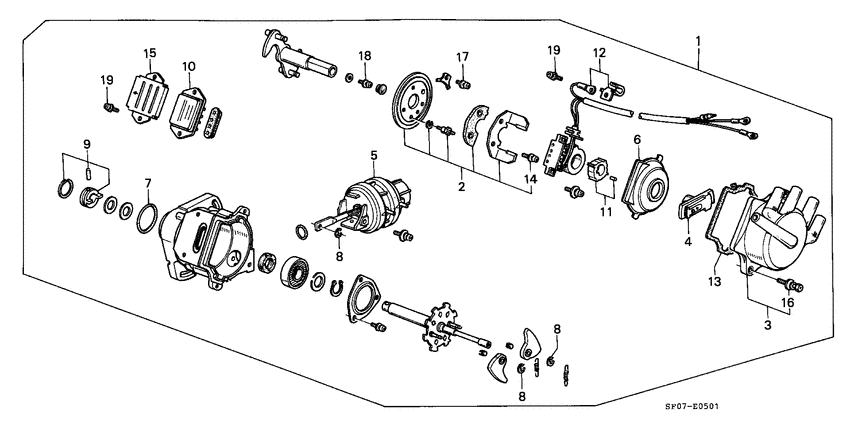

Distributor components (TEC; 2) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-PC7-662 Distributor assyTEC) (TD-13K 00000000 - 4700452 |
30100-PC7-662 |
US $739.84 |
||
|
2
|
2
30101-PD2-006
Plate assy.
|
30101-PD2-006 |
— | ||
|
3
|
3
30102-PC7-662
Cap assy.
2528458 - |
30102-PC7-662 |
— | ||
|
3
|
3
30102-PC7-661 Cap assy.DISTRIBUTOR 00000000 - 2528457 |
30102-PC7-661 |
US $27.90 |
||
|
4
|
4
30103-PA1-732 HeadROTOR |
30103-PA1-732 |
US $9.80 |
||
|
5
|
5
30104-PC7-663
Control assy.
|
30104-PC7-663 |
— | ||
|
6
|
6
30107-PE1-006
Cover
2528458 - |
30107-PE1-006 |
— | ||
|
7
|
7
30110-PA1-732 O-ring26.4X3.1 (TEC) |
30110-PA1-732 |
from US $2.43 |
||
|
8
|
8
30111-PA1-733
E-ring
|
30111-PA1-733 |
— | ||
|
9
|
9
30113-PD2-006
Coupling set
|
30113-PD2-006 |
— | ||
|
10
|
10
30120-PA6-921 Igniter unitNEC |
30120-PA6-921 |
US $226.56 |
||
|
11
|
11
30126-PC7-661
Rotor set
|
30126-PC7-661 |
— | ||
|
12
|
12
30131-PC7-661
Harness assy
|
30131-PC7-661 |
— | ||
|
13
|
13
30132-PA6-921
Gasket
|
30132-PA6-921 |
— | ||
|
14
|
14
30148-PA6-921
Screw-washer
|
30148-PA6-921 |
— | ||
|
15
|
15
30161-PB1-016
Case
|
30161-PB1-016 |
— | ||
|
16
|
16
90048-PC1-004
Bolt-washer
00000000 - 2528457 |
90048-PC1-004 |
— | ||
|
17
|
17
93892-040-081-8 Screw-washer4X8 |
93892-040-081-8 |
from US $0.44 |
||
| replacement | |||||
|
17
|
17
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
18
|
18
93892-040-101-8 Screw-washer4X10 |
93892-040-101-8 |
from US $0.44 |
||
| replacement | |||||
|
18
|
18
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
19
|
19
93892-040-141-8 Screw-washer4X14 |
93892-040-141-8 |
from US $0.44 |
||
| replacement | |||||
|
19
|
19
93892-040-140-8 Screw-washer4X14 |
93892-040-140-8 |
from US $0.44 |
||
