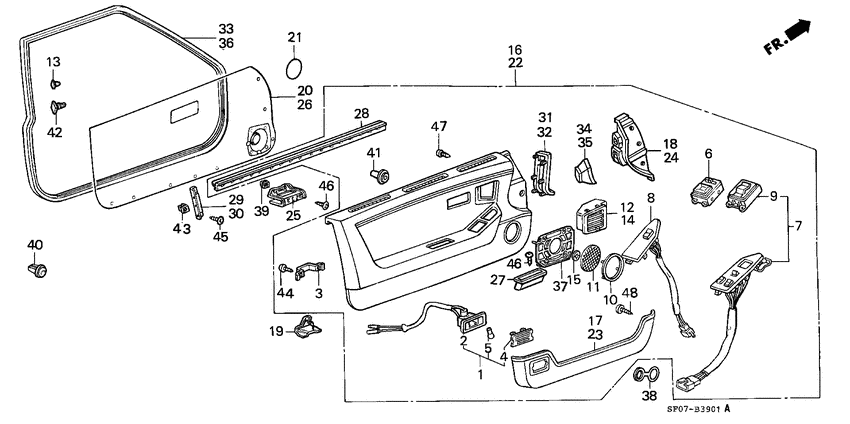

Door lining Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
39126-SB0-960ZA RingDOOR SPEAKER *B32L* |
39126-SB0-960ZA |
US $12.60 |
||
|
11
|
11
39127-SB0-960ZA PlateDOOR SPEAKER *NH1L* |
39127-SB0-960ZA |
US $15.74 |
||
|
12
|
12
73860-SB0-962ZA Outlet assyR. *B32L* |
73860-SB0-962ZA |
US $34.43 |
||
|
13
|
13
73862-672-003
Clip
|
73862-672-003 |
— | ||
|
14
|
14
73880-SB0-962ZA Outlet assyL. *B32L* |
73880-SB0-962ZA |
US $34.43 |
||
|
15
|
15
74825-692-000 NutSPIRE |
74825-692-000 |
US $1.75 |
||
|
16
|
16
75820-SB0-675ZB LiningR. FR. DOOR *B32L* |
75820-SB0-675ZB |
US $733.44 |
||
|
17
|
17
75821-SB0-672ZE Pocket assyR. *B34L* |
75821-SB0-672ZE |
US $98.56 |
||
|
18
|
18
75822-SB0-922ZC GarnishR. IN. *B32L* 00000000 - 0C300000 |
75822-SB0-922ZC |
US $31.23 |
||
|
19
|
19
75825-SB0-980
Bracket b
|
75825-SB0-980 |
— | ||
|
20
|
20
75826-SB0-680
Seal a
|
75826-SB0-680 |
— | ||
|
21
|
21
75826-605-300 SealDOOR HOLE, 30MM (CIRCLE) (BLACK) |
75826-605-300 |
from US $2.10 |
||
|
22
|
22
75830-SB0-675ZB LiningL. FR. DOOR *B32L* |
75830-SB0-675ZB |
US $733.44 |
||
|
23
|
23
75831-SB0-672ZE Pocket assyL. *B34L* |
75831-SB0-672ZE |
US $98.56 |
||
|
24
|
24
75832-SB0-922ZC GarnishL. IN. *B32L* 00000000 - 0C300000 |
75832-SB0-922ZC |
US $31.23 |
||
|
25
|
25
75835-SB0-920
Bracket
|
75835-SB0-920 |
— | ||
|
26
|
26
75836-SB0-680
Seal a
|
75836-SB0-680 |
— | ||
|
27
|
27
75837-SB0-003ZA PocketDOOR PULL *B32L* 00000000 - 0C300000 |
75837-SB0-003ZA |
US $19.97 |
||
|
28
|
28
75851-SB0-670
Weatherstrip
|
75851-SB0-670 |
— | ||
|
29
|
29
75852-SB0-000
Bracket
|
75852-SB0-000 |
— | ||
|
30
|
30
75853-SB0-000
Bracket
|
75853-SB0-000 |
— | ||
|
31
|
31
75862-SB0-003
Seal
|
75862-SB0-003 |
— | ||
|
32
|
32
75872-SB0-003
Seal
|
75872-SB0-003 |
— | ||
|
33
|
33
75880-SB0-004
Weatherstrip
00000000 - 0C300000 |
75880-SB0-004 |
— | ||
|
33
|
33
75880-SB0-005
Weatherstrip
|
75880-SB0-005 |
— | ||
|
34
|
34
75883-SB0-921
Duct b
|
75883-SB0-921 |
— | ||
|
35
|
35
75884-SB0-921
Duct b
|
75884-SB0-921 |
— | ||
|
36
|
36
75885-SB0-005
Weatherstrip
|
75885-SB0-005 |
— | ||
|
36
|
36
75885-SB0-004
Weatherstrip
00000000 - 0C300000 |
75885-SB0-004 |
— | ||
|
37
|
37
75885-SB0-921
Plate
|
75885-SB0-921 |
— | ||
|
38
|
38
90605-SA5-013ZM CoverSCREW, 5MM *NH67L* 00000000 - 0C300000 |
90605-SA5-013ZM |
US $2.59 |
||
|
38
|
38
90605-SA5-013ZL
Cover
00000000 - 0C300000 |
90605-SA5-013ZL |
— | ||
|
39
|
39
90662-671-003 GrommetSCREW, 5MM (WHITE) 00000000 - 0C400000 |
90662-671-003 |
US $2.59 |
||
|
40
|
40
90663-SB0-003 GrommetSCREW, 5MM(YELLOW) |
90663-SB0-003 |
US $1.63 |
||
|
41
|
41
90663-692-003 ClipLINING |
90663-692-003 |
US $4.62 |
||
|
42
|
42
90664-671-003 ClipCANOE |
90664-671-003 |
from US $3.40 |
||
|
43
|
43
90681-693-000 GrommetSCREW, 4MM |
90681-693-000 |
US $2.52 |
||
|
45
|
45
93903-14480 ScrewTAPPING, 4X16 |
93903-14480 |
US $0.37 |
||
|
46
|
46
93903-15380 ScrewTAPPING, 5X16 |
93903-15380 |
from US $0.37 |
||
|
47
|
47
93903-22280 ScrewTAPPING, 3X10 |
93903-22280 |
from US $0.37 |
||
|
48
|
48
93903-24420 ScrewTAPPING, 4X16 |
93903-24420 |
from US $0.37 |
