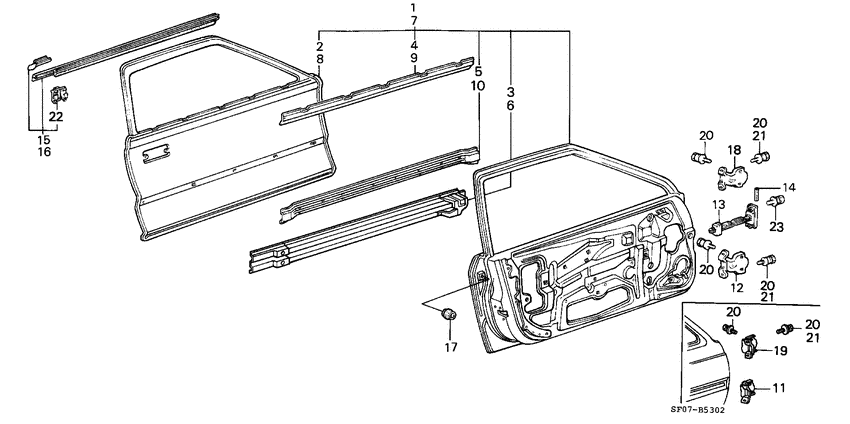

Door panels Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-SB0-671ZZ Panel compR. FR. DOOR |
75110-SB0-671ZZ |
US $1,472 |
||
|
2
|
2
75111-SB0-670ZZ
Skin
00000000 - 0C300000 |
75111-SB0-670ZZ |
— | ||
|
3
|
3
75125-SB0-670ZZ
Beam comp
|
75125-SB0-670ZZ |
— | ||
|
4
|
4
75126-SB0-300ZZ
Stiffener
|
75126-SB0-300ZZ |
— | ||
|
6
|
6
75135-SB0-670ZZ
Beam comp
|
75135-SB0-670ZZ |
— | ||
|
7
|
7
75150-SB0-671ZZ Panel compL. FR. DOOR |
75150-SB0-671ZZ |
US $1,472 |
||
|
8
|
8
75151-SB0-670ZZ
Skin
00000000 - 0C300000 |
75151-SB0-670ZZ |
— | ||
|
9
|
9
75166-SB0-300ZZ
Stiffener
|
75166-SB0-300ZZ |
— | ||
|
11
|
11
75710-SA0-013ZZ
Hinge a
|
75710-SA0-013ZZ |
— | ||
|
12
|
12
75720-SA0-013ZZ
Hinge b
|
75720-SA0-013ZZ |
— | ||
|
13
|
13
75750-SB0-003
Checker comp.
|
75750-SB0-003 |
— | ||
|
14
|
14
75760-SA5-003 PinDOOR CHECKER 00000000 - 0C401057 |
75760-SA5-003 |
US $4.62 |
||
|
15
|
15
75800-SB0-671
Molding assy.
|
75800-SB0-671 |
— | ||
|
16
|
16
75805-SB0-671
Molding assy.
|
75805-SB0-671 |
— | ||
|
17
|
17
75891-673-000
Stopper
|
75891-673-000 |
— | ||
|
18
|
18
76710-693-003ZZ
Hinge a
|
76710-693-003ZZ |
— | ||
|
19
|
19
76720-693-003ZZ
Hinge b
|
76720-693-003ZZ |
— | ||
|
20
|
20
90105-634-000 Bolt-washer (8x20)8x20 0C203902 - 0C300000 |
90105-634-000 |
US $3.02 |
||
|
21
|
21
90119-SA5-000
Bolt-washer
0C203902 - 0C400000 |
90119-SA5-000 |
— | ||
|
22
|
22
90654-SB0-000
Clip
|
90654-SB0-000 |
— | ||
|
23
|
23
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
23
|
23
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
