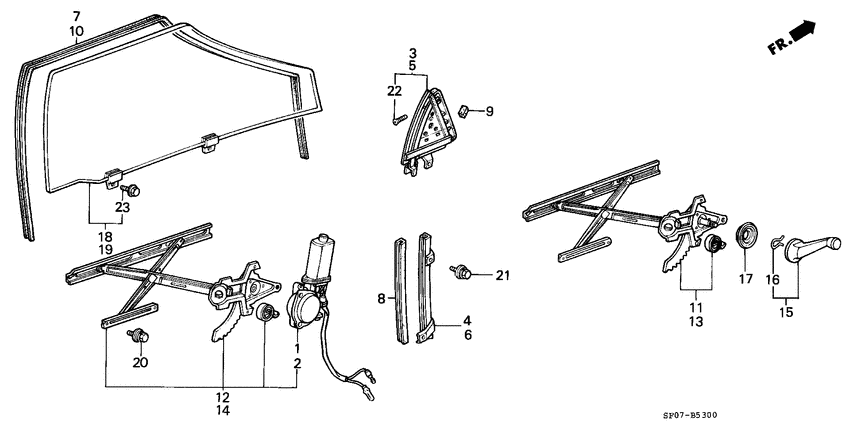

Door window/regulator Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
75213-SB0-671 HolderR. FR. SASH 00000000 - 0C300000 |
75213-SB0-671 |
US $39.94 |
||
|
3
|
3
75213-SB0-672
Holder
0C300001 - |
75213-SB0-672 |
— | ||
|
4
|
4
75216-SB0-670
Sash
|
75216-SB0-670 |
— | ||
|
5
|
5
75223-SB0-671 HolderL. FR. SASH 00000000 - 0C217818 |
75223-SB0-671 |
US $39.94 |
||
|
5
|
5
75223-SB0-672
Holder
0C217819 - |
75223-SB0-672 |
— | ||
|
6
|
6
75226-SB0-670
Sash
|
75226-SB0-670 |
— | ||
|
7
|
7
75231-SB0-675 ChannelR. FR. DOOR RUN 00000000 - 0C300000 |
75231-SB0-675 |
US $48.90 |
||
|
8
|
8
75232-SB0-000 ChannelLOWER SASH RUN 00000000 - 0C300000 |
75232-SB0-000 |
US $13.44 |
||
|
9
|
9
75233-SB0-000
Spacer
|
75233-SB0-000 |
— | ||
|
10
|
10
75236-SB0-675 ChannelL. FR. DOOR RUN 00000000 - 0C300000 |
75236-SB0-675 |
US $48.90 |
||
|
11
|
11
75310-SB0-013
Regulator
0C202004 - |
75310-SB0-013 |
— | ||
|
11
|
11
75310-SB0-014 RegulatorR. FR. DOOR (SHIRAKI) 0C202004 - |
75310-SB0-014 |
US $70.40 |
||
|
13
|
13
75320-SB0-013
Regulator
0C202004 - |
75320-SB0-013 |
— | ||
|
13
|
13
75320-SB0-014 RegulatorL. FR. DOOR (SHIRAKI) 0C202004 - |
75320-SB0-014 |
US $70.40 |
||
|
15
|
15
75330-SB0-004ZC Handle assyREGULATOR *NH67L* |
75330-SB0-004ZC |
US $16.77 |
||
|
15
|
15
75330-SB0-004ZE
Handle assy
|
75330-SB0-004ZE |
— | ||
|
15
|
15
75330-SB0-004ZA Handle assyREGULATOR *B32L* |
75330-SB0-004ZA |
US $16.77 |
||
|
16
|
16
75342-679-000 PinWINDOW REGULATOR HANDLE |
75342-679-000 |
US $2.04 |
||
|
17
|
17
75343-SB0-000
Escutcheon
|
75343-SB0-000 |
— | ||
|
18
|
18
75350-SB0-670
Glass assy
|
75350-SB0-670 |
— | ||
|
19
|
19
75360-SB0-670
Glass assy
|
75360-SB0-670 |
— | ||
|
20
|
20
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
20
|
20
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
21
|
21
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
21
|
21
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
22
|
22
93600-040-080-A ScrewFLAT, 4X8 |
93600-040-080-A |
US $0.37 |
||
|
23
|
23
95700-060-080-8 BoltFLANGE, 6X8 |
95700-060-080-8 |
US $0.52 |
||
