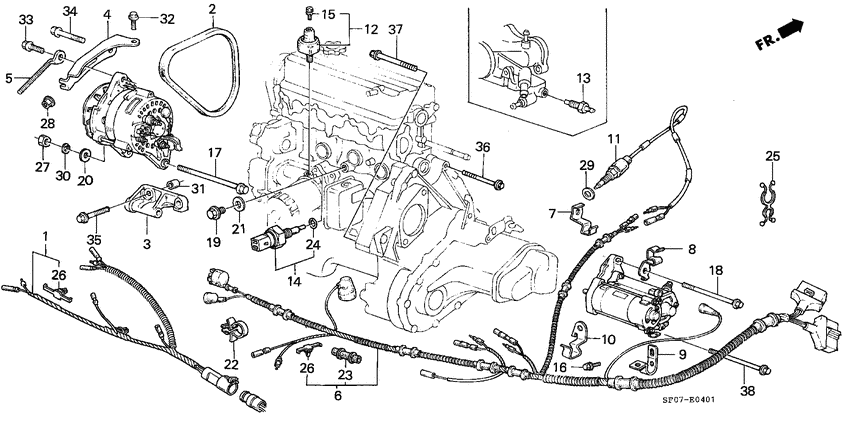

Engine electrical (2) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16121-PC7-660
Harness
|
16121-PC7-660 |
— | ||
|
2
|
2
31110-PA6-004
Belt
|
31110-PA6-004 |
— | ||
|
2
|
2
31110-PA6-003 BeltALTERNATOR (MITSUBOSHI) |
31110-PA6-003 |
US $16.26 |
||
|
3
|
3
31112-PC6-010 BracketALTERNATOR 00000000 - 3700000 |
31112-PC6-010 |
US $56.70 |
||
|
4
|
4
31113-PC6-000
Stay
|
31113-PC6-000 |
— | ||
|
5
|
5
31116-PC6-000
Bolt
|
31116-PC6-000 |
— | ||
|
6
|
6
32110-SB0-675
Sub cord
00000000 - 3700000 |
32110-SB0-675 |
— | ||
|
7
|
7
32741-PC6-000
Clamp
|
32741-PC6-000 |
— | ||
|
8
|
8
32742-PC6-000
Clamp b
|
32742-PC6-000 |
— | ||
|
9
|
9
32743-PC6-000
Clamp
|
32743-PC6-000 |
— | ||
|
10
|
10
32745-PC6-000
Clamp e
|
32745-PC6-000 |
— | ||
|
11
|
11
35600-PC6-003
Switch assy
|
35600-PC6-003 |
— | ||
|
12
|
12
37240-657-013 SwitchOIL PRESSURE (DENSO) 00000000 - 3700000 |
37240-657-013 |
US $44.46 |
||
| replacement | |||||
|
12
|
12
37240-P13-013 Switch assyOIL PRESSURE (DENSO) 00000000 - 3700000 |
37240-P13-013 |
from US $20.67 |
||
|
13
|
13
37750-PC1-004 Thermo unitDENSO |
37750-PC1-004 |
from US $50.86 |
||
|
14
|
14
37870-PD1-003 Sensor assyWATER TEMP |
37870-PD1-003 |
US $54.53 |
||
|
15
|
15
90002-PA6-003 Bolt-washer4X8 (DENSO) 00000000 - 3700000 |
90002-PA6-003 |
from US $1.68 |
||
|
16
|
16
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
17
|
17
90057-671-000 BoltALTERNATOR |
90057-671-000 |
from US $6.51 |
||
|
18
|
18
90075-PD3-000 BoltFLANGE, 10X43 |
90075-PD3-000 |
from US $3.03 |
||
|
20
|
20
90438-611-010
Washer
|
90438-611-010 |
— | ||
|
22
|
22
90624-SB0-003 ClipWIRE HARNESS |
90624-SB0-003 |
from US $1.33 |
||
|
24
|
24
91307-611-000 O-ring13.5X1.4 00000000 - 4700000 |
91307-611-000 |
from US $1.55 |
||
| replacement | |||||
|
24
|
24
91307-PH7-660 O-ring13.5X1.4 00000000 - 4700000 |
91307-PH7-660 |
from US $2.44 |
||
|
25
|
25
91464-671-003
Clamp a
00000000 - 3700000 |
91464-671-003 |
— | ||
|
26
|
26
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) 00000000 - 4700000 |
91507-693-003 |
from US $1.89 |
||
|
27
|
27
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
28
|
28
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
29
|
29
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
30
|
30
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
31
|
31
94304-12200 Dowel pin12X20 00000000 - 3700000 |
94304-12200 |
US $1.04 |
||
|
32
|
32
95700-080-180-8 BoltFLANGE, 8X18 |
95700-080-180-8 |
from US $0.59 |
||
|
33
|
33
95700-080-250-8 BoltFLANGE, 8X25 |
95700-080-250-8 |
from US $0.70 |
||
| replacement | |||||
|
33
|
33
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
|
34
|
34
95700-080-400-8 BoltFLANGE, 8X40 |
95700-080-400-8 |
from US $0.74 |
||
| replacement | |||||
|
34
|
34
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
35
|
35
95700-100-350-8 BoltFLANGE, 10X35 |
95700-100-350-8 |
US $0.81 |
||
|
36
|
36
95700-100-500-8 BoltFLANGE, 10X50 |
95700-100-500-8 |
from US $0.89 |
||
| replacement | |||||
|
36
|
36
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
|
37
|
37
95700-100-750-8 BoltFLANGE, 10X75 00000000 - 3700000 |
95700-100-750-8 |
US $1.18 |
||
|
38
|
38
95700-100-850-8 BoltFLANGE, 10X85 00000000 - 3700000 |
95700-100-850-8 |
US $1.48 |
||
