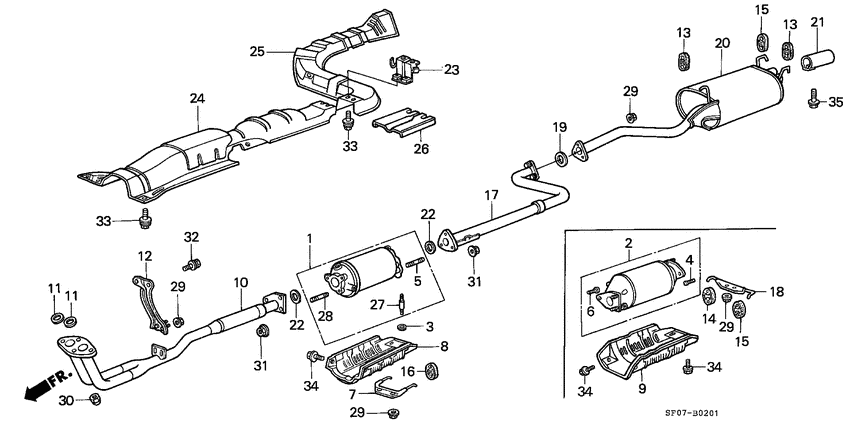

Exhaust pipe (2) Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18160-PC7-661 Converter comp. |
18160-PC7-661 |
US $1,108.48 |
||
|
1
|
1
18160-PC7-662 Converter comp. |
18160-PC7-662 |
US $1,108.48 |
||
|
3
|
3
18169-PC6-310
Collar
|
18169-PC6-310 |
— | ||
|
5
|
5
18176-PC6-300 BoltSTUD |
18176-PC6-300 |
US $6.86 |
||
|
7
|
7
18177-PC6-000
Bracket comp.
|
18177-PC6-000 |
— | ||
|
8
|
8
18181-PC6-010
Cover
|
18181-PC6-010 |
— | ||
|
10
|
10
18210-SB0-673
Pipe a
|
18210-SB0-673 |
— | ||
|
11
|
11
18212-SA7-003 GasketEX. PIPE (ISHINO) |
18212-SA7-003 |
from US $5.37 |
||
|
11
|
11
18212-SA7-004
Gasket
00000000 - 0C300000 |
18212-SA7-004 |
— | ||
|
12
|
12
18213-SB0-000
Stay
|
18213-SB0-000 |
— | ||
|
13
|
13
18215-SA0-000 RubberSILENCER MOUNTING (74X45X22) |
18215-SA0-000 |
from US $9.44 |
||
|
15
|
15
18215-SA5-600 Rubber bEX. PIPE MOUNTING (66X45X20) |
18215-SA5-600 |
US $13.18 |
||
|
16
|
16
18215-SA5-900
Rubber a
|
18215-SA5-900 |
— | ||
|
17
|
17
18220-SB0-003
Pipe b
|
18220-SB0-003 |
— | ||
|
19
|
19
18303-689-000
Gasket
|
18303-689-000 |
— | ||
|
20
|
20
18307-SB0-671
Silencer comp
00000000 - 0C308671 |
18307-SB0-671 |
— | ||
|
21
|
21
18310-692-003 FinisherEX. PIPE |
18310-692-003 |
US $40.06 |
||
|
22
|
22
18393-SA0-000
Gasket
|
18393-SA0-000 |
— | ||
|
23
|
23
70249-SA5-000
Bracket b
|
70249-SA5-000 |
— | ||
|
24
|
24
72201-SB0-000
Plate
|
72201-SB0-000 |
— | ||
|
25
|
25
72203-SB0-000
Plate
|
72203-SB0-000 |
— | ||
|
27
|
27
90025-PC6-000
Bolt
|
90025-PC6-000 |
— | ||
|
28
|
28
90066-PC6-300 BoltSTUD, 10X38 |
90066-PC6-300 |
US $6.30 |
||
|
29
|
29
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
30
|
30
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
31
|
31
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
32
|
32
93493-080-200-8 Bolt-washer8X20 |
93493-080-200-8 |
from US $0.74 |
||
| replacement | |||||
|
32
|
32
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
|
33
|
33
93495-060-120-8 Bolt-washer6X12 |
93495-060-120-8 |
US $0.59 |
||
|
34
|
34
95700-080-120-8 BoltFLANGE, 8X12 |
95700-080-120-8 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.62 |
||
|
35
|
35
95800-060-120-8 BoltFLANGE, 6X12 |
95800-060-120-8 |
US $0.52 |
||
