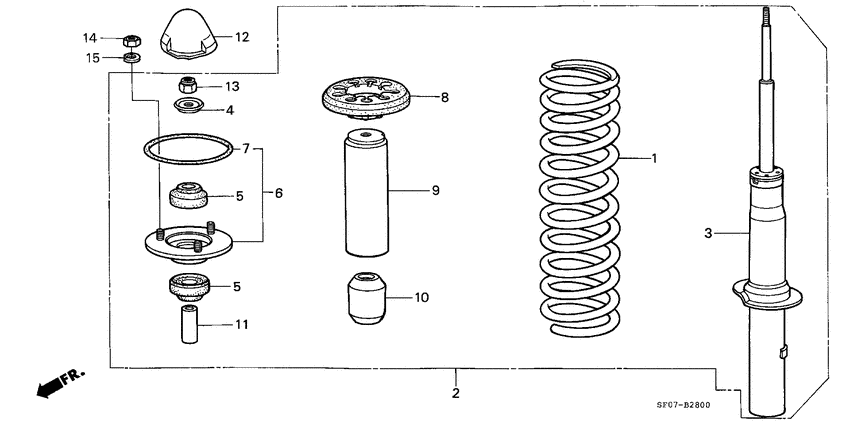

Front shock absorber Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51401-SB0-951
Spring
|
51401-SB0-951 |
— | ||
|
1
|
1
51401-SB0-952
Spring
|
51401-SB0-952 |
— | ||
|
2
|
2
51601-SB0-956 Absorber assyFR. SHOCK (SHOWA) |
51601-SB0-956 |
US $311.04 |
||
|
2
|
2
51601-SB0-953 Absorber assyFR. SHOCK (TOKICO) |
51601-SB0-953 |
US $311.04 |
||
|
3
|
3
51605-SB0-013 Absorber unitFR. SHOCK (TOKICO) 00000000 - 0C303383 |
51605-SB0-013 |
US $184.32 |
||
|
3
|
3
51605-SB0-024 Absorber unitFR. SHOCK (SHOWA) |
51605-SB0-024 |
US $184.32 |
||
|
4
|
4
51621-SB0-003 WasherSHOCK ABSORBER MOUNTING (TOKICO) |
51621-SB0-003 |
US $6.02 |
||
|
4
|
4
51621-SB0-004
Washer
|
51621-SB0-004 |
— | ||
| replacement | |||||
|
4
|
4
51621-SB0-003 WasherSHOCK ABSORBER MOUNTING (TOKICO) |
51621-SB0-003 |
US $6.02 |
||
|
5
|
5
51631-SB0-003
Rubber
|
51631-SB0-003 |
— | ||
| replacement | |||||
|
5
|
5
51631-S7S-J01 RUBBER DAMPER M |
51631-S7S-J01 |
US $7.65 |
||
|
5
|
5
51631-SB0-004
Rubber
|
51631-SB0-004 |
— | ||
| replacement | |||||
|
5
|
5
51631-S7S-J01 RUBBER DAMPER M |
51631-S7S-J01 |
US $7.65 |
||
|
6
|
6
51675-SB0-004
Base
|
51675-SB0-004 |
— | ||
|
6
|
6
51675-SB0-003
Base
|
51675-SB0-003 |
— | ||
|
7
|
7
51676-SB0-004
Seal
|
51676-SB0-004 |
— | ||
|
7
|
7
51676-SB0-003
Seal
|
51676-SB0-003 |
— | ||
|
8
|
8
51686-SB0-004
Rubber
|
51686-SB0-004 |
— | ||
|
8
|
8
51686-SB0-003
Rubber
|
51686-SB0-003 |
— | ||
|
9
|
9
51687-SB0-003
Cover
|
51687-SB0-003 |
— | ||
|
9
|
9
51687-SB0-004
Cover
|
51687-SB0-004 |
— | ||
|
10
|
10
51723-SB0-003
Rubber
|
51723-SB0-003 |
— | ||
|
10
|
10
51723-SB0-004 RubberBUMP STOPPER (INOUE M.T.P.) (FOR TOKICO) |
51723-SB0-004 |
US $13.06 |
||
|
11
|
11
51728-SB0-004 CollarSHOCK ABSORBER MOUNTING (SHOWA) |
51728-SB0-004 |
from US $3.18 |
||
|
11
|
11
51728-SB0-003 CollarSHOCK ABSORBER MOUNTING(TOKICO) |
51728-SB0-003 |
US $4.20 |
||
|
12
|
12
51932-SB0-000
Cap
|
51932-SB0-000 |
— | ||
|
13
|
13
90213-SB0-003 NutSELF-LOCK, 10MM (TOKICO) |
90213-SB0-003 |
US $3.36 |
||
|
14
|
14
94001-100-800-S NutHEX., 10MM 00000000 - 0C300000 |
94001-100-800-S |
from US $0.52 |
||
|
15
|
15
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
