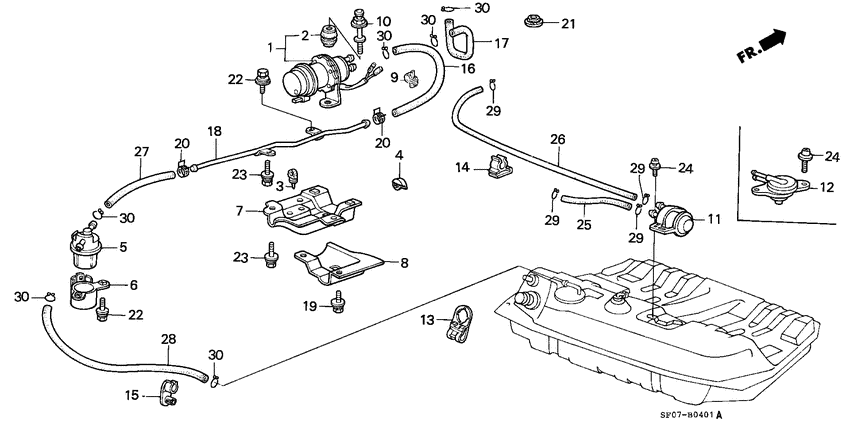

Fuel pump/fuel strainer Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16700-PC1-013 Pump assy.FUEL 00000000 - 0C300000 |
16700-PC1-013 |
US $168.96 |
||
|
2
|
2
16711-SA5-000
Rubber
|
16711-SA5-000 |
— | ||
|
3
|
3
16712-SA5-000
Rubber
|
16712-SA5-000 |
— | ||
|
5
|
5
16900-SA5-003
Strainer comp.
|
16900-SA5-003 |
— | ||
|
5
|
5
16900-SA5-004 Strainer comp.FUEL (TOYO ROKI) |
16900-SA5-004 |
from US $14.31 |
||
|
6
|
6
16902-SA5-000 CoverFUEL STRAINER |
16902-SA5-000 |
US $7.70 |
||
|
7
|
7
16910-SB0-020 BracketFUEL PUMP 00000000 - 0C300000 |
16910-SB0-020 |
US $33.54 |
||
|
8
|
8
16911-SB0-030
Dust shield
00000000 - 0C300000 |
16911-SB0-030 |
— | ||
|
9
|
9
16912-SB0-000
Clamp
|
16912-SB0-000 |
— | ||
|
10
|
10
16913-693-010
Bolt
|
16913-693-010 |
— | ||
|
12
|
12
17371-SA0-675
Valve
|
17371-SA0-675 |
— | ||
|
13
|
13
17555-SB0-003
Guide
|
17555-SB0-003 |
— | ||
|
14
|
14
17556-SB0-003
Clip
|
17556-SB0-003 |
— | ||
|
15
|
15
17557-SB0-003
Clip
|
17557-SB0-003 |
— | ||
|
16
|
16
17702-SB0-010
Tube a
|
17702-SB0-010 |
— | ||
|
17
|
17
17703-SB0-010
Tube b
|
17703-SB0-010 |
— | ||
|
18
|
18
17707-SB0-010
Pipe comp. a
00000000 - 0C300000 |
17707-SB0-010 |
— | ||
|
19
|
19
90671-SB2-000 BoltFR. FENDER (DACRO COATING) |
90671-SB2-000 |
US $3.29 |
||
|
20
|
20
90700-SA5-000
Clip
|
90700-SA5-000 |
— | ||
|
21
|
21
90854-SA0-680
Grommet
|
90854-SA0-680 |
— | ||
|
22
|
22
93495-060-120-8 Bolt-washer6X12 |
93495-060-120-8 |
US $0.59 |
||
|
23
|
23
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
23
|
23
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
24
|
24
93894-050-120-0 Screw-washer5X12 |
93894-050-120-0 |
from US $0.44 |
||
|
25
|
25
95001-451-153-0 TubeFUEL, 4.5X115 (95001-45001-60M) |
95001-451-153-0 |
US $1.26 |
||
|
26
|
26
95001-458-603-0 TubeFUEL, 4.5X860 (95001-45001-60M) |
95001-458-603-0 |
US $7.10 |
||
|
27
|
27
95001-751-503-0
Tube
|
95001-751-503-0 |
— | ||
|
28
|
28
95001-753-603-0 TubeFUEL, 7.3X360 (95001-75001-60M) |
95001-753-603-0 |
US $5.03 |
||
|
29
|
29
95002-02084 ClipTUBE (B8) |
95002-02084 |
from US $0.44 |
||
|
30
|
30
95002-02124 ClipTUBE(B12) |
95002-02124 |
from US $0.52 |
||
| replacement | |||||
|
30
|
30
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
