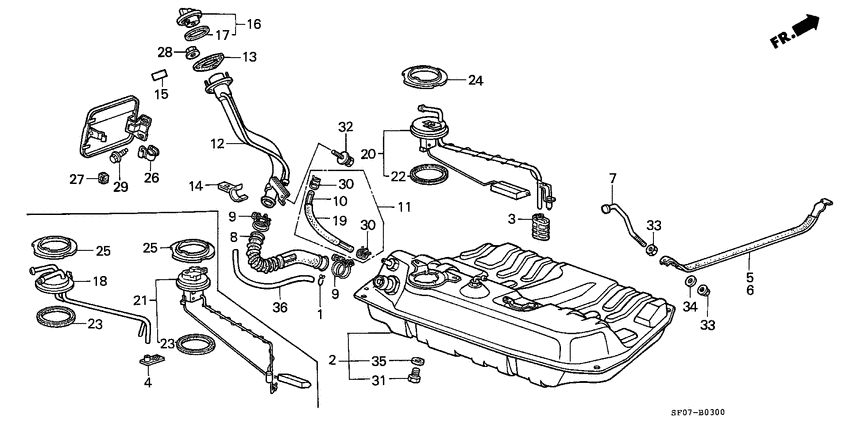

Fuel tank Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-551-000 ClipBREATHER TUBE |
15772-551-000 |
from US $3.09 |
||
|
2
|
2
17500-SB0-675
Tank comp.
00000000 - 0C300000 |
17500-SB0-675 |
— | ||
|
3
|
3
17517-SA5-003
Filter comp
|
17517-SA5-003 |
— | ||
|
5
|
5
17521-SB0-000
Band
|
17521-SB0-000 |
— | ||
|
6
|
6
17522-SB0-000
Band
|
17522-SB0-000 |
— | ||
|
7
|
7
17525-SB0-000
Bolt
|
17525-SB0-000 |
— | ||
|
8
|
8
17651-SB0-000
Tube
|
17651-SB0-000 |
— | ||
|
9
|
9
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
10
|
10
17652-SB0-000
Tube
00000000 - 0C300000 |
17652-SB0-000 |
— | ||
|
11
|
11
17658-SB0-020
Tube assy
|
17658-SB0-020 |
— | ||
|
12
|
12
17660-SB0-671 PipeFUEL FILLER 00000000 - 0C300000 |
17660-SB0-671 |
US $148.48 |
||
|
13
|
13
17662-692-000
Packing
|
17662-692-000 |
— | ||
|
14
|
14
17669-SB0-003
Clamp
|
17669-SB0-003 |
— | ||
|
15
|
15
17669-SB0-890
Label
|
17669-SB0-890 |
— | ||
|
16
|
16
17670-SA5-003
Cap comp.
00000000 - 0C400000 |
17670-SA5-003 |
— | ||
|
17
|
17
17682-679-013 PackingFUEL FILLER CAP |
17682-679-013 |
from US $4.59 |
||
|
19
|
19
17725-SB0-020
Insulator
|
17725-SB0-020 |
— | ||
|
20
|
20
37800-SB0-023 Meter unitFUEL (NS) |
37800-SB0-023 |
US $109.44 |
||
|
22
|
22
37801-SA5-000
Packing
|
37801-SA5-000 |
— | ||
|
24
|
24
37802-SA5-000
Retainer
|
37802-SA5-000 |
— | ||
|
26
|
26
70494-SB0-000
Spring
|
70494-SB0-000 |
— | ||
|
27
|
27
70496-SB0-000
Cushion
|
70496-SB0-000 |
— | ||
|
28
|
28
90103-SB0-000 NutFLANGE, 5MM |
90103-SB0-000 |
US $2.03 |
||
|
29
|
29
90147-634-003 BoltFENDER, 6X18 |
90147-634-003 |
from US $3.55 |
||
|
30
|
30
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
31
|
31
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
32
|
32
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
32
|
32
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
33
|
33
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
33
|
33
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
34
|
34
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
35
|
35
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
36
|
36
95003-400-486-0 TubeVINYL, 12X16X480 (95003-40001-60M) |
95003-400-486-0 |
US $4.59 |
||
