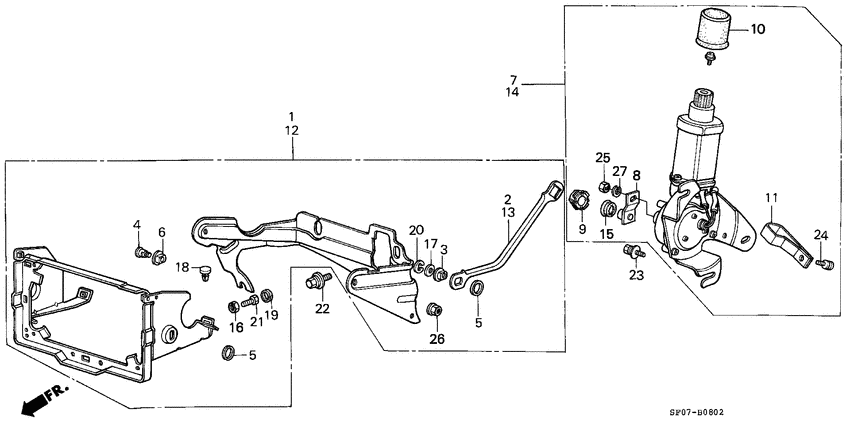

Headlight retractable/ motor Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33200-SB0-013 Retractable assy.R. HEADLIGHT 00000000 - 0C214737 |
33200-SB0-013 |
US $194.56 |
||
|
1
|
1
33200-SB0-023
Retractable assy.
0C214738 - |
33200-SB0-023 |
— | ||
|
2
|
2
33201-SB0-003
Rod
|
33201-SB0-003 |
— | ||
|
3
|
3
33202-SB0-003
Bush b
|
33202-SB0-003 |
— | ||
|
4
|
4
33203-SB0-003
Pin a
|
33203-SB0-003 |
— | ||
|
5
|
5
33204-SB0-003
Washer
|
33204-SB0-003 |
— | ||
|
6
|
6
33205-SB0-003
Bush a
|
33205-SB0-003 |
— | ||
|
7
|
7
33210-SB0-003
Motor assy.
00000000 - 0C300000 |
33210-SB0-003 |
— | ||
|
8
|
8
33212-SB0-003
Link unit a
|
33212-SB0-003 |
— | ||
|
9
|
9
33213-SB0-013 JointOUTER |
33213-SB0-013 |
US $4.76 |
||
|
10
|
10
33214-SB0-003
Cap
|
33214-SB0-003 |
— | ||
|
11
|
11
33216-SB0-003 HolderCOUPLER 00000000 - 0C300000 |
33216-SB0-003 |
US $4.76 |
||
|
12
|
12
33250-SB0-013 Retractable assy.L. HEADLIGHT 00000000 - 0C214737 |
33250-SB0-013 |
US $202.24 |
||
|
12
|
12
33250-SB0-023
Retractable assy.
0C214738 - |
33250-SB0-023 |
— | ||
|
13
|
13
33251-SB0-003
Rod
|
33251-SB0-003 |
— | ||
|
14
|
14
33260-SB0-003
Motor assy.
00000000 - 0C300000 |
33260-SB0-003 |
— | ||
|
15
|
15
38413-671-003
Seal
|
38413-671-003 |
— | ||
|
16
|
16
90305-SB0-000
Nut
|
90305-SB0-000 |
— | ||
|
17
|
17
90449-SB0-003
Washer
|
90449-SB0-003 |
— | ||
|
18
|
18
90499-SB0-000 Stopper a |
90499-SB0-000 |
US $4.68 |
||
|
19
|
19
90500-SB0-000
Stopper b
|
90500-SB0-000 |
— | ||
|
20
|
20
91501-SB0-003
E-ring
|
91501-SB0-003 |
— | ||
|
21
|
21
92300-04016-0A BoltRECESSED, 4X16 |
92300-04016-0A |
US $0.44 |
||
|
22
|
22
93484-080-160-8 Bolt-washer8X16 |
93484-080-160-8 |
US $0.59 |
||
|
23
|
23
93494-060-100-8 Bolt-washer6X10 |
93494-060-100-8 |
US $0.52 |
||
|
24
|
24
93892-040-080-8 Screw-washer4X8 00000000 - 0C300000 |
93892-040-080-8 |
from US $0.49 |
||
|
25
|
25
33217-SB0-003
Nut-washer
|
33217-SB0-003 |
— | ||
|
26
|
26
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
