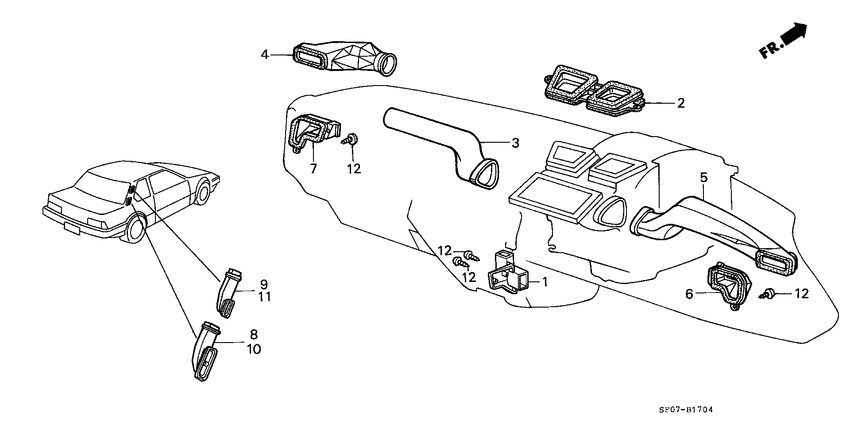

Heater duct Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39551-SB0-672
Joint
|
39551-SB0-672 |
— | ||
|
2
|
2
64460-SB0-000
Duct assy
|
64460-SB0-000 |
— | ||
|
3
|
3
64481-SB0-670
Duct
|
64481-SB0-670 |
— | ||
|
4
|
4
64482-SB0-670
Duct
|
64482-SB0-670 |
— | ||
|
5
|
5
64483-SB0-670
Duct
|
64483-SB0-670 |
— | ||
|
6
|
6
64484-SB0-000
Duct
|
64484-SB0-000 |
— | ||
|
7
|
7
64489-SB0-000
Duct
|
64489-SB0-000 |
— | ||
|
8
|
8
70391-SB0-000
Duct
|
70391-SB0-000 |
— | ||
|
9
|
9
70393-SB0-000
Duct
|
70393-SB0-000 |
— | ||
|
10
|
10
70396-SB0-000
Duct
|
70396-SB0-000 |
— | ||
|
11
|
11
70398-SB0-000
Duct
|
70398-SB0-000 |
— | ||
|
12
|
12
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
12
|
12
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
