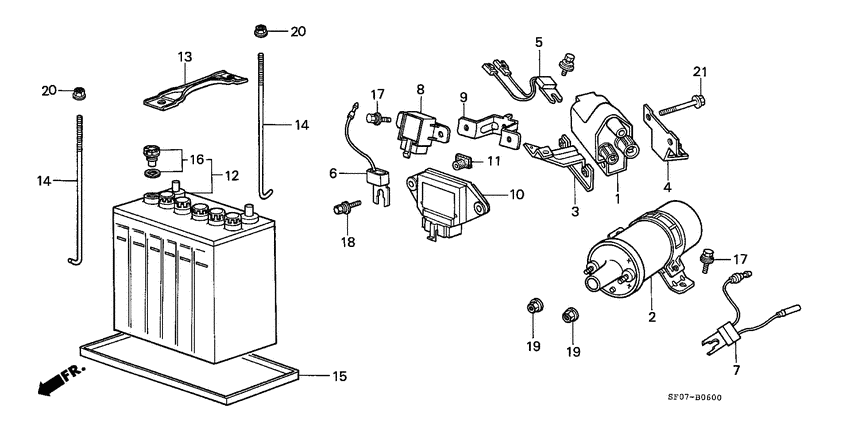

Ignition coil/battery/ regulator Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
30500-SB0-013
Coil assy
|
30500-SB0-013 |
— | ||
|
6
|
6
30510-SA0-672
Condenser comp.
|
30510-SA0-672 |
— | ||
|
7
|
7
30510-SA0-682 Condenser comp.IGNITION (PANASONIC) |
30510-SA0-682 |
US $14.72 |
||
|
9
|
9
30551-SB0-600
Bracket
|
30551-SB0-600 |
— | ||
|
10
|
10
31400-SB0-004
Regulator assy
|
31400-SB0-004 |
— | ||
|
11
|
11
31401-659-003
Rubber
|
31401-659-003 |
— | ||
|
12
|
12
31500-SA5-666
Battery assy
|
31500-SA5-666 |
— | ||
|
12
|
12
31500-SA5-665
Battery assy
|
31500-SA5-665 |
— | ||
|
12
|
12
31500-SA5-667
Battery assy
|
31500-SA5-667 |
— | ||
|
13
|
13
31512-SB0-672
Plate
|
31512-SB0-672 |
— | ||
|
14
|
14
31513-SB2-000 BoltBATTERY SETTING |
31513-SB2-000 |
from US $3.11 |
||
|
15
|
15
31521-SA5-660
Box assy
|
31521-SA5-660 |
— | ||
|
16
|
16
31542-SA5-663
Plug
|
31542-SA5-663 |
— | ||
|
16
|
16
31542-SA5-662
Plug
|
31542-SA5-662 |
— | ||
|
16
|
16
31542-SA5-664 PlugVENT (MF) (YUASA) |
31542-SA5-664 |
US $2.59 |
||
|
17
|
17
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
17
|
17
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
18
|
18
93492-060-160-8 Bolt-washer6X16 |
93492-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
18
|
18
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
19
|
19
94001-050-800-S NutHEX., 5MM |
94001-050-800-S |
from US $0.37 |
||
|
20
|
20
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
