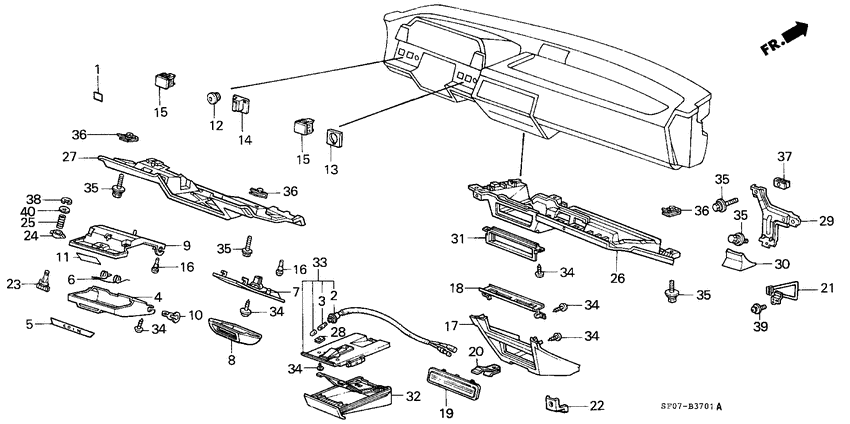

Instrument garnish Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17679-SB0-831
Label
00000000 - 0C300000 |
17679-SB0-831 |
— | ||
|
2
|
2
34267-693-003
Socket
|
34267-693-003 |
— | ||
|
3
|
3
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
4
|
4
66160-SB0-671ZA Pocket assyCOIN *B32L* 00000000 - 0C300000 |
66160-SB0-671ZA |
US $31.23 |
||
|
6
|
6
66169-SB0-000
Spring
|
66169-SB0-000 |
— | ||
|
7
|
7
66180-SB0-670ZB CoverDRIVER LOWER *B32L* 00000000 - 0C300000 |
66180-SB0-670ZB |
US $16.64 |
||
|
9
|
9
66185-SB0-671ZA LidFUSE BOX *B32L* 00000000 - 0C300000 |
66185-SB0-671ZA |
US $31.23 |
||
|
10
|
10
66187-SB0-000
Bush
|
66187-SB0-000 |
— | ||
|
11
|
11
66188-SB0-010
Label
|
66188-SB0-010 |
— | ||
|
12
|
12
66214-538-911 GrommetSWITCH HOLE |
66214-538-911 |
from US $1.89 |
||
|
13
|
13
66217-SB0-000ZA
Protector
|
66217-SB0-000ZA |
— | ||
|
14
|
14
66234-SB0-000
Panel
|
66234-SB0-000 |
— | ||
|
15
|
15
66241-SB0-000ZA
Lid
|
66241-SB0-000ZA |
— | ||
|
16
|
16
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
17
|
17
66810-SB0-671ZA Panel assy.CENTER LOWER *B32L* |
66810-SB0-671ZA |
US $61.31 |
||
|
18
|
18
66812-SB0-671
Stay
|
66812-SB0-671 |
— | ||
|
21
|
21
66846-SB0-671 PipeINSTRUMENT PANEL ASSIST |
66846-SB0-671 |
US $13.58 |
||
|
22
|
22
66849-SA5-610 BracketRADIO |
66849-SA5-610 |
US $5.04 |
||
|
23
|
23
66855-SA0-660ZA
Knob
00000000 - 0C400000 |
66855-SA0-660ZA |
— | ||
|
24
|
24
66856-SA0-660
Lock
|
66856-SA0-660 |
— | ||
|
25
|
25
66857-SA0-660
Spring
|
66857-SA0-660 |
— | ||
|
26
|
26
66870-SB0-671ZA PanelINSTRUMENT ASSIST LOWER *B32L* 00000000 - 0C300000 |
66870-SB0-671ZA |
US $221.44 |
||
|
27
|
27
66871-SB0-670ZA PanelINSTRUMENT DRIVER LOWER *B32L* 00000000 - 0C300000 |
66871-SB0-670ZA |
US $181.76 |
||
|
28
|
28
66871-611-000 NutCENTER PANEL |
66871-611-000 |
from US $1.78 |
||
|
29
|
29
66872-SB0-670
Stay
|
66872-SB0-670 |
— | ||
|
30
|
30
66873-SB0-000ZA CoverINSTRUMENT PANEL LOWER STAY *B32L* 00000000 - 0C300000 |
66873-SB0-000ZA |
US $5.32 |
||
|
31
|
31
66877-SB0-670
Frame
|
66877-SB0-670 |
— | ||
|
32
|
32
88010-SB0-000ZA Ashtray comp.FR. *B32L* |
88010-SB0-000ZA |
US $42.11 |
||
|
33
|
33
88011-SB0-010
Holder comp
00000000 - 0C300000 |
88011-SB0-010 |
— | ||
|
34
|
34
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
34
|
34
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
35
|
35
90128-SB0-000 Bolt-washer6X30 |
90128-SB0-000 |
US $2.59 |
||
|
36
|
36
90301-SB0-000
Nut
|
90301-SB0-000 |
— | ||
|
37
|
37
90350-SB0-000 NutCLIP, 6MM |
90350-SB0-000 |
from US $2.55 |
||
|
38
|
38
90601-836-000 E-ring4MM |
90601-836-000 |
from US $0.81 |
||
|
39
|
39
93891-050-200-8 Screw-washer5X20 |
93891-050-200-8 |
from US $0.44 |
||
|
40
|
40
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
