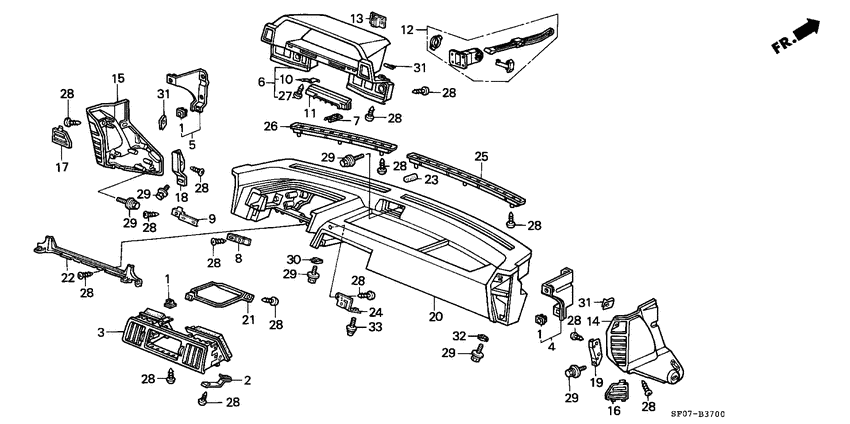

Instrument panel Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62316-679-003 GrommetSCREW, 4MM |
62316-679-003 |
US $2.31 |
||
|
2
|
2
64417-SB0-000
Bracket
|
64417-SB0-000 |
— | ||
|
3
|
3
64490-SB0-000
Outlet assy
|
64490-SB0-000 |
— | ||
|
4
|
4
66140-SB0-010
Bracket
|
66140-SB0-010 |
— | ||
|
5
|
5
66145-SB0-010
Bracket
|
66145-SB0-010 |
— | ||
|
6
|
6
66211-SB0-670ZA
Visor
00000000 - 0C300000 |
66211-SB0-670ZA |
— | ||
|
7
|
7
66212-SB0-670
Bracket a
|
66212-SB0-670 |
— | ||
|
8
|
8
66213-SB0-670
Bracket b
|
66213-SB0-670 |
— | ||
|
9
|
9
66214-SB0-670 Bracket cVISOR LOWER |
66214-SB0-670 |
US $5.74 |
||
|
11
|
11
66221-SB0-680
Blind
|
66221-SB0-680 |
— | ||
|
14
|
14
66813-SB0-010ZA CoverR. SIDE *B32L* 00000000 - 0C300000 |
66813-SB0-010ZA |
US $40.96 |
||
|
15
|
15
66814-SB0-010ZA CoverL. SIDE *B32L* 00000000 - 0C300000 |
66814-SB0-010ZA |
US $40.96 |
||
|
16
|
16
66815-SB0-010ZA LidR. SIDE COVER *B32L* 00000000 - 0C300000 |
66815-SB0-010ZA |
US $7.28 |
||
|
17
|
17
66816-SB0-010ZA LidL. SIDE COVER *B32L* 00000000 - 0C300000 |
66816-SB0-010ZA |
US $7.28 |
||
|
18
|
18
66817-SB0-670
Bracket
|
66817-SB0-670 |
— | ||
|
19
|
19
66818-SB0-670
Bracket
|
66818-SB0-670 |
— | ||
|
20
|
20
66821-SB0-670ZA PadINSTRUMENT PANEL UPPER *B32L* |
66821-SB0-670ZA |
US $576 |
||
|
21
|
21
66826-SB0-670
Cover
|
66826-SB0-670 |
— | ||
|
22
|
22
66827-SB0-000 FrameINSTRUMENT UPPER PAD 00000000 - 0C300000 |
66827-SB0-000 |
US $81.28 |
||
|
23
|
23
66844-611-000
Cap
|
66844-611-000 |
— | ||
|
24
|
24
66847-SB0-671
Stay
|
66847-SB0-671 |
— | ||
|
25
|
25
66893-SB0-000ZA GarnishR. DEFROSTER *B32L* 00000000 - 0C300000 |
66893-SB0-000ZA |
US $25.86 |
||
|
26
|
26
66898-SB0-000ZA GarnishL. DEFROSTER *B32L* 00000000 - 0C300000 |
66898-SB0-000ZA |
US $25.86 |
||
|
27
|
27
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
27
|
27
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
28
|
28
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
28
|
28
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
29
|
29
90128-SB0-000 Bolt-washer6X30 |
90128-SB0-000 |
US $2.59 |
||
|
30
|
30
90301-SB0-000
Nut
|
90301-SB0-000 |
— | ||
|
31
|
31
90305-SA0-000 NutFLOATING, 4MM |
90305-SA0-000 |
from US $3.56 |
||
|
32
|
32
90350-SB0-000 NutCLIP, 6MM |
90350-SB0-000 |
from US $2.55 |
||
|
33
|
33
93893-050-200-8 Screw-washer5X20 |
93893-050-200-8 |
from US $0.52 |
||
