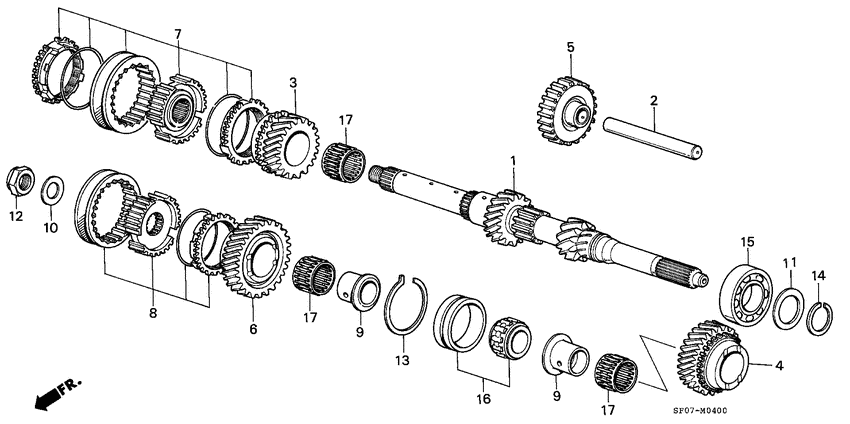

Mainshaft/mainshaft gears Diagram Honda PRELUDE
- Year
- 1985
- Model code
- PRELUDE
- Sales region
- General
- Engine
- ET2
- transmission
- 5MT
- Number of doors
- 2
- grade
- DX
- power steering
- +
- area code
- KX
- catalyst
- +
- sunroof (glass)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-PC8-961 Mainshaft3340001 - 3900000 |
23211-PC8-961 |
US $349.44 |
||
|
2
|
2
23261-PC8-000
Shaft
|
23261-PC8-000 |
— | ||
|
3
|
3
23441-PC8-910
Gear
3340001 - 3900000 |
23441-PC8-910 |
— | ||
|
4
|
4
23451-PC8-000
Gear
3340001 - 3900000 |
23451-PC8-000 |
— | ||
|
5
|
5
23540-PC8-000 GearREVERSE IDLE 3340001 - 3900000 |
23540-PC8-000 |
US $98.56 |
||
|
6
|
6
23581-PC8-960
Gear
3340001 - 3900000 |
23581-PC8-960 |
— | ||
|
7
|
7
23623-PC8-315
Sleeve set
3340001 - 3900000 |
23623-PC8-315 |
— | ||
|
8
|
8
23626-PC8-961
Sleeve set
3340001 - 3900000 |
23626-PC8-961 |
— | ||
|
9
|
9
23915-689-000
Spacer
|
23915-689-000 |
— | ||
|
10
|
10
23926-PB6-000 WasherSPRING, 22MM |
23926-PB6-000 |
US $11.97 |
||
| replacement | |||||
|
10
|
10
23926-PB6-010 WasherSPRING, 22MM |
23926-PB6-010 |
from US $5.62 |
||
|
11
|
11
23932-PC8-000
Spacer b
|
23932-PC8-000 |
— | ||
|
11
|
11
23934-PC8-000
Spacer d
|
23934-PC8-000 |
— | ||
|
11
|
11
23931-PC8-000
Spacer a
|
23931-PC8-000 |
— | ||
|
11
|
11
23933-PC8-000
Spacer c
|
23933-PC8-000 |
— | ||
|
11
|
11
23935-PC8-000
Spacer e
|
23935-PC8-000 |
— | ||
|
12
|
12
90201-PB6-000 NutFLANGE, 22MM |
90201-PB6-000 |
from US $10.22 |
||
| replacement | |||||
|
12
|
12
90201-PB6-020 NutFLANGE, 22MM |
90201-PB6-020 |
from US $6.16 |
||
|
13
|
13
90603-PC8-000 RingSNAP, 52MM 3340001 - 3900000 |
90603-PC8-000 |
US $3.92 |
||
|
14
|
14
90605-PC8-000
Ring
|
90605-PC8-000 |
— | ||
|
15
|
15
91002-PC8-008 BearingBALL, 63/28 3340001 - 3900000 |
91002-PC8-008 |
US $13.44 |
||
|
16
|
16
91103-PC8-018
Bearing
3340001 - 3900000 |
91103-PC8-018 |
— | ||
|
17
|
17
91104-634-008
Bearing
|
91104-634-008 |
— | ||
|
17
|
17
91104-634-006
Bearing
|
91104-634-006 |
— | ||
| replacement | |||||
|
17
|
17
91104-634-008
Bearing
|
91104-634-008 |
— | ||
|
17
|
17
91104-634-004
Bearing
|
91104-634-004 |
— | ||
| replacement | |||||
|
17
|
17
91104-634-008
Bearing
|
91104-634-008 |
— | ||
